Cast iron piston compressor WK550-4-0/270P příkon 3 kW, sací výkon 530 l/min, tlak 10 bar, vzdušník 270 l, napětí 400/50 V/Hz
Code: WK550-4-0/270P
Related products
Product detailed description

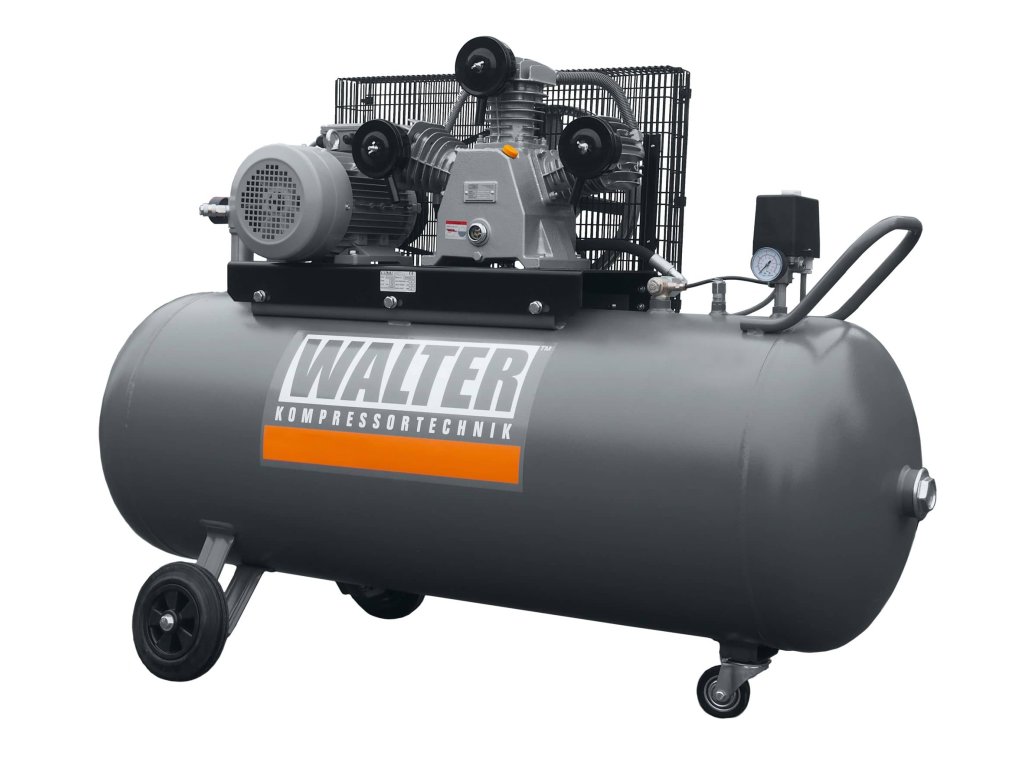

Walter WK550-4,0/270P - Compressor with large air reserve for professional use
The Walter WK550-4.0/270P is a powerful piston compressor with a 270 litre air chamber that provides a large supply of compressed air for long duty cycles. This model is ideal for demanding applications in industry, garages and workshops where a continuous supply of air with minimal pressure fluctuations is required.
🔧 Technical specifications
- Power: 3.0 kW (4 HP)
- Power supply: 400 V (three-phase)
- Suction power: 550 l/min
- Discharge: 440 l/min
- Maximum pressure: 10 bar
- Volume of the airbox: 270 litres (horizontal)
- Number of cylinders/stages: 3/1 (three-cylinder single-stage unit)
- Noise level: ~80 dB(A)
- Weight: ~140 kg
✅ Benefits for customers
🔹 270 litre aerator - allows long working cycle without frequent switching.
🔹 Cast iron three-cylinder aggregate - high durability and long service life.
🔹 Low speed (~1200 rpm) - reduced wear, quieter operation and higher reliability.
🔹 Three-phase power supply (400 V) - stable performance even under long-term load.
🔹 Mobile design - sturdy wheels and handle allow easy handling.
🚀 Modernization and innovation
The new generation of the WK 550 piston unit delivers greater efficiency, reliability and longer life thanks to the following innovations:
✅ More precise production of components - lower oil consumption, better piston tightness.
✅ Improved suction filter with metal insert - higher filtration efficiency, longer service intervals.
✅ Reinforced piston rings and valves - more reliable performance in long-term operation.
✅ Steel filter cover - better protection against mechanical damage and higher heat resistance.
🏭 Ideal use
The Walter WK550-4,0/270P is designed for plants where a large air supply and stable pressure are required for long-term use.
✔ Garages and tire shops - ideal for tire tightening, tire inflation and painting.
✔ Craft workshops and industrial plants - stable air supply for various working tasks.
✔ Painting and sandblasting - large air supply allows constant pressure for longer periods of time.
✔ Production lines and engineering - efficient air source for pneumatic tools and machines.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 550 l/min |
| Displacement: | 440 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN7.2, Ball valve 1/2" |
| Motor power: | 3.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,202 rpm |
| Number of cylinders: | 3 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 80dB(A) |
| Dimensions: | 1650 x 660 x 1120 mm |
| Weight: | 132 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
