Adsorption air dryer BDRY-400
Code: BDRY-400
Related products
Product detailed description

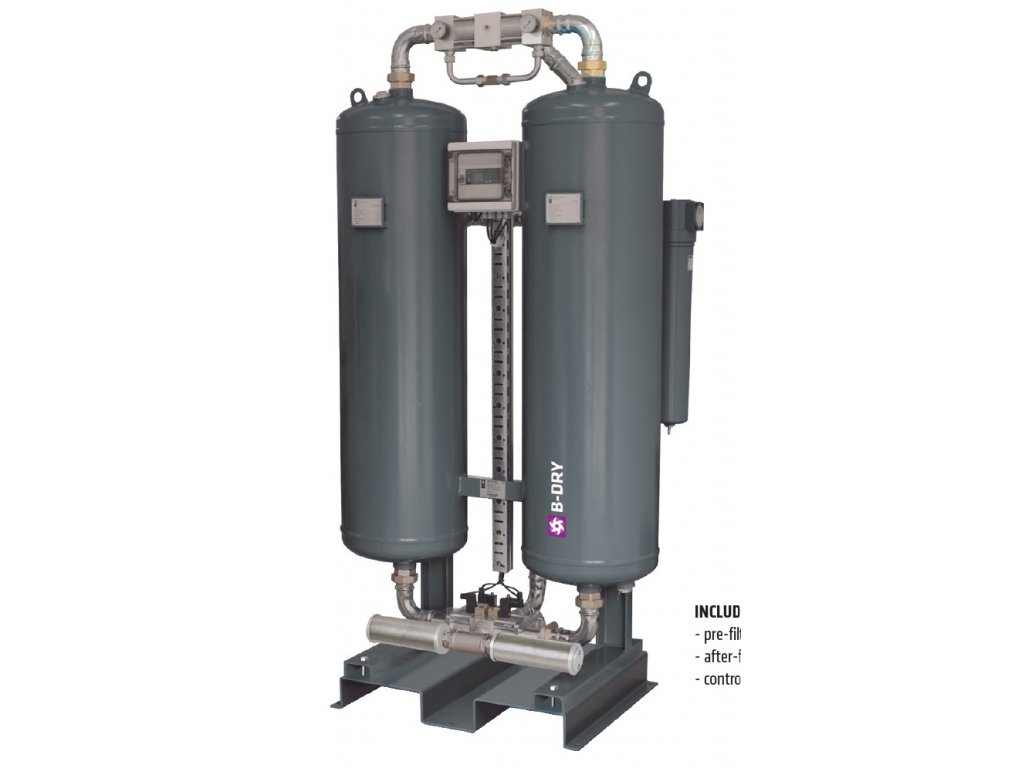

BDRY-400 Compressed Air Compressor Adsorption Dryer
- adsorption dryers for perfect removal of moisture from compressed air
- pressure dew point -40 °C as standard, also available with dew point -70 °C on request
- operation control by SIEMENS control unit, optionally with control system with dew point control
- bDRY dryers are supplied with an inlet microfilter and an outlet dust filter
- designed for industrial plants with high air quality requirements
- important note: adsorption dryers require up to 20% of the air supply to operate
- note: dryers are equipped with webserver access
- reference conditions for flow measurement: temperature +20 °C, inlet air +35 °C, working pressure 7 bar, dew point -40 °C. For conditions other than the reference, a correction factor must be used for the calculation - please contact our company.
Additional parameters
| Category: | Compressed Air Moisture Removal Air Dryers |
|---|---|
| Pressure: | 16 bar |
| Connecting: | 1 1/2" |
| Mains voltage: | 230/50 V/Hz |

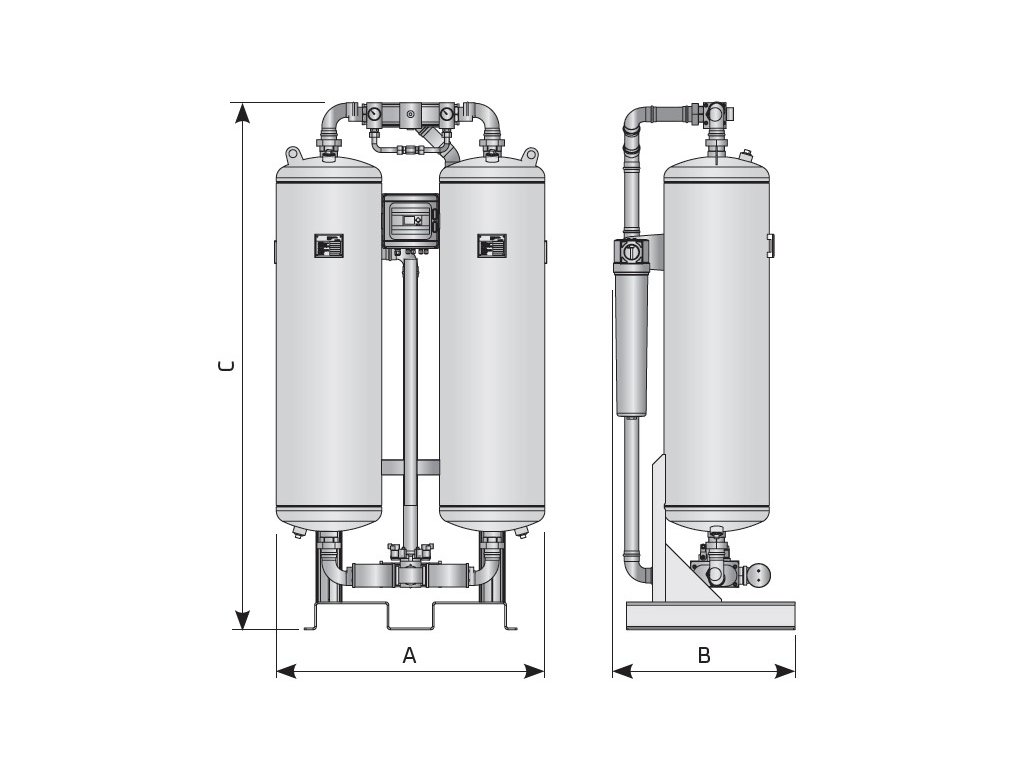

| Dimensions: | 900 x 530 x 1870 mm |
| Flow: | 5,358 l/min |
| Equipment:: | Siemens control unit, Filtration |
| Pressure dew point: | -70°C, -40 °C, -25 °C |
| Dryer type: | Adsorption dryer |
