Product detailed description

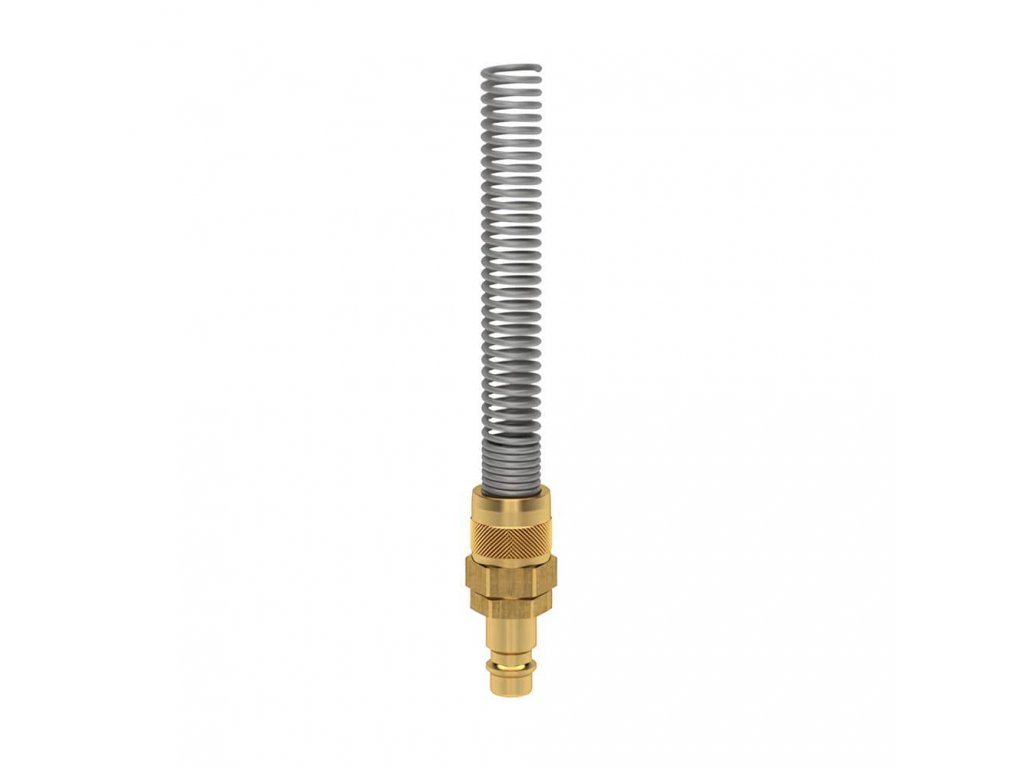

Socket for quick couplings ES DN7,2 with hose coupling nut and spring - ES8SQF
- universal quick couplings in one-sided closable design
- materials used:
- body, locking ring, valve body, valve: brass MS 58
- springs, spacer ring: stainless steel 1.4310
- pins: stainless steel 1.4305
- seal: NBR
- nipple: brass MS 58
- designed for compressed air in industry and crafts, can be used for water and other media
Additional parameters
Category: | Nipple with spring-loaded nut for ES quick couplings |
---|---|
Pressure: | 35 bar |
DN: | 7,2 |
Material: | Brass |
Medium: | Air |
For the hose: | 8 x 10 mm |
Temperature: | -20/+100°C |
Thorn on the hose: | 8 mm |

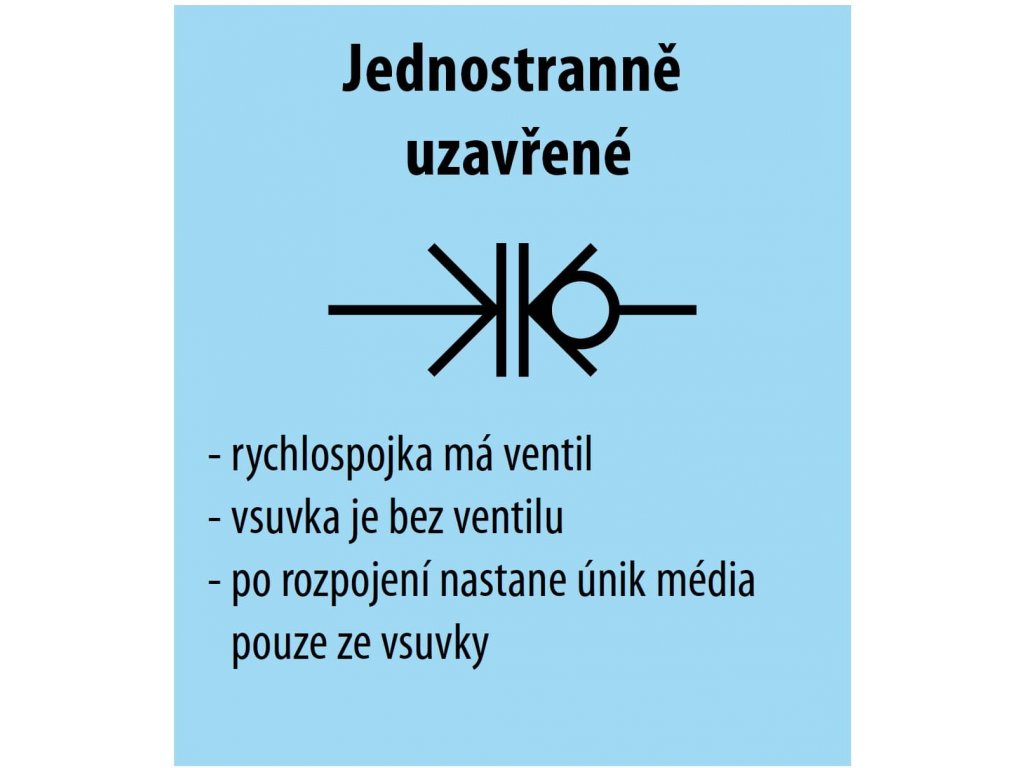

Closure: | One-sided closed |
Safety ring: | No |
Clutch profile: | EC (DN7.2) |
Male / female: | Pacifier |
Connection system: | Quick couplings |
