    Nipple with spring-loaded nut for ES quick couplings

    Vsuvka s ochrannou pružinou pro rychlospojky ES DN7,2
    • universal quick couplings in one-sided closable design
    • materials used:
    • body, locking ring, valve body, valve: brass MS 58
    • springs, spacer ring: stainless steel 1.4310
    • pins: stainless steel 1.4305
    • seal: NBR
    • nipple: brass MS 58
    • designed for compressed air in industry and crafts, can be used for water and other media

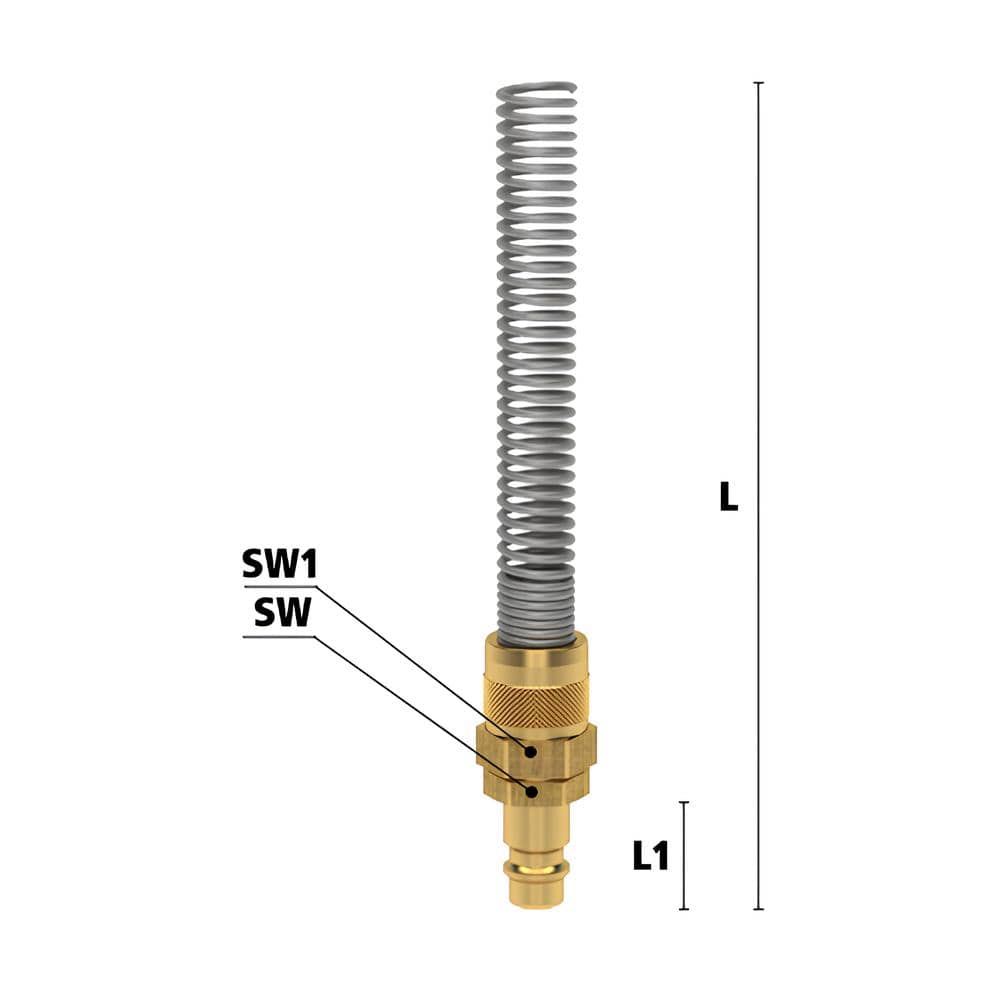

    Nipple with overflow nut and protection spring for quick couplings ES DN 7,2
    Order
    number    		 For hose
    mm    		 SW
    mm    		 Length
    mm    		 Clutch length
    mm    		 Material
    bodies    		 Weight
    g
    ES4SQF 4 x 6 mm 17 115 20 MS 58 30
    ES58SQF 5 x 8 mm 17 115 20 MS 58 31
    ES6SQF 6 x 8 mm 17 115 20 MS 58 31
    ES6510SQF 6.5 x 10 mm 17 132 20 MS 58 37
    ES8SQF 8 x 10 mm 17 132 20 MS 58 37
    ES812SQF 8 x 12 mm 17 132 20 MS 58 37
    ES9SQF 9 x 12 mm 17 132 20 MS 58 37
