Three-way tap 86TTT - DN 25, drilling L
Code: 86TTT-40L-025DAProduct detailed description

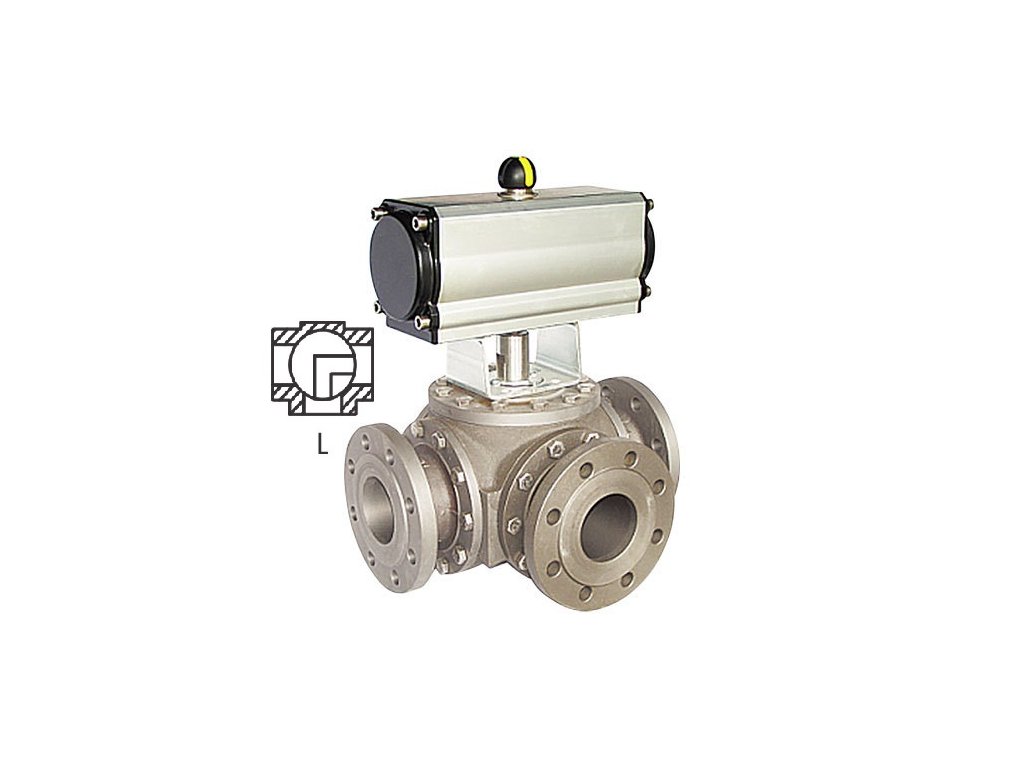

Three-way stopcock 86TTT-40L-025DA
- three-way flanged ball valve Pekoss 86TTT and double-acting pneumatic actuator OMAL type DA
- pTFE seal for temperatures up to 180°C
- variants with ball drilling L
- actuator operating pressure of at least 5.5 bar
- for sealing of pipelines in contact with aggressive media in industry
Additional parameters
| Category: | Three-way taps stainless steel 86TTT, with DA pneumatic actuator |
|---|---|
| Pressure: | 40 bar |
| Connecting: | Flange |
| Material: | Stainless steel |
| Medium: | Air, Water, Aggressive media |
| Standard: | 94/9/EC, BS 6364, EN 1092, Ex II 2 G D, GOST-R, ISO 5211, ISO 7005, TUV AR.263-01 |
| Brightness DN: | 25 |
| Seals: | PTFE |
| Drive type: | Double acting DA60 |
| Drilling a ball: | L |
| Controls: | Pneumatic drive |
| Design of fittings: | Automated, Intermediate flanges, Three-part, Three-way |
