    Three-way taps stainless steel 86TTT, with DA pneumatic actuator

    three-way valve design with pneumatic actuator

    • three-way flanged ball valve Pekoss 86TTT and pneumatic actuator OMAL type DA
    • pTFE seal for temperatures up to 180°C
    • variants with ball drilling "L" and "T"
    • actuator operating pressure of at least 5.5 bar
    • for sealing of pipelines in contact with aggressive media, especially in the chemical and food industry

    86TTT ball valves with "L" ball bore and DA double acting pneumatic actuator
    Order no. Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drilling
    ball    		 Drive
    double acting
    86TTT-40L-025DA 25 40 up to +180°C stainless steel 1.4408 PTFE L DA60
    86TTT-40L-040DA 40 40 up to +180°C stainless steel 1.4408 PTFE L DA120
    86TTT-40L-050DA 50 40 up to +180°C stainless steel 1.4408 PTFE L DA180
    86TTT-40L-065DA 65 40 up to +180°C stainless steel 1.4408 PTFE L DA360
    86TTT-40L-080DA 80 40 up to +180°C stainless steel 1.4408 PTFE L DA480
    86TTT-16L-100DA 100 16 up to +180°C stainless steel 1.4408 PTFE L DA720
    86TTT-16L-150DA 150 16 up to +180°C stainless steel 1.4408 PTFE L DA1440
    86TTT-16L-200DA 200 16 up to +180°C stainless steel 1.4408 PTFE L DA1920
    ¨

    86TTT ball valves with "T" ball bore and DA double acting pneumatic actuator
    Order no. Luminosity
    DN    		 Pressure
    bar    		 Temperature
    °C    		 Body Seals Drilling
    ball    		 Drive
    double acting
    86TTT-40T-025DA 25 40 up to +180°C stainless steel 1.4408 PTFE T DA60
    86TTT-40T-040DA 40 40 up to +180°C stainless steel 1.4408 PTFE T DA120
    86TTT-40T-050DA 50 40 up to +180°C stainless steel 1.4408 PTFE T DA180
    86TTT-40T-065DA 65 40 up to +180°C stainless steel 1.4408 PTFE T DA360
    86TTT-40T-080DA 80 40 up to +180°C stainless steel 1.4408 PTFE T DA480
    86TTT-16T-100DA 100 16 up to +180°C stainless steel 1.4408 PTFE T DA720
    86TTT-16T-150DA 150 16 up to +180°C stainless steel 1.4408 PTFE T DA1440
    86TTT-16T-200DA 200 16 up to +180°C stainless steel 1.4408 PTFE T DA1920

    Bestsellers

    Three-way tap 86TTT - DN 200, T drilling
    685 185 Kč –100 %
    Three-way tap 86TTT - DN 200, T drilling
    up to 14 days
    Code: 86TTT-16T-200DA
    Was: 685 185 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way tap 86TTT - DN 150, T drilling
    409 830 Kč –100 %
    Three-way tap 86TTT - DN 150, T drilling
    up to 14 days
    Code: 86TTT-16T-150DA
    Was: 409 830 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way tap 86TTT - DN 100, T bore
    254 283 Kč –100 %
    Three-way tap 86TTT - DN 100, T bore
    up to 14 days
    Code: 86TTT-16T-100DA
    Was: 254 283 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way tap 86TTT - DN 80, drilling T
    189 706 Kč –100 %
    Three-way tap 86TTT - DN 80, drilling T
    up to 14 days
    Code: 86TTT-40T-080DA
    Was: 189 706 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way cock 86TTT - DN 65, drilling T
    128 086 Kč –100 %
    Three-way cock 86TTT - DN 65, drilling T
    up to 14 days
    Code: 86TTT-16T-065DA
    Was: 128 086 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way cock 86TTT - DN 50, drilling T
    91 486 Kč –100 %
    Three-way cock 86TTT - DN 50, drilling T
    up to 14 days
    Code: 86TTT-40T-050DA
    Was: 91 486 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way tap 86TTT - DN 40, drilling T
    74 928 Kč –100 %
    Three-way tap 86TTT - DN 40, drilling T
    up to 14 days
    Code: 86TTT-40T-040DA
    Was: 74 928 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way tap 86TTT - DN 25, drilling T
    54 812 Kč –100 %
    Three-way tap 86TTT - DN 25, drilling T
    up to 14 days
    Code: 86TTT-40T-025DA
    Was: 54 812 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way tap 86TTT - DN 200, drilling L
    685 185 Kč –100 %
    Three-way tap 86TTT - DN 200, drilling L
    up to 14 days
    Code: 86TTT-16L-200DA
    Was: 685 185 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Three-way tap 86TTT - DN 150, drilling L
    409 830 Kč –100 %
    Three-way tap 86TTT - DN 150, drilling L
    up to 14 days
    Code: 86TTT-16L-150DA
    Was: 409 830 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Show more products
    2 items total
    Three-way tap 86TTT - DN 25, drilling L
    54 812 Kč –100 %
    Three-way tap 86TTT - DN 25, drilling L
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Three-way stopcock 86TTT with DN25 clearance. Double-acting version with DA60 drive made of stainless steel 1.4408. Designed for pressures of 40 bar and temperatures up to...

    Code: 86TTT-40L-025DA

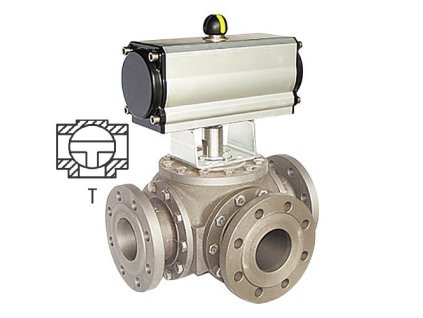

    Three-way tap 86TTT - DN 25, drilling T
