Thermometer aluminum pointer 100 mm (0°C/+80°C) stem 100 mm
Code: TWAL100-80-100Product detailed description
TWAL aluminium thermometer TWAL100-80-100
- We recommend measuring non-aggressive media with WIKA aluminium thermometers
- Rear version of the thermometer is available in 63 and 100 mm diameter
- Specifications - maximum possible measured temperature up to +200°C
- Diameter of the sump 12 mm with 1/2" male thread connection - the sump is included in the thermometers
- The accuracy class of these WIKA aluminium thermometers is 2.0%
- Maximum pressure of the measuring medium can be up to 6 bar
Additional parameters
| Category: | Aluminium thermometers for measuring the temperature of the medium |
|---|---|
| Version: | Thermometer TW |
| Pressure: | 6 bar |
| Connecting: | rear |
| Windscreen: | Acrylic |
| Material: | Aluminium |
| Medium: | Air, Water, Non-aggressive media |
| Measuring member: | Copper |
| Average: | 100 mm |
| Temperature: | 0/+80°C |
| Accuracy class: | 2,0 % |

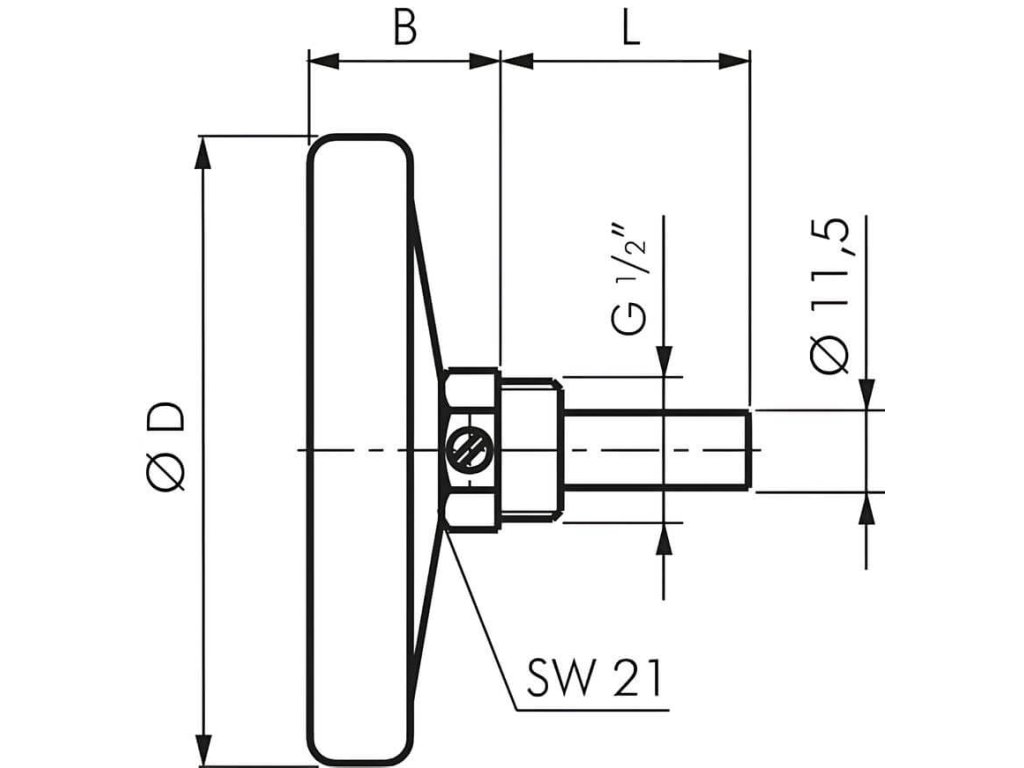

| Thread: | G 1/2" |
| Stem length: | 100 mm |
| The diameter of the well: | 12 mm |
| Stem diameter: | 12 mm |
