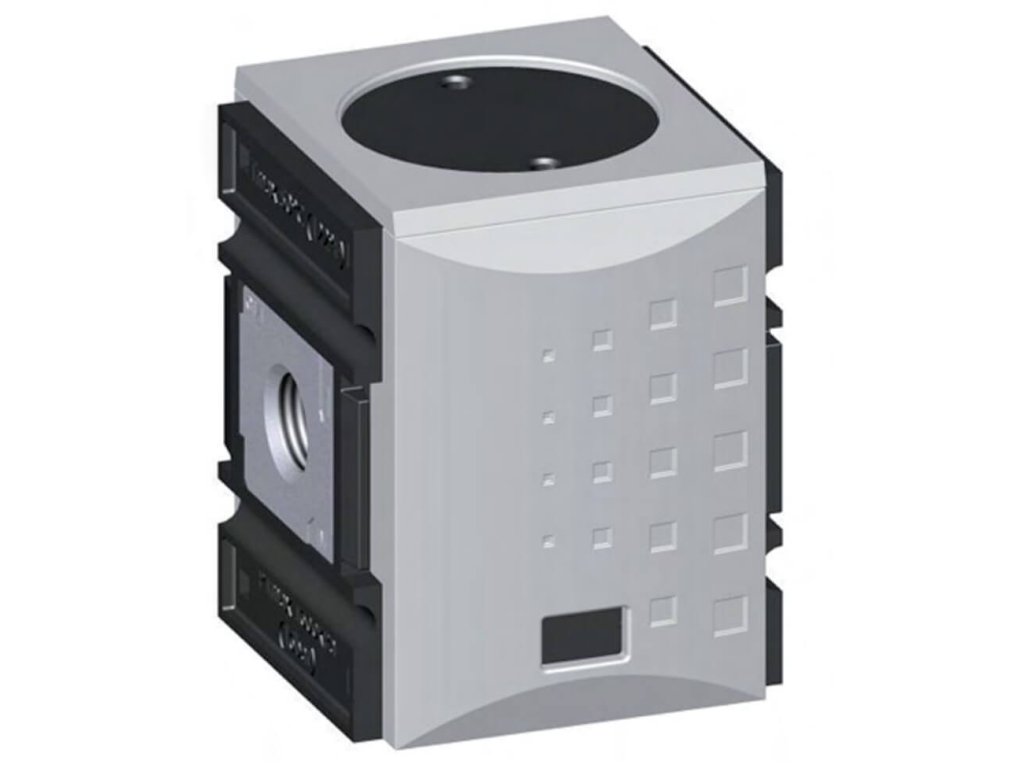

    Pneumatic switching valve - 1/4", 2,000 l/min

    Code: PCL14-F
    Not rated
    2 844 Kč –2 %
    Pneumatic switching valve - 1/4", 2,000 l/min
    2 844 Kč –2 % 2 787 Kč / pcs 2 303 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025

    Switching valve with 230 VAC in 1/4" version with flow rate up to 2,000 l/min FUTURA series up to 16 bar. Designed for compressed air and for neutral gases complying with ATEX II 2G2D. Operating temperature -10°C to +50°C. Materials : body - Grivory (PA66), POM spring, NBR gasket.

    Detailed information

    Related products

    kp
    Original parts
    98 Kč –2 %
    FUTURA standard connection set size 1
    Stock (2 pcs)
    79 Kč excl. VAT
    96 Kč

    Standard connection set for FUTURA size 1 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP1F
    kpw
    Original parts
    162 Kč –1 %
    Connection kit with bracket for wall mounting size 1
    Stock (1 pcs)
    131 Kč excl. VAT
    159 Kč

    Connection set of FUTURA air handling units with wall bracket size 1. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW1F
    w
    Original parts
    328 Kč –2 %
    Fixing bracket with screws FUTURA size 1
    up to 14 days
    265 Kč excl. VAT
    321 Kč

    Fixing bracket with screws under the cover of the FUTURA size 1 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W1F
    Show all related products

    Product detailed description

    Futura Series Compressed Air Switch Valve - PCL14-F

    • Designed for compressed air and neutral gases
    • ATEX II 2G2D version
    • Operating temperature -10°C to +50°C
    • Materials : body - Grivory (PA66), POM spring, NBR seal
    • Maximum compressed air inlet pressure 16 bar

    Additional parameters

    Category: Shut-off and switching valves FUTURA
    Version: Switch valve
    Pressure: 10 bars

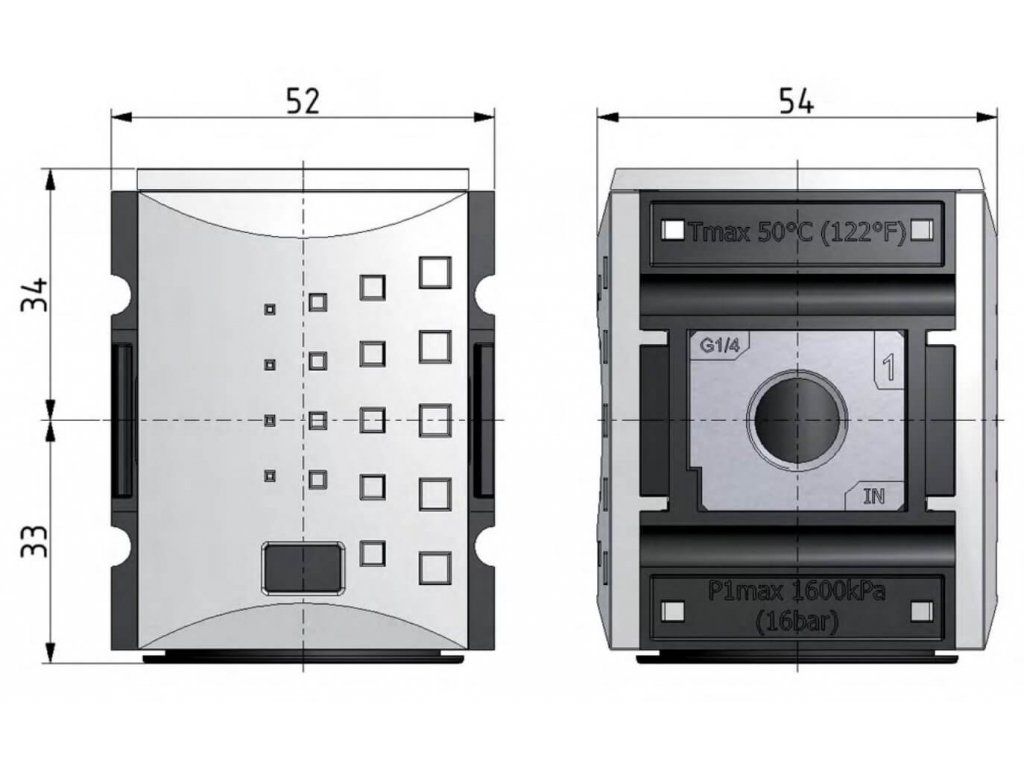

    Dimensions: 70 x 52 mm
    Certification: ATEX II 2G2D
    Medium: Compressed air
    Working temperature: -10 / 50 °C
    Flow: 2000 l/min
    Thread: G 1/4"
