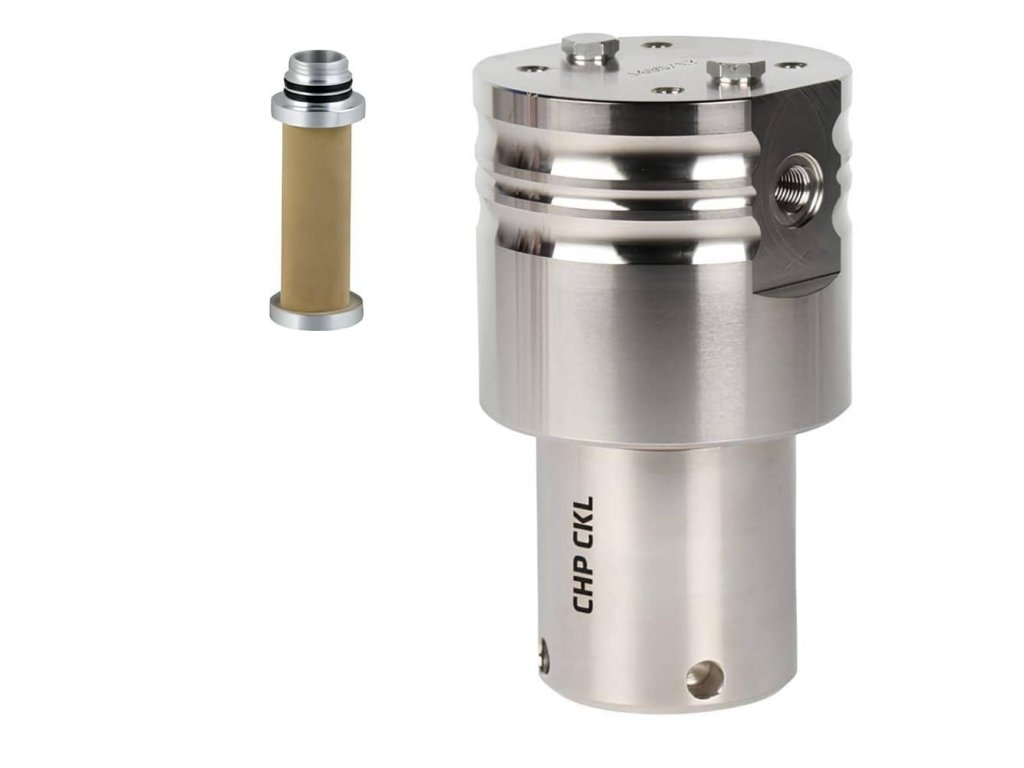

Sintered filter CHP2B G1 1/4"

Sintered filter CHP2B G1 1/4"
85 029 Kč –2 %
85 029 Kč –2 % 83 328 Kč / pcs 68 866 Kč excl. VAT
up to 14 days
Set up a watchdog
We deliver to:
28.04.2025
Delivery offer
Kalkulačka splátek

CHP2B sintered coarse filter with G1 1/4" connection thread designed to effectively remove solid impurities, oil, water and other impurities from compressed air up to 15 um. Maximum working pressure up to 250 bar with flow rates up to 6,333 l/min. Made of nickel-plated carbon steel. Automatic condensate drain must be ordered separately.

Detailed information

Code: CHP2B-030
Brand: OMEGA AIR
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

CHP compressed air coarse filter with 15 um filtration up to 250 bar - CHP2B-030

  • series of filters designed for effective removal of solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
  • nickel-plated carbon steel body, threaded connection with internal pipe threads
  • operating temperature range +1.5 to +65 °C, maximum operating pressure 100 bar
  • filter cartridge replacement intervals - 1 x per year or when the pressure gradient reaches 350 mbar
  • scope of delivery - filter body and filter cartridge, without condensate drain - order separately
  • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us

Technical parameters

Category: Air coarse filters CHP2B up to 250 bar
Version: Coarse filter
Pressure: 250 bar (250 atm, 3 626 PSI, 25 MPa)
Connecting: 1 1/4"
Dimensions: 303 x 119 x 100 mm
Filtration: 15 um
Filter insert: CHPB-030V
Material: Carbon steel
Condensate discharge: Without release
Working temperature: +1.5 / +65°C
Flow: 6 l/min (0,38 m³/h, 0,2236 CFM)
Quality class - solid impurities: 7

Filtrace Omega Air - řada CHP

News Overload

We select articles from our advice room

How to properly select and use a compressor?

Read about how compressors work and what parameters to consider when choosing a compressor for your workshop or operation. Article content: How do compressors work? How to proceed when choosing a compressor? Frequency of compressor use Calcula...

Be the first who will post an article to this item!

5
0x
4
0x
3
0x
2
0x
1
0x
Be the first who will post an article to this item!
Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Alfa and Omega from Slovenia

In the Slovenian capital, Ljubljana, there is a company specialized in compressed air treatment, production of industrial filters and filter inserts, separators or special membrane dryers and other products. Omega Air was founded in 1988 as a family business and soon secured a place in the industry. Over the years, Omega Air's workforce has also grown with increasing production and today the company employs more than 250 people.

stažený soubor
hannover

Omega products are used everywhere

A wide range of applications is typical for Omega Air products. Its products are used in heavy industry as well as by private entities. Slovenia's footprint is thus noticeable in industrial sectors such as electrical, gastronomy, pharmaceuticals, moto and also in the chemical-industrial sector. However, the company's main product is special filters, which are exported all over the world.

No greenhorn in the industry

Omega Air also boasts several proprietary innovations and patents that originate in the development department. The company has also been awarded several times for its innovative solutions at the International Engineering Fair itself, which is traditionally held in Hannover, Germany.

The Omega Air product range is brought to you by our air compressors company below.

What Omega Air produces:

  • special industrial filters
  • filter inserts
  • electronic condensate drains
  • separators
  • dryers (absorption, membrane)
  • activated carbon columns
