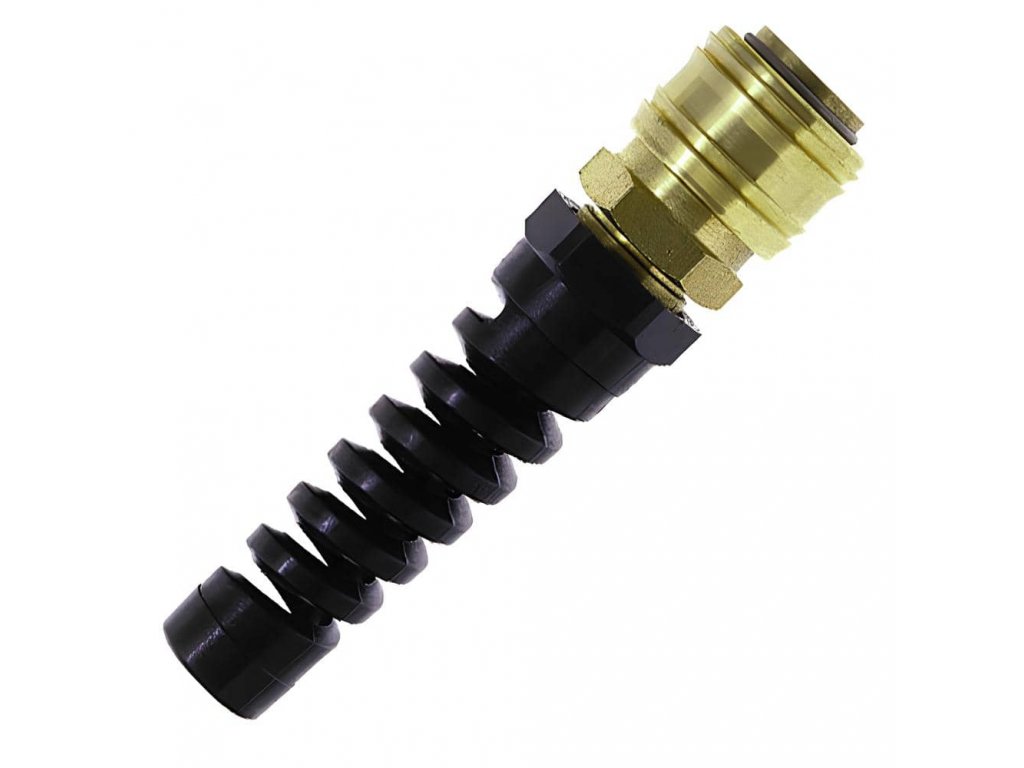

Fixed quick coupling with protective spring ES65SVK
- special series of hose ends made with dimensions exactly for spiral hoses, all ends are disassembled - can be reused
- construction with extreme resistance to pressure and tension, the swivel design is sealed with a double o-ring and seeger lock
- external tapered threads with Loctite seal coating, quick couplings and nipples DN7,2
Technical parameters
| Category: | ES-SVK spring-loaded end caps for spiral hoses |
|---|---|
| Pressure: | 15 bar (15 atm, 218 PSI, 1,5 MPa) |
| DN: | 7,2 |
| Material: | Brass |
| Medium: | Air |
| For the hose: | 6.5 x 10 mm |
| Temperature: | -40/+85°C |
| Thorn on the hose: | 6.5 mm |

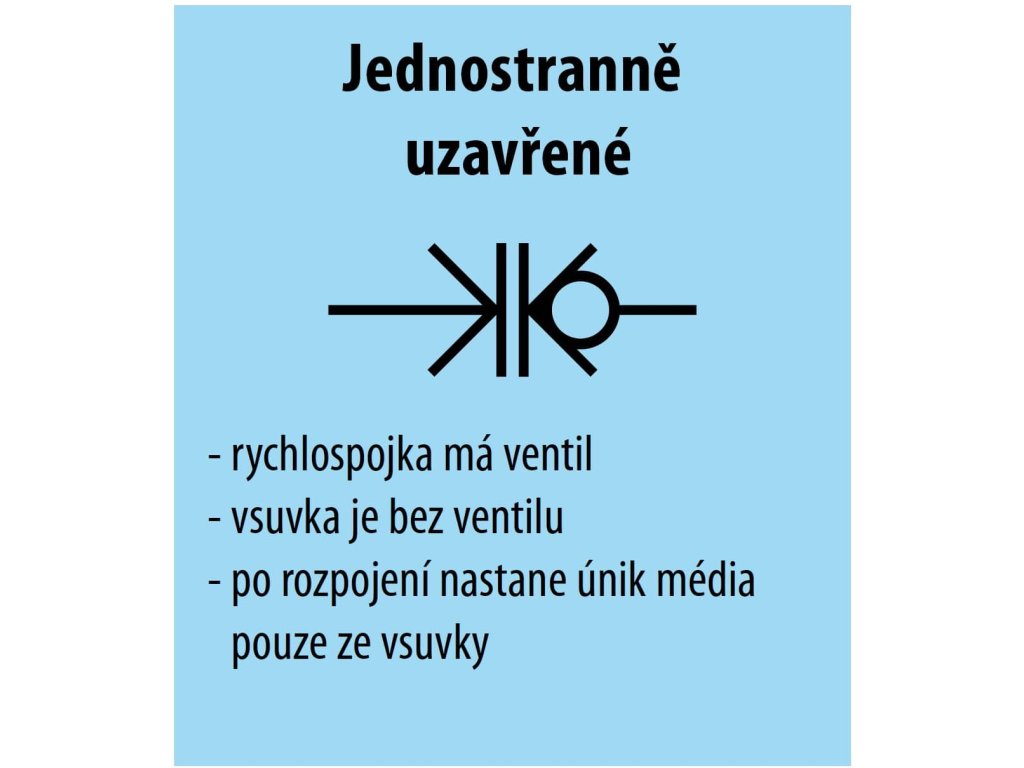

| Closure: | One-sided closed |
| Safety ring: | No |

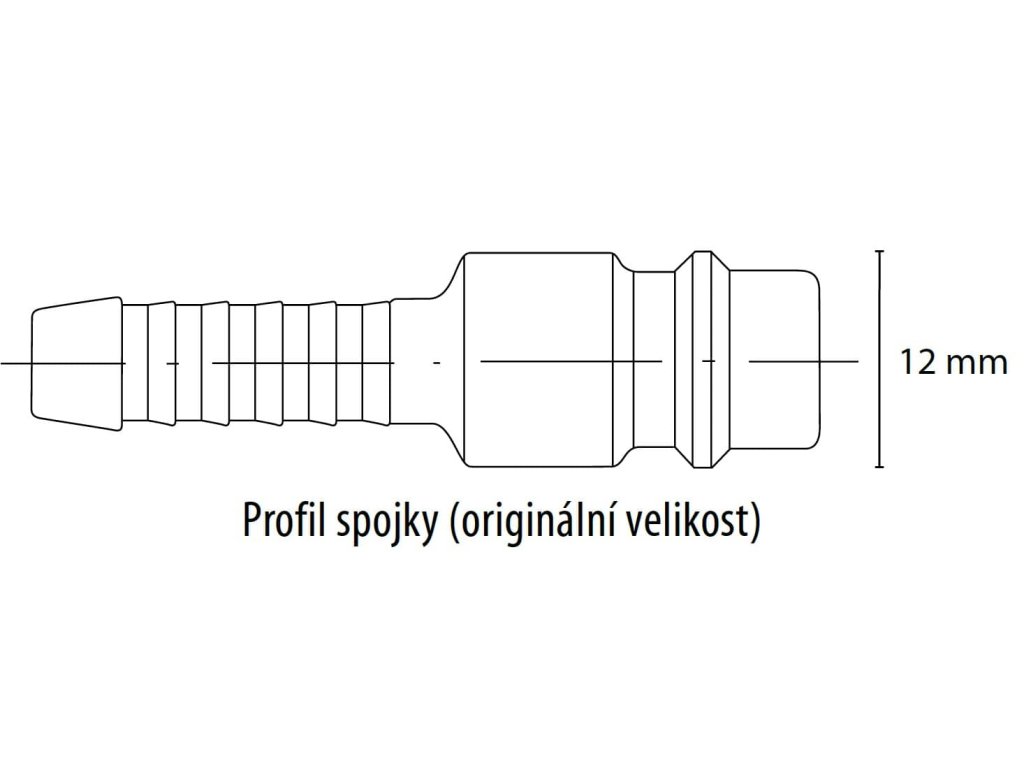

| Clutch profile: | EC (DN7.2) |
| Male / female: | Quick coupler |
| Connection system: | Quick couplings |
