    Swivel quick coupler with protective spring 8 x 12 mm

    Code: ES8DVK
    Tip
    Not rated
    Brand: Lüdecke
    716 Kč –5 %
    Swivel quick coupler with protective spring 8 x 12 mm
    716 Kč –5 % 680 Kč / pcs 562 Kč excl. VAT
    up to 14 days
    Delivery to:
    13.01.2025
    Quick coupling swivel with protective spring 8 x 12 mm, quick coupling DN7,2. Designed for spiral hoses, all hose ends can be disassembled and are reusable. It is characterized by extreme tensile and compressive strength. The swivel design is sealed by a double o-ring and seeger lock

    Detailed information

    Related products

    PU spiral hose without ends 12/8 mm - length 3 m
    419 Kč –10 %
    PU spiral hose without ends 12/8 mm - length 3 m
    up to 30 days
    312 Kč excl. VAT
    377 Kč

    The blue plastic spiral hose 12/8 mm made of polyurethane in 5 m length is characterized by high resistance to breakage, abrasion and pressure. The small diameter of the spiral...

    Code: PUBJ8125
    PU spiral hose without ends 12/8 mm - length 10 m
    692 Kč –9 %
    PU spiral hose without ends 12/8 mm - length 10 m
    Stock (2 pcs)
    515 Kč excl. VAT
    623 Kč

    The blue plastic spiral hose 12/8 mm polyurethane in 10 m length is characterized by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves...

    Code: PUBJ81210
    PU spiral hose without ends 12/8 mm - length 4.5 m
    647 Kč –9 %
    PU spiral hose without ends 12/8 mm - length 4.5 m
    Stock (1 pcs)
    482 Kč excl. VAT
    583 Kč

    The blue plastic spiral hose 12/8 mm made of polyurethane in a length of 7.5 m is characterised by high resistance to breakage, abrasion and pressure. The small diameter of the...

    Code: PUBJ81275
    PU spiral hose without ends 12/8 mm - length 9 m
    1 163 Kč –9 %
    PU spiral hose without ends 12/8 mm - length 9 m
    Stock (36 pcs)
    865 Kč excl. VAT
    1 047 Kč

    The blue plastic spiral hose 12/8 mm polyurethane, 15 m long, is characterized by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves...

    Code: PUBJ81215
    PUBM spiral hose without ends 12/8 mm - length 3 m
    1 503 Kč –4 %
    PUBM spiral hose without ends 12/8 mm - length 3 m
    Stock (3 pcs)
    1 180 Kč excl. VAT
    1 428 Kč

    High quality blue spiral hose 12/8 mm with extreme spiral return capability of 5 m and long life. Made of branded granulate elastollan 1190 without end quick connectors....

    Code: PUBM8125
    PUBM spiral hose without ends 12/8 mm - length 13 mm
    3 626 Kč –4 %
    PUBM spiral hose without ends 12/8 mm - length 13 mm
    Stock (2 pcs)
    2 847 Kč excl. VAT
    3 445 Kč

    High quality blue spiral hose 12/8 mm with extreme spiral return capability of 15 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM81215
    PUBM spiral hose without ends 12/8 mm - length 2 m
    946 Kč –5 %
    PUBM spiral hose without ends 12/8 mm - length 2 m
    Stock (5 pcs)
    742 Kč excl. VAT
    898 Kč

    High-quality blue spiral hose 12/8 mm with extreme spiral return capability of 2.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM81225
    PUBM spiral hose without ends 12/8 mm - length 6 m
    2 069 Kč –5 %
    PUBM spiral hose without ends 12/8 mm - length 6 m
    Stock (1 pcs)
    1 624 Kč excl. VAT
    1 965 Kč

    High quality blue spiral hose 12/8 mm with extreme spiral return capability of 7.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM81275
    PUBM spiral hose without ends 12/8 mm - length 8 m
    2 549 Kč –4 %
    PUBM spiral hose without ends 12/8 mm - length 8 m
    Stock (3 pcs)
    2 002 Kč excl. VAT
    2 422 Kč

    High quality blue spiral hose 12/8 mm with extreme spiral return capability of 10 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM81210
    PUBM spiral hose without ends 12/8 mm - length 10 m
    3 064 Kč –4 %
    PUBM spiral hose without ends 12/8 mm - length 10 m
    Stock (1 pcs)
    2 406 Kč excl. VAT
    2 911 Kč

    High quality blue spiral hose 12/8 mm with extreme spiral return capability of 12.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM812125
    Polyurethane tube blue 12/8 mm
    Tip
    129 Kč –10 %
    Polyurethane tube blue 12/8 mm
    Stock (>1000 m)
    96 Kč excl. VAT
    116 Kč

    PUJ polyurethane tubing in blue 12/8 mm suitable especially for mechanically stressed lines, excellent flexibility. High resistance to oxygen, ozone, vibration and aging. Use...

    Code: PUJ128B
    Rotating nipple with protective spring 8 x 12 mm
    Tip
    566 Kč –5 %
    Rotating nipple with protective spring 8 x 12 mm
    Stock (3 pcs)
    444 Kč excl. VAT
    537 Kč

    Quick coupling nipple swivel with protective spring for hose 8 x 12 mm in DN7.2. Designed for spiral hoses. All end caps can be disassembled and are reusable. It is...

    Code: ES8SDVK
    Fixed teat with protective spring 8 x 12 mm
    Tip
    481 Kč –4 %
    Fixed teat with protective spring 8 x 12 mm
    Stock (1 pcs)
    378 Kč excl. VAT
    457 Kč

    Fixed quick coupling nipple with protective spring for hose 8 x 12 mm in DN7.2. Designed for spiral hoses. All end caps can be disassembled and are reusable. It is characterized...

    Code: ES8SSVK
    Fixed quick coupler with protective spring 8 x 12 mm
    Tip
    637 Kč –4 %
    Fixed quick coupler with protective spring 8 x 12 mm
    Stock (6 pcs)
    501 Kč excl. VAT
    606 Kč

    Fixed quick coupling with protective spring for hose 8 x 12 mm in DN7.2. Designed for spiral hoses. All end caps can be disassembled and are reusable. It is characterized by...

    Code: ES8SVK
    Show all related products Previous product Next product

    Product detailed description

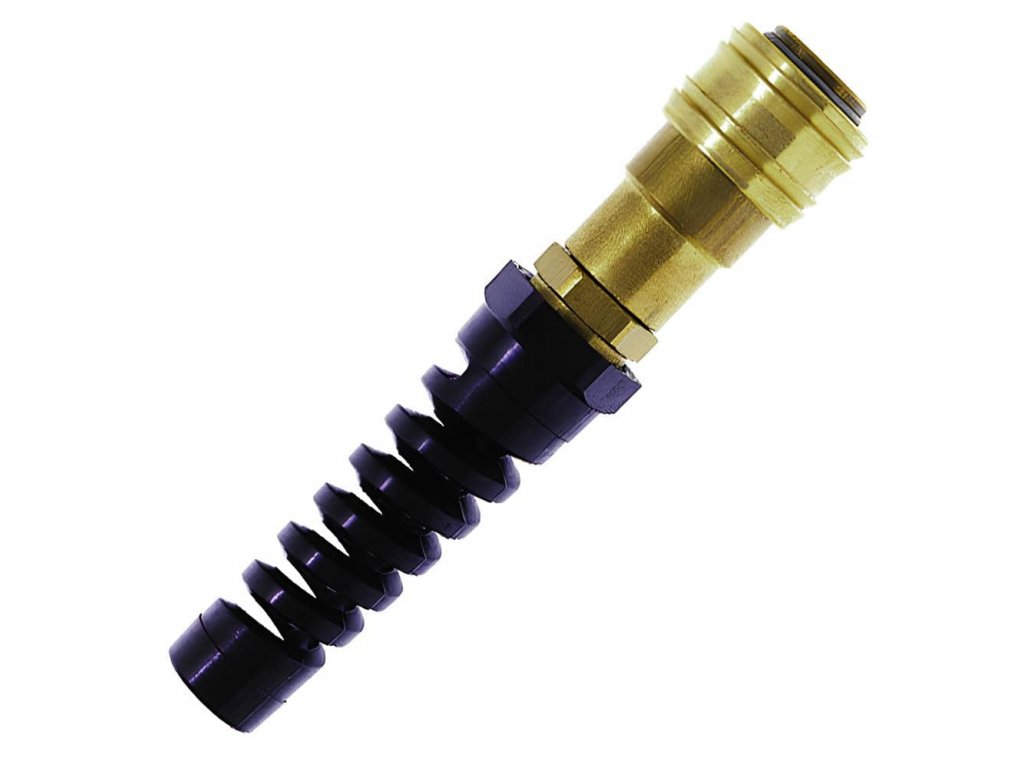

    Swivel quick coupling with protective spring ES8DVK

    • in brass MS58, polyamide spring
    • working temperature -40/+85 °C
    • supplied with tapered threads, Loctide shim
    • quick couplings and nipples of dimensions DN7,2 and DN5
    • made for spiral hose sizes, the hose ends are disassembled and reusable
    • construction with extreme tensile and compressive strength, the swivel design is sealed by a double O-ring and a seeger lock

    Additional parameters

    Category: ES-DVK spring-loaded end caps for spiral hoses
    Pressure: 15 bar
    DN: 7,2
    Material: Brass
    Medium: Air
    For the hose: 8 x 12 mm
    Temperature: -40/+85°C
    Thorn on the hose: 8 mm

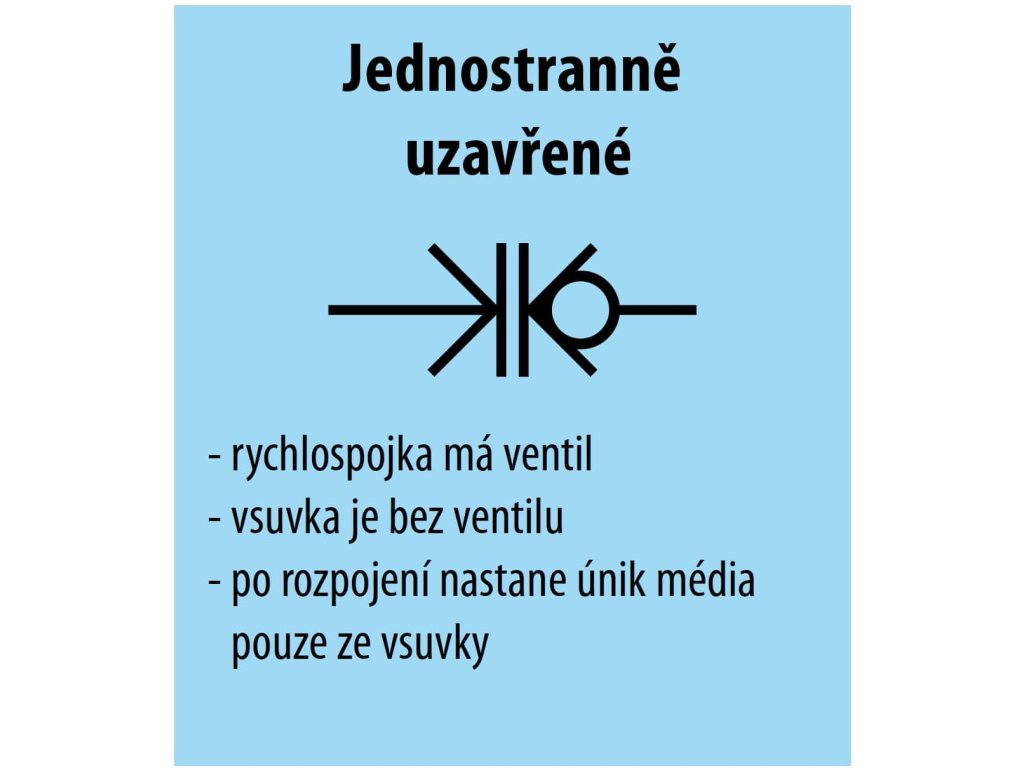

    Closure: One-sided closed
    Safety ring: No
    Clutch profile: EC (DN7.2)
    Male / female: Quick coupler
    Connection system: Quick couplings
