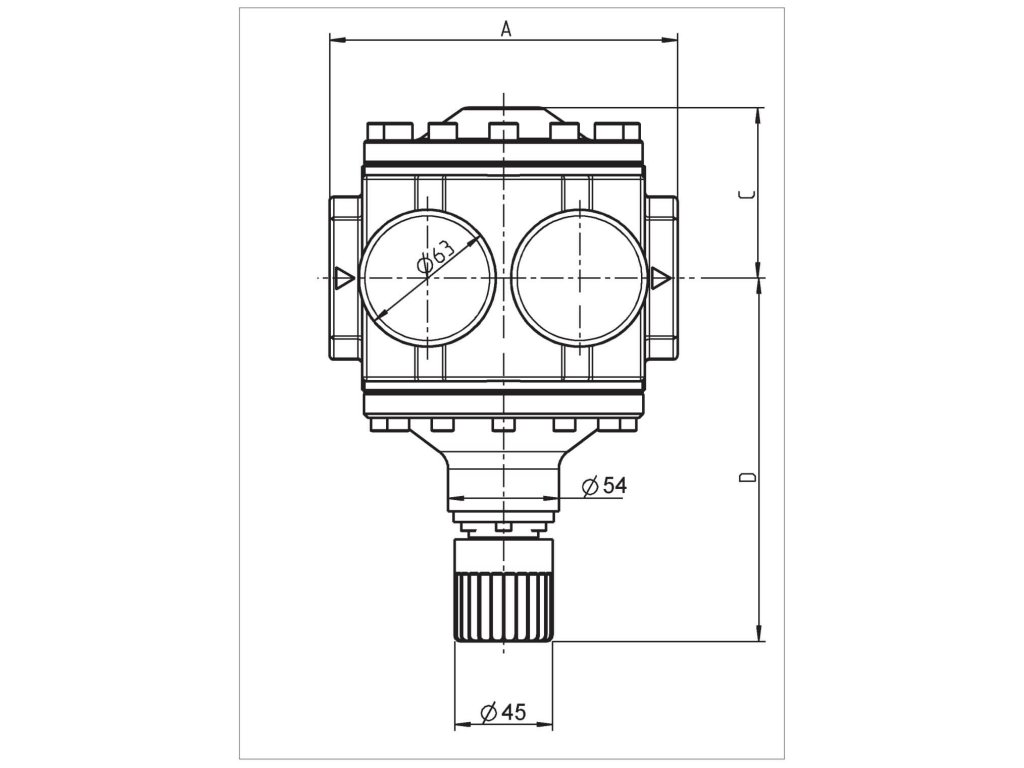

Pressure regulator 1 1/2", 25,000 l/min, 0.5-10 bar
Code: 417.2113Product detailed description
Pressure regulators with high air flow up to 40 bar - 1 1/2"
- regulators for pressure reduction of compressed air and other non-volatile and non-toxic gases with extreme flow rates
- maximum inlet pressure 40 bar, various outlet pressures, operating temperature -10 to +90 °C
- equipped with manometers for inlet and outlet pressure with a diameter of 63 mm, can be mounted in any direction
- outlet pressure adjustment by hand wheel, secondary pressure venting
- materials used: aluminium body, NBR gasket
High flow compressed air control 417 |
||||||||
| Order no. | Thread | Flow (l/min) |
Inlet pressure (Bar) |
Regulation (Bar) |
Weight (kg) |
Dimensions (mm) |  |
|
| Height | Width | |||||||
| 417.2112 | 1 1/2" | 25 000 | 40 | 0.5 to 6 | 5,5 | 278 | 180 | |
| 417.2113 | 1 1/2" | 25 000 | 40 | 0.5 to 10 | 5,5 | 278 | 180 | |
| 417.2114 | 1 1/2" | 25 000 | 40 | 0.5 to 16 | 5,5 | 278 | 180 | |
| 417.2115 | 1 1/2" | 25 000 | 40 | 0.5 to 25 | 5,5 | 278 | 180 | |
| 417.2122 | 2" | 25 000 | 40 | 0.5 to 6 | 5,5 | 278 | 180 | |
| 417.2123 | 2" | 25 000 | 40 | 0.5 to 10 | 5,5 | 278 | 180 | |
| 417.2124 | 2" | 25 000 | 40 | 0.5 to 16 | 5,5 | 278 | 180 | |
| 417.2125 | 2" | 25 000 | 40 | 0.5 to 25 | 5,5 | 278 | 180 | |
| Pressure gauge included with all compressed air pressure regulators | ||||||||
Additional parameters
| Category: | 417 air pressure regulators for high pressure up to 40 bar |
|---|---|
| Pressure: | 40 bar |
| Dimensions: | 180 x 278 mm |
| Weight: | 5,5 kg |
| Flow: | 25,000 l/min |
| Regulatory range: | 0.5 to 10 bar |
| Thread: | G 1 1/2" |
