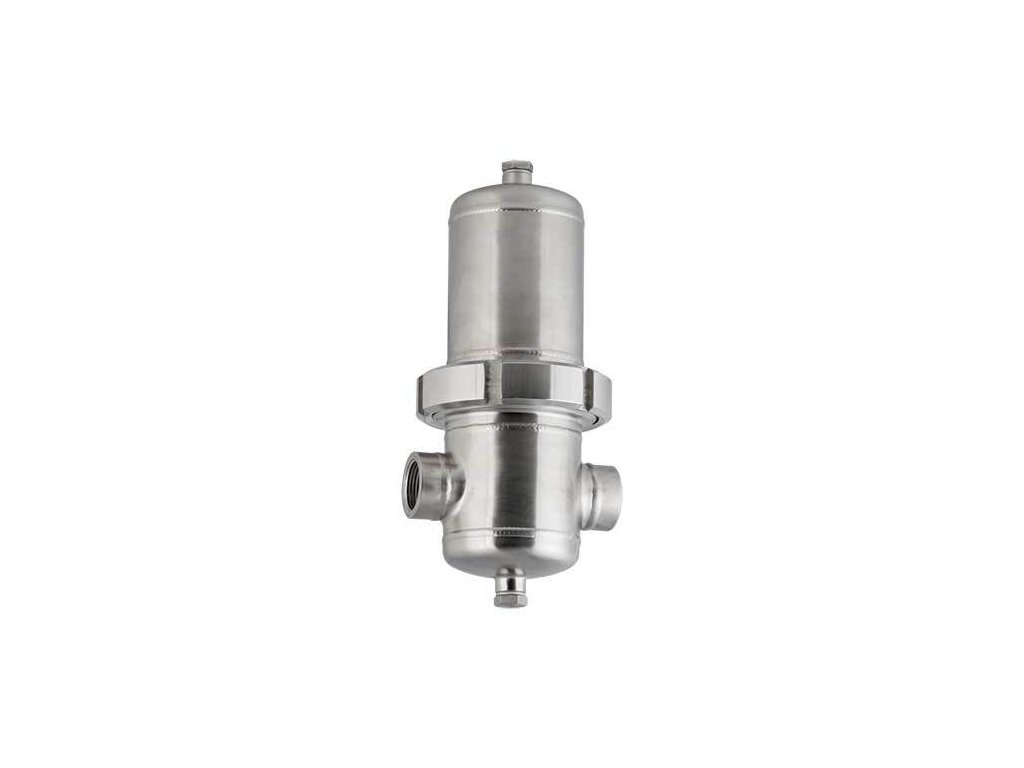

    Prefilter HPFI G1 1/2"

    Code: HPFI20-070
    Not rated
    Brand: OMEGA AIR
    76 248 Kč –2 %
    Prefilter HPFI G1 1/2"
    76 248 Kč –2 % 74 723 Kč / pcs 61 755 Kč excl. VAT
    up to 14 days
    Delivery to:
    11.12.2024
    HFPI pre-filter with G1 1/2" connection thread for use in areas with high corrosive environments. Filtration capacity up to 20 um. Maximum working pressure up to 50 bar, maximum flow up to 10,000 l/min. Made of stainless steel 1.4301. Automatic condensate drain must be ordered separately.

    Detailed information

    Related products

    Filter insert PFA 094V
    Original parts
    11 292 Kč –2 %
    Filter insert PFA 094V
    up to 14 days
    9 145 Kč excl. VAT
    11 066 Kč

    Replacement PFA filter cartridge for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Contains filtering activated...

    Code: PFA-094V
    Filter insert PFI20 070V
    Original parts
    10 995 Kč –2 %
    Filter insert PFI20 070V
    up to 14 days
    8 905 Kč excl. VAT
    10 775 Kč

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 um and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-070V
    Filter insert PFA 018V
    Original parts
    5 256 Kč –2 %
    Filter insert PFA 018V
    up to 14 days
    4 257 Kč excl. VAT
    5 151 Kč

    Replacement PFA filter cartridge for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Contains filtering activated...

    Code: PFA-018V
    Filter insert PFM 005V
    Original parts
    3 310 Kč –1 %
    Filter insert PFM 005V
    up to 14 days
    2 681 Kč excl. VAT
    3 244 Kč

    Replacement filter cartridge PFM for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Made of borosilicate microfibers.

    Code: PFM-005V
    Filter insert PFI20 005V
    Original parts
    3 918 Kč –1 %
    Filter insert PFI20 005V
    up to 14 days
    3 174 Kč excl. VAT
    3 840 Kč

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 um and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-005V
    Filter insert PFI20 047V
    Original parts
    8 796 Kč –2 %
    Filter insert PFI20 047V
    up to 14 days
    7 124 Kč excl. VAT
    8 620 Kč

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 um and working pressure 16 bar. Operating temperature up to 150°C.

    Code: PFI20-047V
    Filter insert PFI1 175V
    Original parts
    19 792 Kč –2 %
    Filter insert PFI1 175V
    up to 14 days
    16 030 Kč excl. VAT
    19 396 Kč

    Replacement filter cartridge PFI1 for filter with filtration capacity up to 1 um and working pressure 16 bar. Operating temperature up to 150°C. Made of stainless steel strainer.

    Code: PFI1-175V
    Filter insert PFI20 200V
    Original parts
    23 790 Kč –2 %
    Filter insert PFI20 200V
    up to 14 days
    19 268 Kč excl. VAT
    23 314 Kč

    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 um and working pressure 12 bar. Operating temperature up to 150°C.

    Code: PFI20-200V
    Filter insert PFN25 005V
    Original parts
    3 918 Kč –1 %
    Filter insert PFN25 005V
    up to 14 days
    3 174 Kč excl. VAT
    3 840 Kč

    Replacement filter cartridge PFN25 for filter with filtration capacity up to 25 um and working pressure 16 bar. Operating temperature up to 150°C. Made of stainless steel strainer.

    Code: PFN25-005V
    Filter insert PFA-005V
    Original parts
    3 310 Kč –1 %
    Filter insert PFA-005V
    up to 14 days
    2 681 Kč excl. VAT
    3 244 Kč

    Replacement PFA filter cartridge for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Contains filtering activated...

    Code: PFA-005V
    Filter insert PFA 240V
    Original parts
    24 531 Kč –2 %
    Filter insert PFA 240V
    up to 14 days
    19 868 Kč excl. VAT
    24 040 Kč

    Replacement PFA filter cartridge for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Contains filtering activated...

    Code: PFA-240V
    Filter cartridge PFIW1-094V
    Original parts
    13 394 Kč –2 %
    Filter cartridge PFIW1-094V
    up to 14 days
    10 848 Kč excl. VAT
    13 126 Kč

    Replacement filter cartridge PFIW1 for filters (PF, HPF) with filtration capacity up to 1 um, working pressure up to 50 bar and flow rate up to 15 000 l/min. Operating...

    Code: PFIW1-094V
    Filter insert PFM 175V
    Original parts
    16 743 Kč –2 %
    Filter insert PFM 175V
    up to 14 days
    13 560 Kč excl. VAT
    16 408 Kč

    Replacement filter cartridge PFM for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Made of borosilicate microfibers.

    Code: PFM-175V
    Filter insert PFM 018V
    Original parts
    5 256 Kč –2 %
    Filter insert PFM 018V
    up to 14 days
    4 257 Kč excl. VAT
    5 151 Kč

    Replacement filter cartridge PFM for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Made of borosilicate microfibers.

    Code: PFM-018V
    Filter insert PFA 047V
    Original parts
    7 398 Kč –2 %
    Filter insert PFA 047V
    up to 14 days
    5 992 Kč excl. VAT
    7 250 Kč

    Replacement PFA filter cartridge for filter with filtration capacity up to 0,1 um and working pressure 16 bar. Operating temperature up to 150°C. Contains filtering activated...

    Code: PFA-047V
    Filter insert PFI1 094V
    Original parts
    13 394 Kč –2 %
    Filter insert PFI1 094V
    up to 14 days
    10 848 Kč excl. VAT
    13 126 Kč

    Replacement filter cartridge PFI1 for filter with filtration capacity up to 1 um and working pressure 16 bar. Operating temperature up to 150°C. Made of stainless steel strainer.

    Code: PFI1-094V
    Show all related products Previous product Next product

    Product detailed description

    HPF filters 50 bar, I20 - pre-filter 20 µm - HPFI20-070

    • a series of filters designed to remove impurities from compressed air for applications with a high risk of corrosion
    • stainless steel body 1.4301, threaded connection with internal pipe threads or flanges
    • connection for pressure sensing and discharge from the top/bottom of the filter via internal pipe thread
    • working temperature up to +150 °C, maximum working pressure up to 50 bar
    • scope of delivery - filter body and filter cartridge, without condensate drain - order separately
    • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
    • note: the HPF filters are designed for filter inserts from the PF series

    Additional parameters

    Category: HPF process filters
    Version: Coarse filter
    Pressure: 50 bar
    Connecting: 1 1/2"
    Dimensions: 387 x 180 x 114 mm
    Filtration: 20 um
    Filter insert: HPFI-070V
    Material: Stainless steel
    Condensate discharge: Without release
    Number of inserts: 1
    Working temperature: 0 / 150 °C
    Flow: 10,000 l/min
    Quality class - solid impurities: 7
