BS 63mm short lift cylinders

Code: 63/10BS 63/15BS 63/20BS 63/25BS 63/30BS 63/40BS 63/50BS Choose variant
2 977 Kč 3 062 Kč 3 157 Kč 3 263 Kč 3 358 Kč 3 724 Kč 3 890 Kč from 2 977 Kč –5 % –5 % –5 % –5 % –5 % –4 % –4 % up to –5 %
BS 63mm short lift cylinders
2 977 Kč 3 062 Kč 3 157 Kč 3 263 Kč 3 358 Kč 3 724 Kč 3 890 Kč from 2 977 Kč –5 % –5 % –5 % –5 % –5 % –4 % –4 % up to –5 % 2 828 Kč / pcs 2 909 Kč / pcs 2 999 Kč / pcs 3 100 Kč / pcs 3 190 Kč / pcs 3 538 Kč / pcs 3 696 Kč / pcs from 2 828 Kč / pcs 2 337 Kč excl. VAT 2 404 Kč excl. VAT 2 479 Kč excl. VAT 2 562 Kč excl. VAT 2 636 Kč excl. VAT 2 924 Kč excl. VAT 3 055 Kč excl. VAT from 2 337 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.12.2024 11.12.2024 11.12.2024 11.12.2024 11.12.2024 11.12.2024 11.12.2024 Choose variant

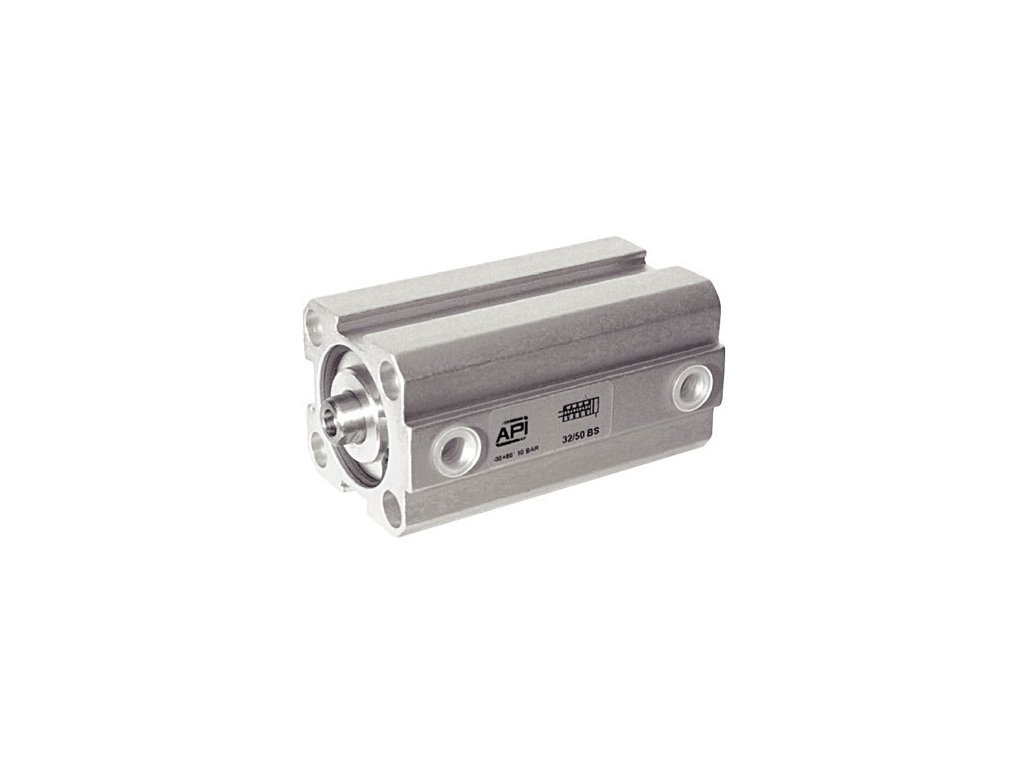

Short lift cylinders BS 63 mm diameter without magnet in single-acting design. Variant with internal thread on piston rod, without damping in end positions.

Detailed information

Product detailed description

Short lift cylinders BS 63 mm

  • diameter 63 mm
  • strokes 10, 15, 20, 25, 30, 40, 50 mm
  • connection by 1/8" thread
  • pressure 2 - 10 bar
  • made of aluminium and stainless steel

Additional parameters

Category: BS and BSM single acting short lift cylinders
Version: Single acting cylinders
Pressure: 10 bars
Connecting: 1/8"
Magnet: without magnet
Piston rod material: Stainless steel AISI303
Profile material: Aluminium
Lid material: Aluminium
Average: 63 mm
Temperature: -20/+80°C
Seals: NBR
Cylinder thrust: 1700 N
Cylinder type: Short lift
Stroke selection: 10, 15, 20, 25, 30, 40, 50 mm
Connecting rod thread: M8
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
