TRES well - 1/2" stem 63 / 18 mm
Code: TRES-63Related products

Rear stainless steel thermometer with connection for 63 mm stem length sump. 63 mm diameter with a temperature measurement range of -30°C to +50°C. Designed for measuring the...

Rear stainless steel thermometer with connection for 63 mm stem length sump. 63 mm diameter with a temperature measurement range of -20°C to +60°C. Designed for measuring the...

Rear stainless steel thermometer with connection for 60 mm stem length sump. 63 mm diameter with a temperature measurement range of -0°C to +60°C. Designed for measuring the...

Rear stainless steel thermometer with connection for 60 mm stem length sump. 63 mm diameter with a temperature measurement range of -0°C to +80°C. Designed for measuring the...

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of 0°C to +120°C....

Rear stainless steel thermometer with connection for 60 mm stem length sump. 63 mm diameter with a temperature measurement range of -0°C to +160°C. Designed for measuring the...

Rear stainless steel thermometer with connection for 60 mm stem length sump. 63 mm diameter with a temperature measurement range of -0°C to +250°C. Designed for measuring the...

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of -30°C to +50°C....

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of -20°C to +60°C....

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of 0°C to +60°C....

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of 0°C to +80°C....

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of 0°C to +120°C....

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of 0°C to +160°C....

Rear stainless steel thermometer with connection for 63 mm stem length sump. The diameter of the indicator is 100 mm with a temperature measurement range of 0°C to +250°C....
Product detailed description

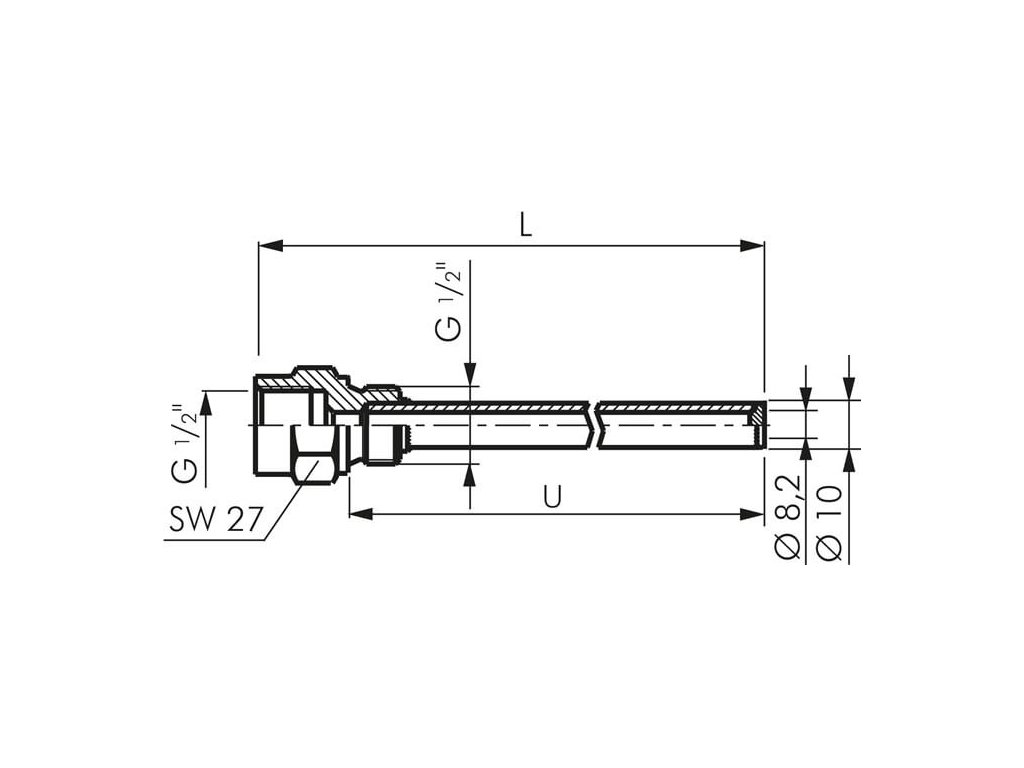

Thermometer receptacle TRES - 63 mm - 1/2"
- Stainless steel sumps with clamping screw and external pipe thread
- Serves as a thermometer stem protector and as a connection element, designed for WIKA thermometers TW and TST series
- The maximum pressure of the measuring medium is 25 atmospheres
Additional parameters
Category: | Wells for WIKA thermometers |
---|---|
Version: | TR well for thermometers |
Pressure: | 25 bar |
Material: | Stainless steel |
Medium: | Air, Water, Non-aggressive media |
Thread: | G 1/2" |
Stem length: | 63 mm |
The diameter of the well: | 18 mm |
Stem diameter: | 8 mm |

The WIKA copper thermometer sump serves as a stem protector with a length of 63 mm and a 1/2" connection with a stem diameter of 18 mm. Designed for WIKA TW and TST thermometers.

The WIKA steel thermometer sump serves as a stem protector with a length of 63 mm and a 1/2" connection with a stem diameter of 18 mm. Designed for WIKA TW and TST thermometers.

The stainless steel thermometer sump with WIKA thermowell serves as a protection for the thermometer stem and as a connecting stem with a length of 63 mm. Designed for WIKA TW...
