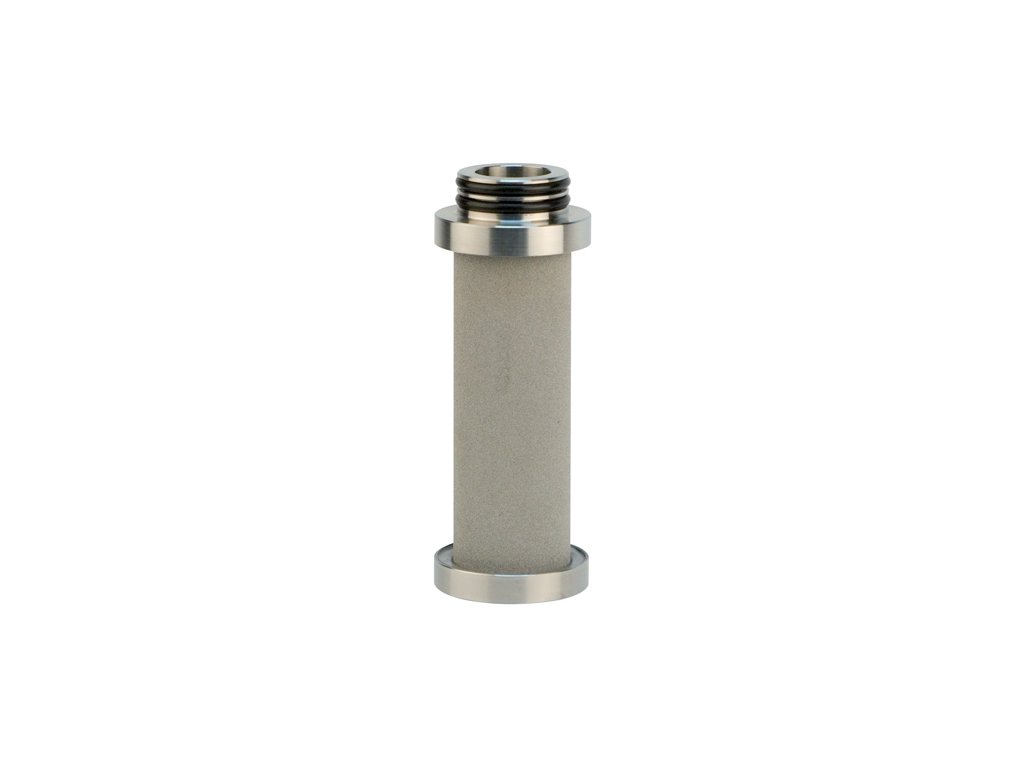

    Filter insert PFI20 010V

    Code: PFI20-010V
    Original parts
    Not rated
    Brand: OMEGA AIR
    4 998 Kč –2 %
    Filter insert PFI20 010V
    4 998 Kč –2 % 4 898 Kč / pcs 4 048 Kč excl. VAT
    up to 14 days
    Delivery to:
    11.12.2024
    Replacement filter cartridge PFI20 for filter with filtration capacity up to 20 um and working pressure 16 bar. Operating temperature up to 150°C.

    Detailed information

    Product detailed description

    Replacement filter cartridge PF, I20 - pre-filter 20 µm - PFI20-010

    • highly efficient filtration of compressed air, process air and industrial gases
    • body made of stainless steel 1.4301 with polished surface, connection - internal pipe threads
    • working temperature up to +150 °C, maximum working pressure according to size 12/16 bar
    • scope of delivery - filter body and filter cartridge
    • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
    • note: for SPF filters the filter inserts from the PF series are intended

    Additional parameters

    Category: Filter inserts
    Version: Coarse filter
    Pressure: 16 bar
    Filtration: 20 um
    Filter insert: PFI20-010V
    Working temperature: 0 / 150 °C
    Flow: 2,500 l/min
