    Double acting cylinders CX 32mm

    Code: 32/25CX 32/50CX 32/75CX 32/100CX 32/125CX 32/150CX 32/200CX 32/250CX 32/300CX 32/400CX 32/500CX 32/600CX 32/700CX 32/800CX 32/900CX 32/1000CX Choose variant
    Not rated
    Brand: A.P.I.
    3 150 Kč 3 224 Kč 3 313 Kč 3 373 Kč 3 447 Kč 3 522 Kč 3 670 Kč 3 819 Kč 3 967 Kč 4 264 Kč 4 561 Kč 4 859 Kč 5 157 Kč 5 454 Kč 5 752 Kč 6 049 Kč from 3 150 Kč –5 % –4 % –4 % –5 % –5 % –5 % –4 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % up to –5 %
    Double acting cylinders CX 32mm
    3 150 Kč 3 224 Kč 3 313 Kč 3 373 Kč 3 447 Kč 3 522 Kč 3 670 Kč 3 819 Kč 3 967 Kč 4 264 Kč 4 561 Kč 4 859 Kč 5 157 Kč 5 454 Kč 5 752 Kč 6 049 Kč from 3 150 Kč –5 % –4 % –4 % –5 % –5 % –5 % –4 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % up to –5 % 2 992 Kč / pcs 3 063 Kč / pcs 3 148 Kč / pcs 3 204 Kč / pcs 3 274 Kč / pcs 3 346 Kč / pcs 3 487 Kč / pcs 3 628 Kč / pcs 3 769 Kč / pcs 4 051 Kč / pcs 4 333 Kč / pcs 4 616 Kč / pcs 4 899 Kč / pcs 5 181 Kč / pcs 5 464 Kč / pcs 5 747 Kč / pcs from 2 992 Kč / pcs 2 473 Kč excl. VAT 2 531 Kč excl. VAT 2 602 Kč excl. VAT 2 648 Kč excl. VAT 2 706 Kč excl. VAT 2 765 Kč excl. VAT 2 882 Kč excl. VAT 2 998 Kč excl. VAT 3 115 Kč excl. VAT 3 348 Kč excl. VAT 3 581 Kč excl. VAT 3 815 Kč excl. VAT 4 049 Kč excl. VAT 4 282 Kč excl. VAT 4 516 Kč excl. VAT 4 750 Kč excl. VAT from 2 473 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer
    Double-acting cylinder CX 32 mm diameter without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

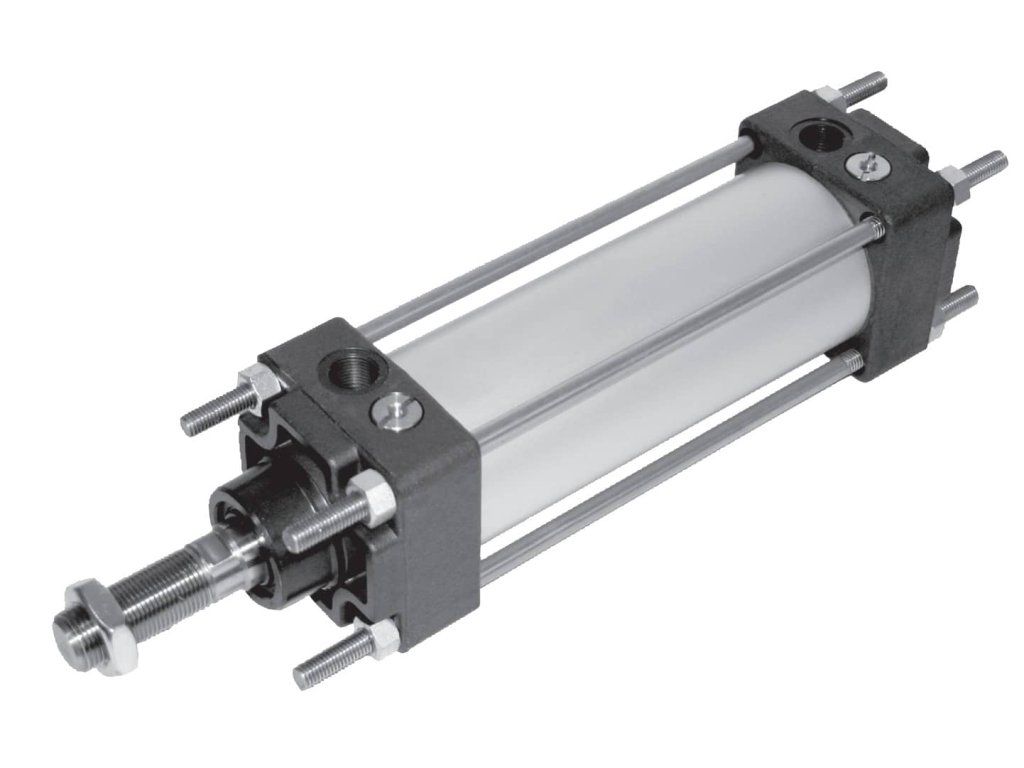

    Double acting cylinders CX 32 mm without magnet

    • diameter 32 mm
    • strokes 10 - 2500 mm
    • connection by 1/8" thread
    • pressure 1 - 10 bar

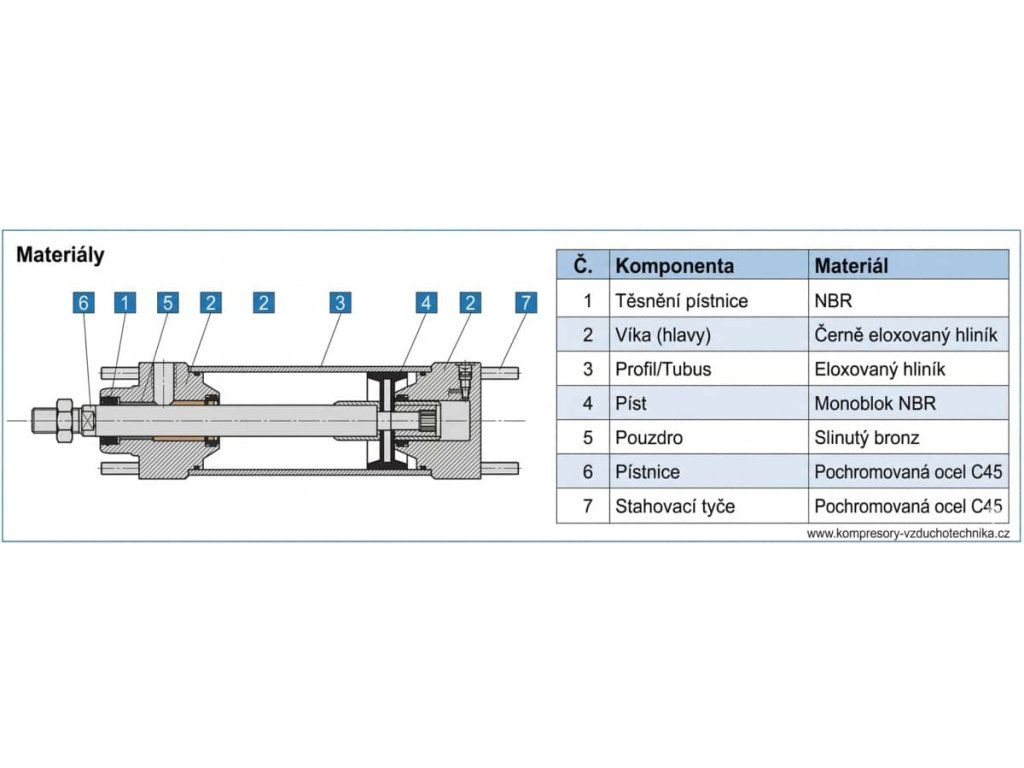

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Damping length: 21 mm
    Magnet: without magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 32 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 434 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M10 x 1.5
    Minimální tlak: 1 bar
