    Double acting cylinders CM 32mm

    Code: 32/25CM 32/50CM 32/80CM 32/100CM 32/125CM 32/150CM 32/200CM 32/250CM 32/300CM 32/320CM 32/400CM 32/450CM 32/500CM 32/600CM 32/650CM 32/700CM 32/750CM 32/800CM 32/850CM 32/900CM 32/950CM 32/1000CM Choose variant
    Tip
    Not rated
    Brand: A.P.I.
    3 101 Kč 3 175 Kč 3 262 Kč 3 321 Kč 3 394 Kč 3 467 Kč 3 614 Kč 3 760 Kč 3 906 Kč 3 965 Kč 4 199 Kč 4 345 Kč 4 491 Kč 4 784 Kč 4 931 Kč 5 077 Kč 5 224 Kč 5 370 Kč 5 516 Kč 5 664 Kč 5 809 Kč 5 956 Kč from 3 101 Kč –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % –4 % –4 % –5 % –4 % –4 % –5 % –4 % –5 % –5 % –5 % –5 % up to –5 %
    Double acting cylinders CM 32mm
    3 101 Kč 3 175 Kč 3 262 Kč 3 321 Kč 3 394 Kč 3 467 Kč 3 614 Kč 3 760 Kč 3 906 Kč 3 965 Kč 4 199 Kč 4 345 Kč 4 491 Kč 4 784 Kč 4 931 Kč 5 077 Kč 5 224 Kč 5 370 Kč 5 516 Kč 5 664 Kč 5 809 Kč 5 956 Kč from 3 101 Kč –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % –4 % –4 % –5 % –4 % –4 % –5 % –4 % –5 % –5 % –5 % –5 % up to –5 % 2 946 Kč / pcs 3 016 Kč / pcs 3 099 Kč / pcs 3 155 Kč / pcs 3 224 Kč / pcs 3 294 Kč / pcs 3 433 Kč / pcs 3 572 Kč / pcs 3 711 Kč / pcs 3 767 Kč / pcs 3 989 Kč / pcs 4 128 Kč / pcs 4 267 Kč / pcs 4 545 Kč / pcs 4 685 Kč / pcs 4 824 Kč / pcs 4 963 Kč / pcs 5 102 Kč / pcs 5 240 Kč / pcs 5 380 Kč / pcs 5 518 Kč / pcs 5 658 Kč / pcs from 2 946 Kč / pcs 2 435 Kč excl. VAT 2 493 Kč excl. VAT 2 561 Kč excl. VAT 2 607 Kč excl. VAT 2 664 Kč excl. VAT 2 722 Kč excl. VAT 2 837 Kč excl. VAT 2 952 Kč excl. VAT 3 067 Kč excl. VAT 3 113 Kč excl. VAT 3 297 Kč excl. VAT 3 412 Kč excl. VAT 3 526 Kč excl. VAT 3 756 Kč excl. VAT 3 872 Kč excl. VAT 3 987 Kč excl. VAT 4 102 Kč excl. VAT 4 217 Kč excl. VAT 4 331 Kč excl. VAT 4 446 Kč excl. VAT 4 560 Kč excl. VAT 4 676 Kč excl. VAT from 2 435 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant

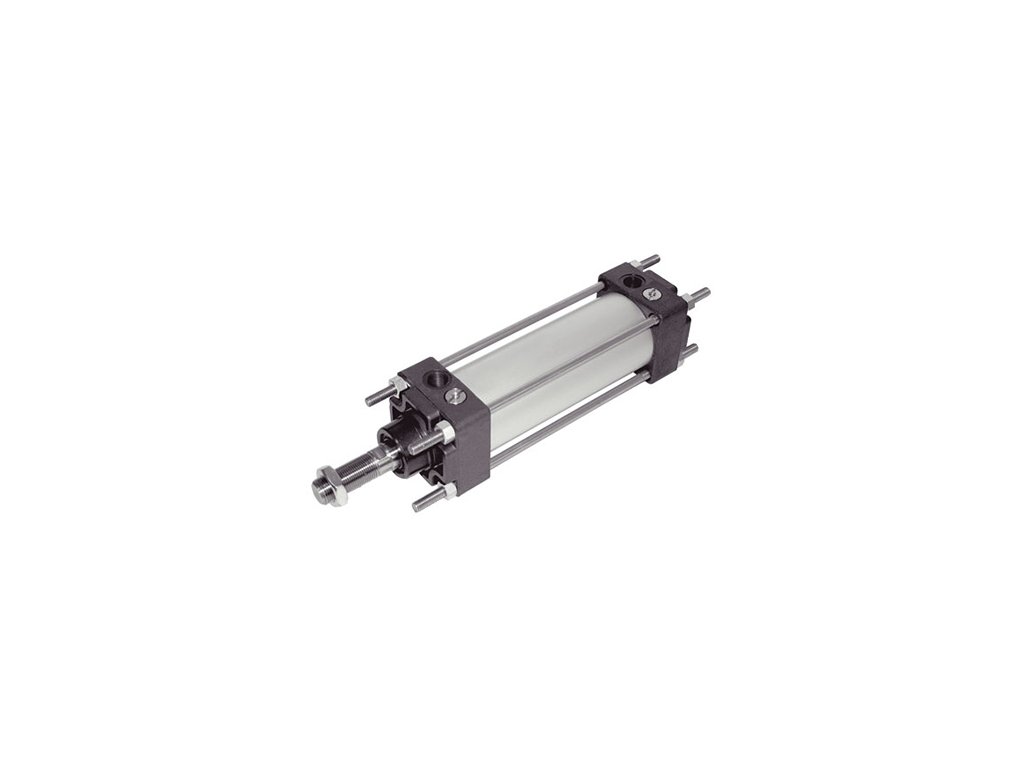

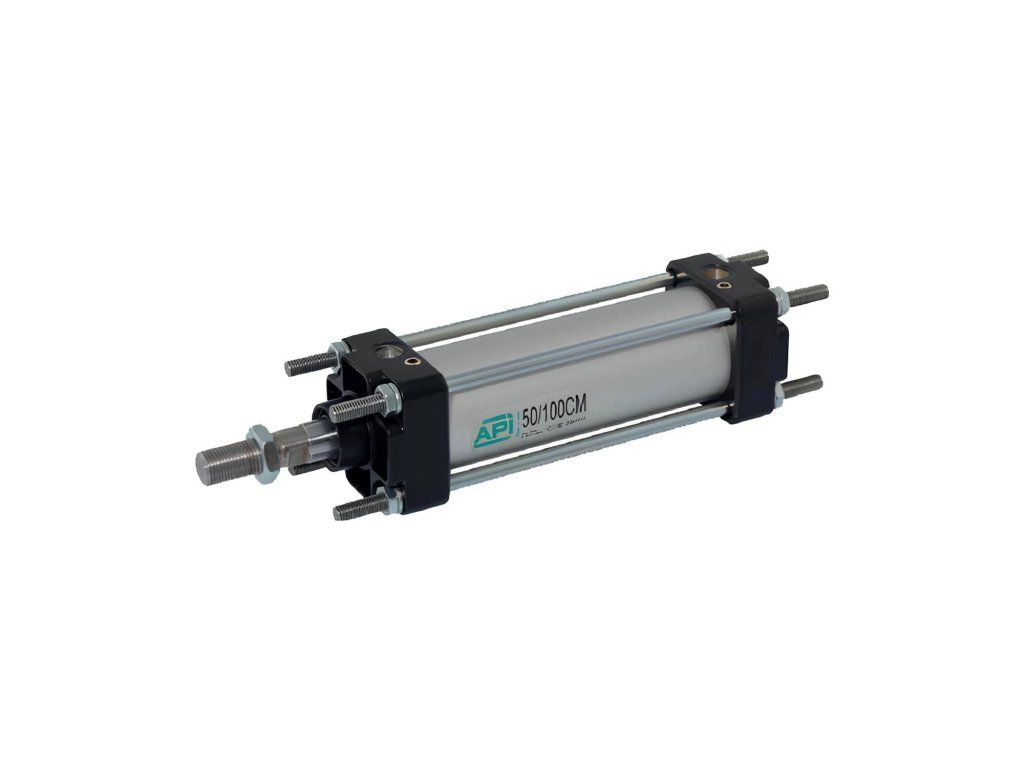

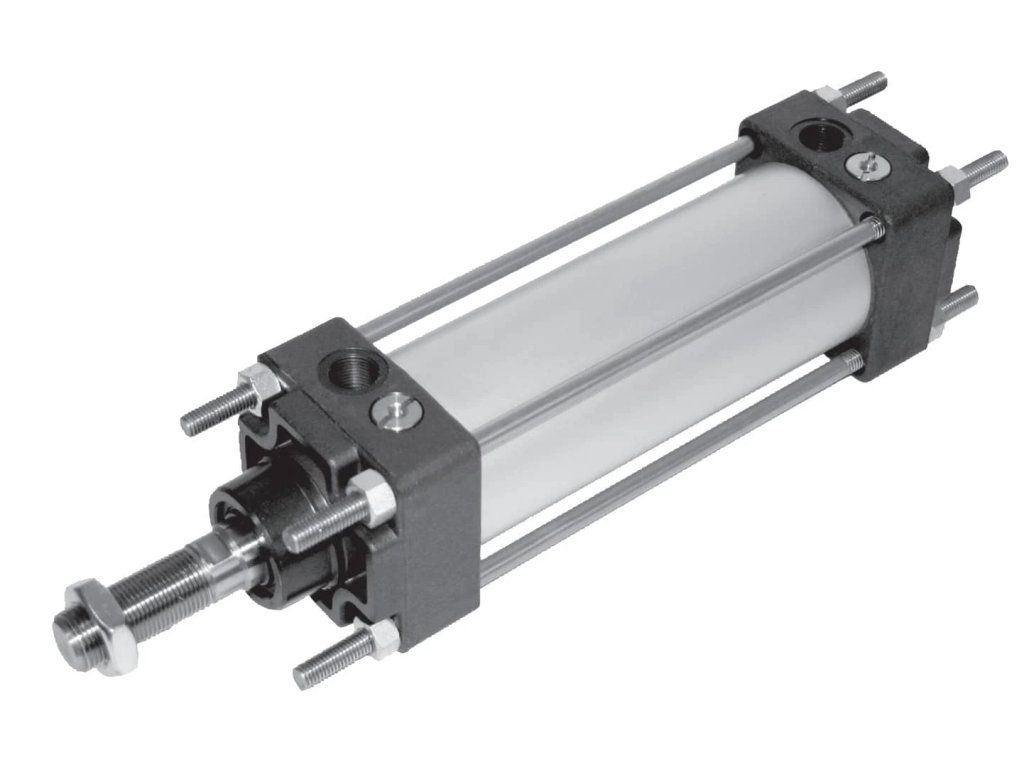

    Double acting cylinder CM 32 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Product detailed description

    Double acting cylinders CM 32 mm with magnet

    • diameter 32 mm
    • strokes 10 - 2500 mm
    • connection by 1/8" thread
    • pressure 1 - 10 bar

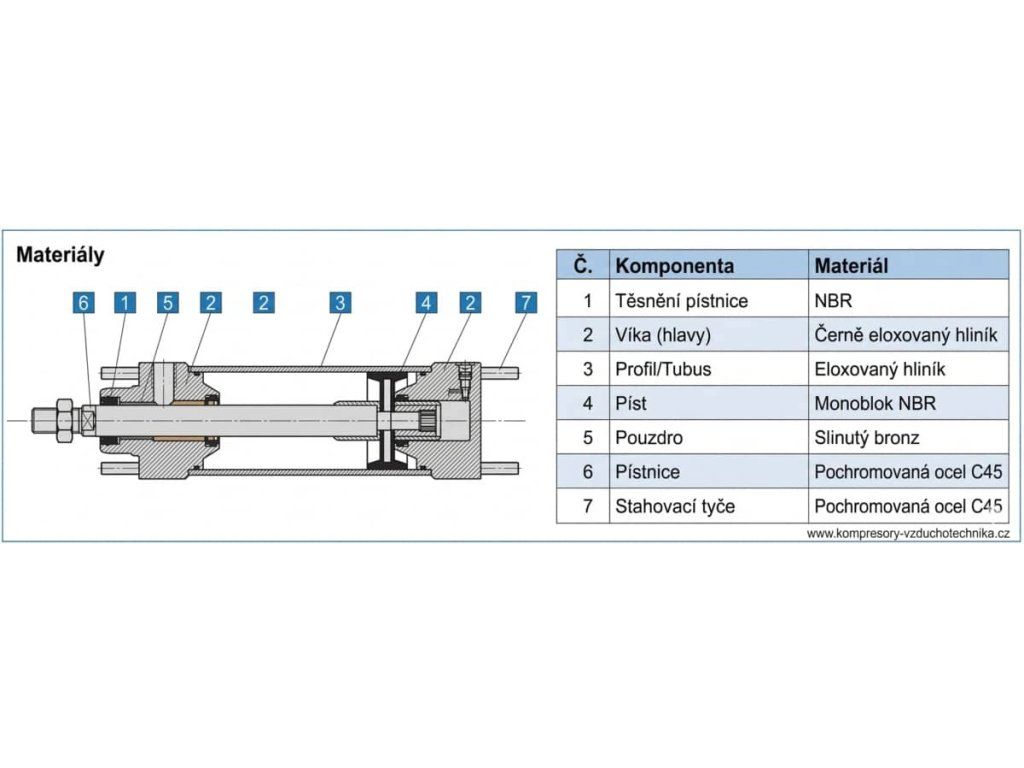

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Damping length: 21 mm
    Magnet: with a magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 32 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 434 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M10 x 1.5
    Minimální tlak: 1 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

    The range of products offered by API is brought to you by our company Air Compressors here.
