    Double acting cylinders CM 25mm

    Code: 25/25CM 25/50CM 25/80CM 25/100CM 25/125CM 25/150CM 25/160CM 25/200CM 25/250CM 25/300CM 25/320CM 25/400CM 25/450CM 25/500CM 25/550CM 25/600CM 25/650CM 25/700CM 25/750CM 25/800CM 25/850CM 25/900CM 25/950CM 25/1000CM Choose variant
    Tip
    Not rated
    Brand: API
    3 496 Kč 3 548 Kč 3 610 Kč 3 651 Kč 3 702 Kč 3 754 Kč 3 775 Kč 3 857 Kč 3 961 Kč 4 063 Kč 4 113 Kč 4 271 Kč 4 373 Kč 4 477 Kč 4 580 Kč 4 683 Kč 4 786 Kč 4 890 Kč 4 993 Kč 5 096 Kč 5 200 Kč 5 302 Kč 5 406 Kč 5 508 Kč from 3 496 Kč –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –4 % –5 % –4 % –5 % –5 % –5 % –4 % –4 % up to –5 %
    Double acting cylinders CM 25mm
    3 496 Kč 3 548 Kč 3 610 Kč 3 651 Kč 3 702 Kč 3 754 Kč 3 775 Kč 3 857 Kč 3 961 Kč 4 063 Kč 4 113 Kč 4 271 Kč 4 373 Kč 4 477 Kč 4 580 Kč 4 683 Kč 4 786 Kč 4 890 Kč 4 993 Kč 5 096 Kč 5 200 Kč 5 302 Kč 5 406 Kč 5 508 Kč from 3 496 Kč –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –4 % –5 % –4 % –5 % –5 % –5 % –4 % –4 % up to –5 % 3 321 Kč / pcs 3 371 Kč / pcs 3 430 Kč / pcs 3 468 Kč / pcs 3 517 Kč / pcs 3 566 Kč / pcs 3 586 Kč / pcs 3 664 Kč / pcs 3 763 Kč / pcs 3 860 Kč / pcs 3 907 Kč / pcs 4 057 Kč / pcs 4 155 Kč / pcs 4 253 Kč / pcs 4 351 Kč / pcs 4 449 Kč / pcs 4 547 Kč / pcs 4 645 Kč / pcs 4 744 Kč / pcs 4 841 Kč / pcs 4 940 Kč / pcs 5 037 Kč / pcs 5 136 Kč / pcs 5 233 Kč / pcs from 3 321 Kč / pcs 2 745 Kč excl. VAT 2 786 Kč excl. VAT 2 835 Kč excl. VAT 2 866 Kč excl. VAT 2 907 Kč excl. VAT 2 947 Kč excl. VAT 2 964 Kč excl. VAT 3 028 Kč excl. VAT 3 110 Kč excl. VAT 3 190 Kč excl. VAT 3 229 Kč excl. VAT 3 353 Kč excl. VAT 3 434 Kč excl. VAT 3 515 Kč excl. VAT 3 596 Kč excl. VAT 3 677 Kč excl. VAT 3 758 Kč excl. VAT 3 839 Kč excl. VAT 3 921 Kč excl. VAT 4 001 Kč excl. VAT 4 083 Kč excl. VAT 4 163 Kč excl. VAT 4 245 Kč excl. VAT 4 325 Kč excl. VAT from 2 745 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 21.02.2025 Choose variant
    Delivery offer

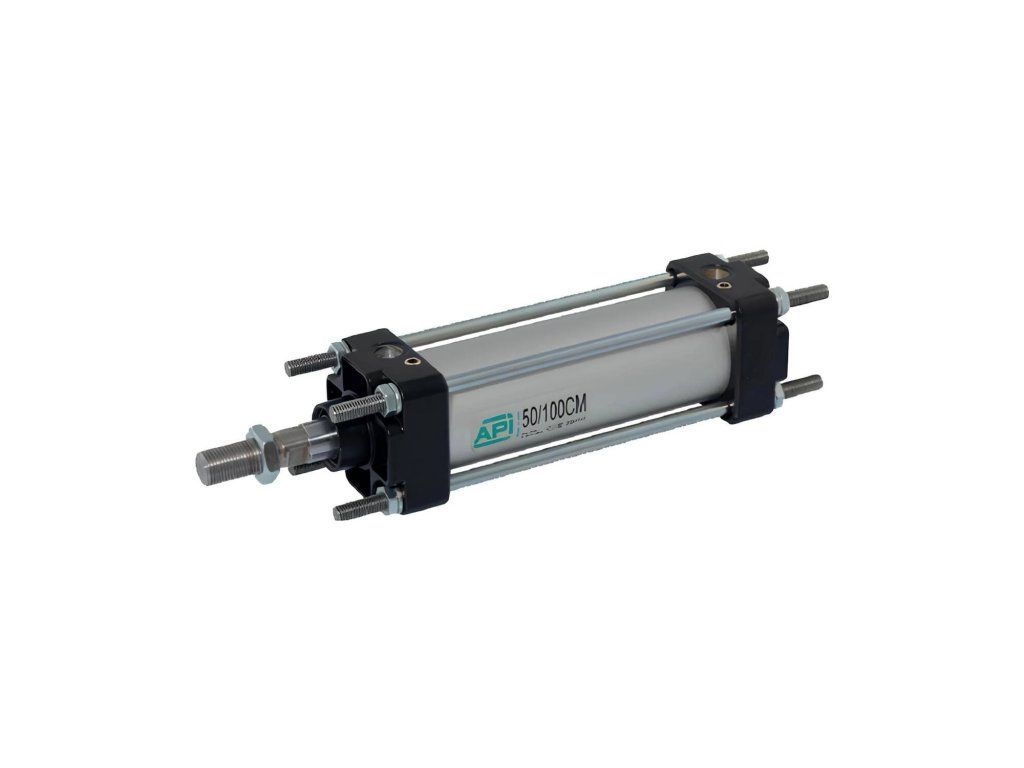

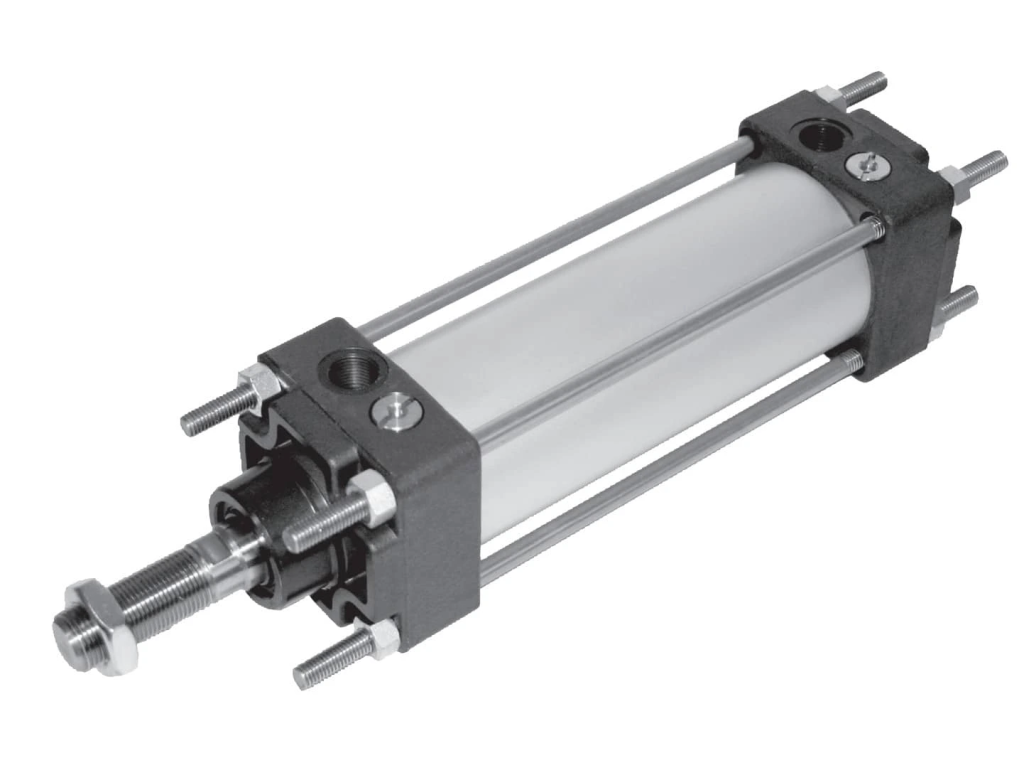

    Double-acting cylinder CM 25 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Double acting cylinders CM 25 mm with magnet

    • diameter 25 mm
    • strokes 10 - 2500 mm
    • connection by 1/8" thread
    • pressure 1 - 10 bar

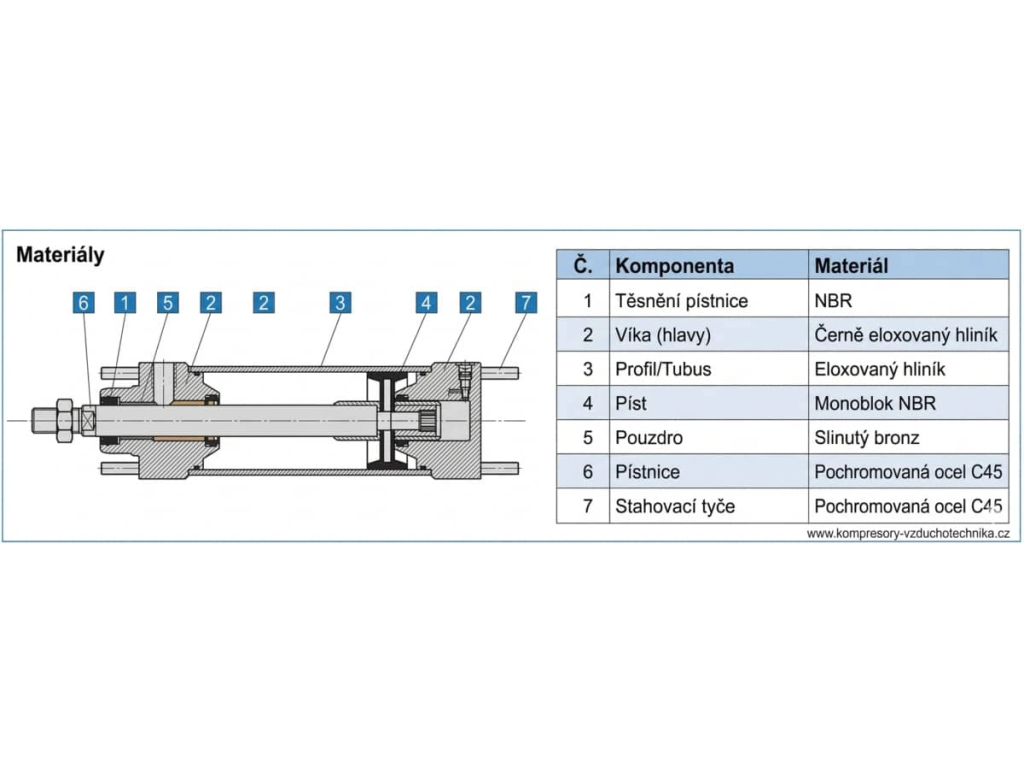

    • made of aluminium and C45 steel

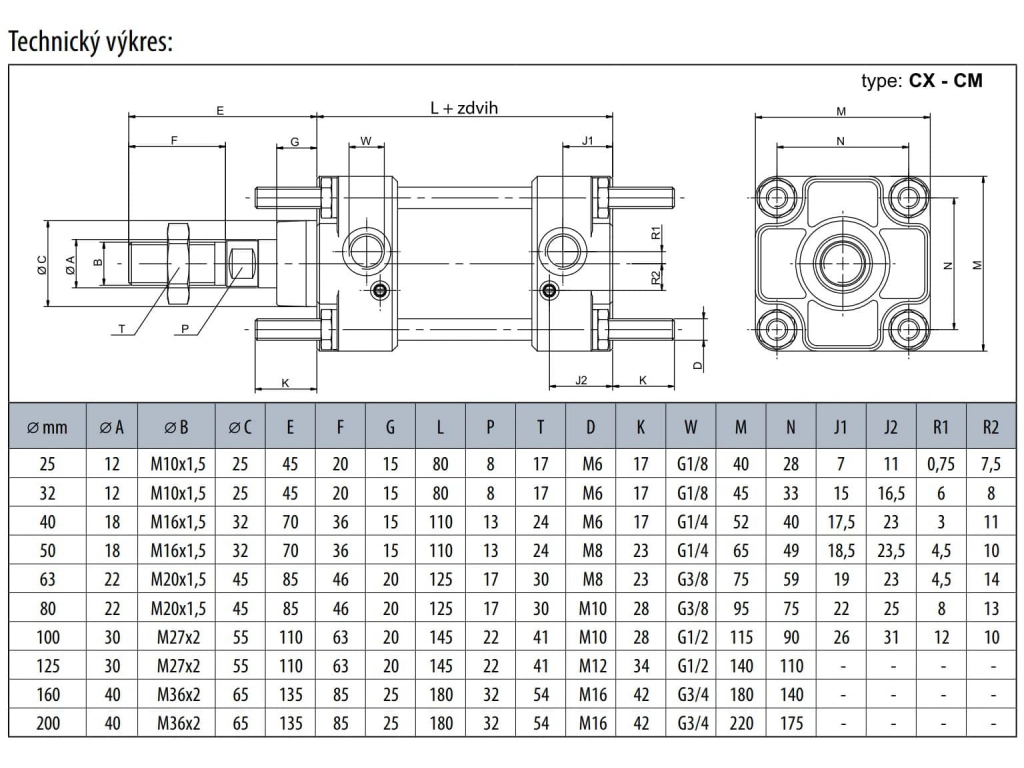

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/8"
    Damping length: 21 mm
    Magnet: with a magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 32 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 265 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M10 x 1.5
    Minimální tlak: 1 bar
