Cyclone separator 100 bar - 3/4" - CHP1C-010

chp filtr omega air vzduch tlak kompresor air pressure cyklon
38 720 Kč –2 %
38 720 Kč –2 % 37 946 Kč / pcs 31 360 Kč excl. VAT
up to 14 days
Set up a watchdog
We deliver to:
22.04.2025
Delivery offer
Kalkulačka splátek

Cyclone separator CHP1 with 3/4" threaded connection. It enables inexpensive and efficient removal of water and impurities from compressed air. Working pressure 100 bar, working temperature +1.5 to +65°C. Variant made of carbon steel. Scope of delivery - filter body and filter cartridge, without condensate drain - order separately

Detailed information

Code: CHP1C-010
Brand: OMEGA AIR
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

High pressure cyclone separator CHP1C-010 - 100 bar

  • cyclone separators designed for massive removal of water and oil and large solid impurities by centrifugal force

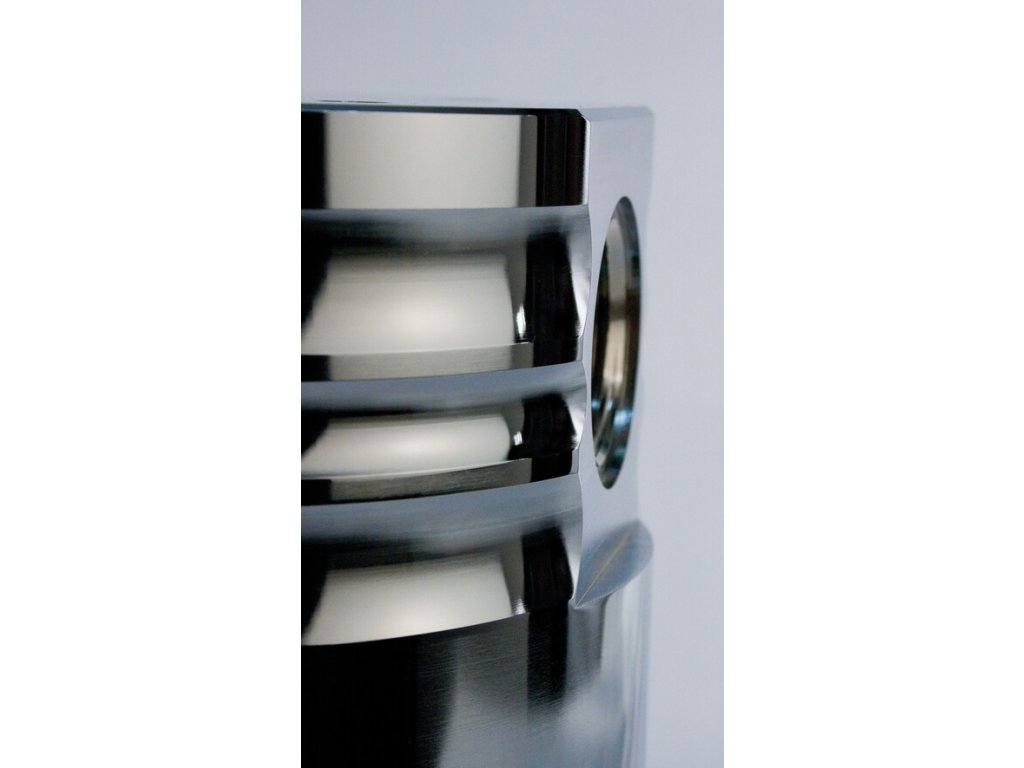

  • carbon steel body, threaded connection with internal pipe threads
  • operating temperature range +1.5 to +65 °C, maximum working pressure 100/250/400 bar
  • scope of delivery - filter body and filter cartridge, without condensate drain - order separately
  • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us

Correction factor - Working pressure

Working pressure bar 7 25 40 64 100 250 420
Correction factor 1 3 5 8 12 12 12
Product is included in the following categories: Air conditioning Cyclone separators

Technical parameters

Category: Compressed air cyclone water separators
Version: CHP cyclone separator
Pressure: 100 bar (100 atm, 1 450 PSI, 10 MPa)
Connecting: 3/4"
Dimensions: 210 x 105 x 85 mm
Weight: 9.3 kg

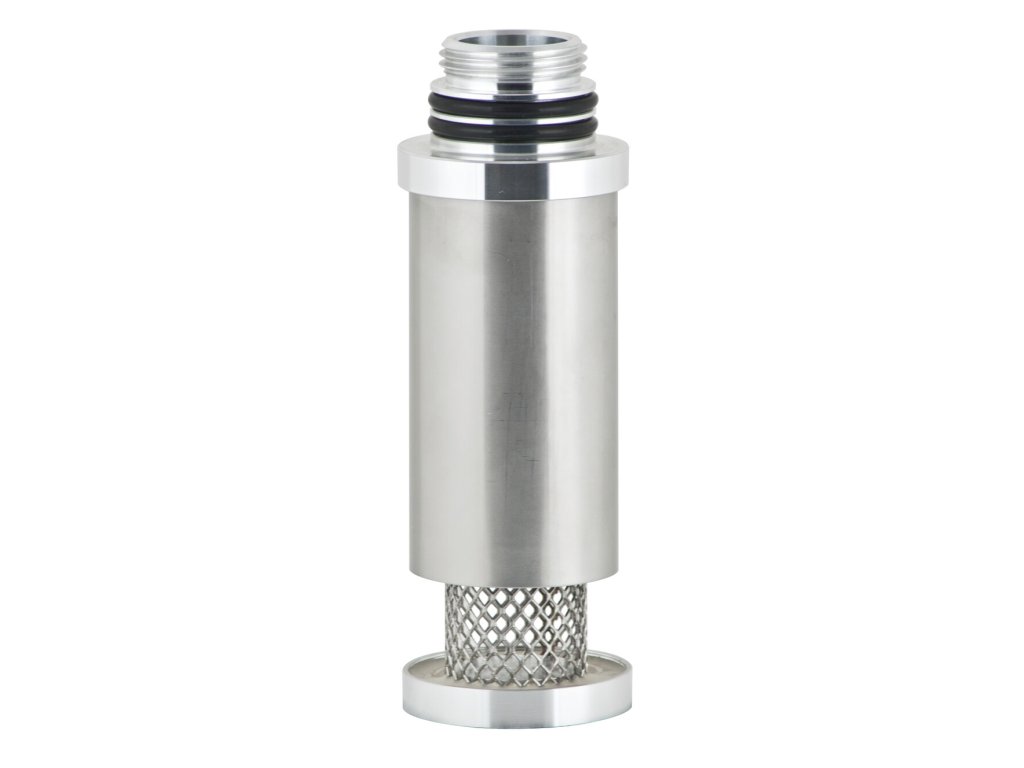

Filter insert: CHPC-010V
Material: Carbon steel
Working temperature: +1.5 / +65°C
Flow: 3 l/min (0,2 m³/h, 0,1147 CFM)
