    Home / Valves and automation / Cylinders and accessories; single-acting and double-acting / Mounting accessories; cylinder handles and extensions / Aluminium cylinder grips; for ISO 15 552 cylinders / Rear lugs; aluminium ISO 15 552

    Rear lugs for pneumatic cylinders ISO 15 552

    Zadní oka pro pneumatické válce ISO 15 552
    • designed for mounting on cylinder bodies according to ISO 15552
    • for cylinder diameters 32 - 250 mm
    • made of aluminum

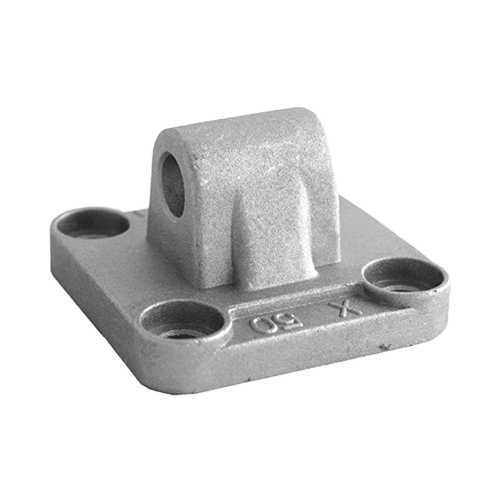

    Rear lugs for pneumatic cylinders - type CM...ALIS
    Ordering
    number    		 Code For a cylinder
    mm    		 Spacing
    mm    		 Pin diameter
    mm    		 Holes
    for screws
    mm    		 s
    042061 CM32ALIS 32 mm 26 10 6,6
    042062 CM40ALIS 40 mm 28 12 6,6
    042063 CM50ALIS 50 mm 32 12 9
    042064 CM63ALIS 63 mm 40 16 9
    042065 CM80ALIS 80 mm 50 16 11
    042066 CM100ALIS 100 mm 60 20 11
    042067 CM125ALIS 125 mm 70 25 14
    042068 CM160ALIS 160 mm 90 30 18
    042069 CM200ALIS 200 mm 90 30 18
    042070 CM250ALIS 250 mm 110 40 22

    Rear lugs for pneumatic cylinders - type ASV...ALIS
    Ordering
    number    		 Code For a cylinder
    mm    		 Spacing
    mm    		 Pin diameter
    mm    		 Holes
    for screws
    mm    		 s
    042081 ASV32ALIS 32 mm 26 10 6,6
    042082 ASV40ALIS 40 mm 28 12 6,6
    042083 ASV50ALIS 50 mm 32 16 9
    042084 ASV63ALIS 63 mm 40 16 9
    042085 ASV80ALIS 80 mm 50 20 11
    042086 ASV100ALIS 100 mm 60 20 11
    042087 ASV125ALIS 125 mm 70 25 14
    040395 ASV160ALIS 160 mm 90 30 14
    040396 ASV200ALIS 200 mm 90 30 18

    Rear lugs 90° for pneumatic cylinders - type AS...ALIS
    Ordering
    number    		 Code For a cylinder
    mm    		 Spacing
    mm    		 Pin diameter
    mm    		 Holes
    for screws
    mm    		 s
    040361 AS32ALIS 32 mm 26 10 6,6
    040362 AS40ALIS 40 mm 28 12 6,6
    040363 AS50ALIS 50 mm 32 12 9
    040364 AS63ALIS 63 mm 40 16 9
    040365 AS80ALIS 80 mm 50 16 11
    040366 AS100ALIS 100 mm 60 20 11
    040367 AS125ALIS 125 mm 70 25 14
    040368 AS160ALIS 160 mm 90 30 18
    040369 AS200ALIS 200 mm 90 30 18

    Rear swivel lugs - type CMS...ALIS
    Ordering
    number    		 Code For a cylinder
    mm    		 Spacing
    mm    		 Pin diameter
    mm    		 Holes
    for screws
    mm    		 s
    040151 CMS32ALIS 32 mm 14 10 6,6
    040152 CMS40ALIS 40 mm 16 12 6,6
    040153 CMS50ALIS 50 mm 21 16 9
    040154 CMS63ALIS 63 mm 21 16 9
    040155 CMS80ALIS 80 mm 25 20 11
    040156 CMS100ALIS 100 mm 25 20 11
    040157 CMS125ALIS 125 mm 37 30 13,5
    040158 CMS160ALIS 160 mm 43 35 18
    040159 CMS200ALIS 200 mm 43 35 18
