    Home / Pipe distributions / Straight coupling SQ male thread 1/2" - 28 mm

    Straight coupling SQ male thread 1/2" - 28 mm

    Code: SQ3-1228
    New
    Not rated
    330 Kč –3 %
    sq3 1228 potrubni system SQ rozvody vzduchu tlak kompresor
    330 Kč –3 % 320 Kč / pcs 264 Kč excl. VAT
    Stock (38 pcs)
    Delivery to:
    30.04.2025
    Delivery offer

    Straight socket coupling 22 mm for compressed air piping with external pipe thread G 1/2". Simple SQ socket system that can be disassembled and reused. No special tools are required for installation, which is quick and easy. Operating pressure -0.8 to 12.5 bar at -20/+70°C.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    TPAB 4M tyc trubka PA12 plast polyamid modra rozvody vzduch kompresor
    New
    1 285 Kč –3 %
    Plastic pipe PA12 in 4m rod 28/24 - 10 bar
    Stock (80 pcs)
    1 030 Kč excl. VAT
    1 246 Kč

    Plastic pipe PA12 for compressed air piping. Pipe size 28 / 24 mm with recommended operating pressure 10 bar. Classic blue colour as marking for air ducts. Easy connection with...

    Code: TPAB-T4-28
    TPAB R25 tyc trubka PA12 plast polyamid modra rozvody vzduch kompresor
    New
    7 423 Kč –2 %
    Plastic pipe PA12 in 25 m roll 28/24 - 10 bar
    Stock (16 pcs)
    5 951 Kč excl. VAT
    7 201 Kč

    Plastic roll 25 m - PA12 for compressed air piping. Pipe size 28 / 24 mm with recommended operating pressure 10 bar. Classic blue colour as marking for air ducts. Easy...

    Code: TPAB-R25-28
    gra nastrcne spojky poptrubi rozvody vzduchu kompresor tectite
    2 054 Kč –2 %
    Grilamid tube in 4 m rod 28 / 23 - 14 bar
    Stock (8 pcs)
    1 647 Kč excl. VAT
    1 993 Kč

    Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 28/23 mm with a recommended operating pressure of 14 bar. The classic blue colour for...

    Code: GRB-T4-28
    grilamid nastrcne spojky poptrubi rozvody vzduchu kompresor tectite
    12 488 Kč –2 %
    Grilamid pipe in roll 28 / 23 - 14 bar
    Stock (12 pcs)
    10 012 Kč excl. VAT
    12 114 Kč

    Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 28/23 mm with a recommended operating pressure of 14 bar. The classic blue colour for...

    Code: GRB-R25-28
    Aluminium pipe in 3 m bar 28/25 - 12,5 bar
    New
    765 Kč –3 %
    Aluminium pipe in 3 m bar 28/25 - 12,5 bar
    Stock (6 pcs)
    613 Kč excl. VAT
    742 Kč

    Powder-coated blue aluminium pipe of 28/25 mm in 3 m length for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

    Code: TALB-T3-28
    Aluminium pipe in 6 m bar 28/25 - 12,5 bar
    Tip
    1 530 Kč –3 %
    Aluminium pipe in 6 m bar 28/25 - 12,5 bar
    Stock (32 pcs)
    1 226 Kč excl. VAT
    1 484 Kč

    Powder-coated blue aluminium pipe of 28/25 mm in length 6 m for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

    Code: TALB-T6-28
    Dismantling pliers 28 mm
    188 Kč –3 %
    Dismantling pliers 28 mm
    Stock (1 pcs)
    150 Kč excl. VAT
    182 Kč

    Pliers for removing couplings of the Air Push pipe system with a pipe diameter of 28 mm.

    Code: DT-28
    Dismantling sleeve 28 mm
    47 Kč –4 %
    Dismantling sleeve 28 mm
    Stock (5 pcs)
    37 Kč excl. VAT
    45 Kč

    Removal sleeve for air distribution 28 mm. A simple sleeve that makes it easy to disassemble the air ducts. No special tools are required for the installation of the air...

    Code: DC-28
    Show all related products Previous product Next product

    Product detailed description

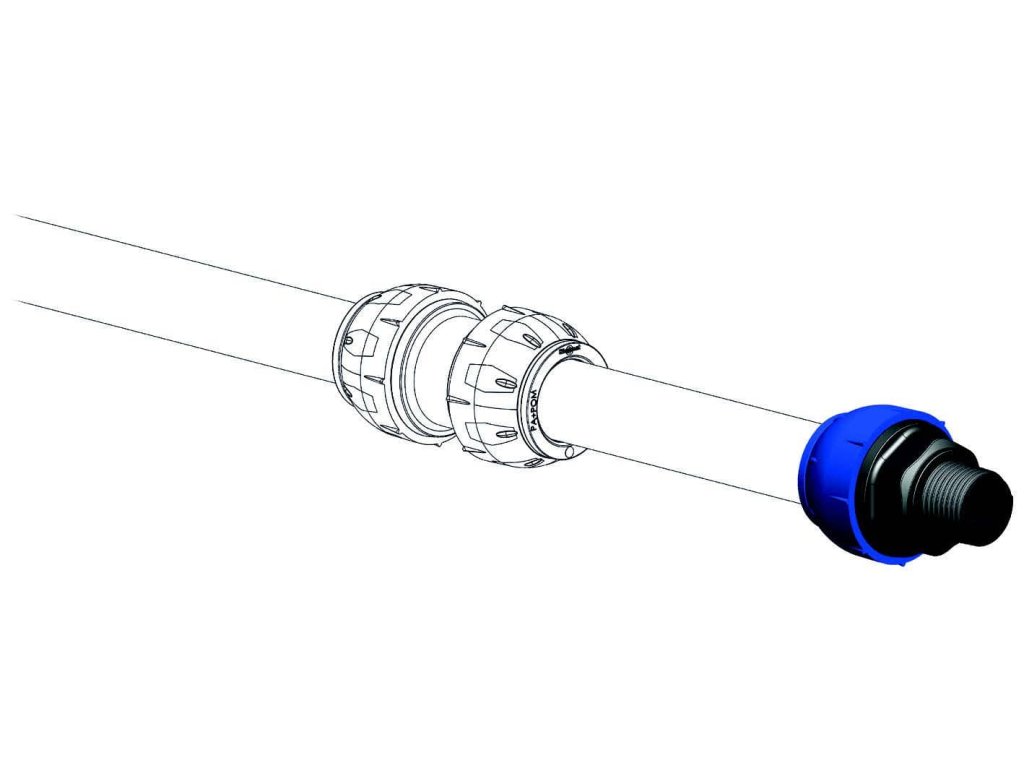

    Socket coupling for compressed air lines 28 mm - 1/2" - SQ3-1228

    • socket couplings for extremely fast pipe assembly
    • the joint is completed by simply pushing the pipe into the coupling
    • easy disassembly of the joint using a disassembly jig
    • made of nylon PA6, cutting ring made of stainless steel AISI 301, o-ring made of NBR
    • working pressure -0,8 to 12,5 bar, working temperature -20/+70 °C

    Additional parameters

    Category: Compressed air piping systems
    Pressure: 12.5 bar
    Working temperature: -30 / 70 °C
    Tube: 28 mm
    Thread: G 1/2"
    Conduit: 28 mm
    Pressure: 12.5 bar
    Working temperature: -30 / 70 °C
    Tube: 28 mm
    Thread: G 1/2"
    Conduit: 28 mm
    Dimension A: 47.5mm
    Dimension B: 67 mm

    Sicomat - SicoAirQuick
