    Přímá spojka SQ vnější závit 1/2" - 22 mm

    Code: SQ-1222
    New
    Not rated
    172 Kč –2 %
    sq3 1222 potrubni system SQ rozvody vzduchu tlak kompresor
    172 Kč –2 % 167 Kč / pcs 138 Kč excl. VAT
    Stock (21 pcs)
    Delivery to:
    09.04.2025
    Delivery offer

    Straight socket coupling 15 mm for compressed air piping with external pipe thread G 1/2". Simple SQ socket system that can be disassembled and reused. No special tools are required for installation, which is quick and easy. Operating pressure -0.8 to 12.5 bar at -20/+70°C.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    TPAB 4M tyc trubka PA12 plast polyamid modra rozvody vzduch kompresor
    New
    967 Kč –3 %
    Plastic pipe PA12 in 4m rod 22/18 - 10 bar
    Stock (56 pcs)
    775 Kč excl. VAT
    938 Kč

    Plastic pipe PA12 for compressed air piping. Pipe size 22/18 mm with recommended operating pressure 13 bar. Classic blue colour as marking for air ducts. Easy connection with...

    Code: TPAB-T4-22
    TPAB R25 tyc trubka PA12 plast polyamid modra rozvody vzduch kompresor
    New
    5 440 Kč –3 %
    Plastic pipe PA12 in 25 m roll 22 / 18 - 13 bar
    Stock (21 pcs)
    4 360 Kč excl. VAT
    5 276 Kč

    Plastic roll 25 m - PA12 for compressed air piping. Pipe size 22/18 mm with recommended operating pressure 13 bar. Classic blue colour as marking for air ducts. Easy connection...

    Code: TPAB-R25-22
    gra nastrcne spojky poptrubi rozvody vzduchu kompresor tectite
    1 309 Kč –2 %
    Grilamid tube in 4 m rod 22 /18 - 15 bar
    Stock (20 pcs)
    1 050 Kč excl. VAT
    1 270 Kč

    Tube made of grilamid PA12 for plastic design of compressed air pipelines. Pipe dimensions 22/18 mm with a recommended operating pressure of 15 bar. The classic blue colour for...

    Code: GRB-T4-22
    grilamid nastrcne spojky poptrubi rozvody vzduchu kompresor tectite
    7 885 Kč –3 %
    Grilamid pipe in roll 22 / 18 - 15 bar
    Stock (1 pcs)
    6 321 Kč excl. VAT
    7 648 Kč

    Tube made of PA12 grilamid for plastic design of compressed air pipelines. Pipe dimensions 22/18 mm with a recommended operating pressure of 15 bar. The classic blue colour for...

    Code: GRB-R25-22
    Aluminium pipe in 3 m bar 22/19 - 12,5 bar
    New
    594 Kč –3 %
    Aluminium pipe in 3 m bar 22/19 - 12,5 bar
    Stock (5 pcs)
    476 Kč excl. VAT
    576 Kč

    Powder-coated blue aluminium pipe of 22 / 19 mm in 3 m length for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

    Code: TALB-T3-22
    Aluminium pipe in 6 m bar 22/19 - 12,5 bar
    Tip
    1 187 Kč –2 %
    Aluminium pipe in 6 m bar 22/19 - 12,5 bar
    Stock (28 pcs)
    952 Kč excl. VAT
    1 152 Kč

    Powder-coated blue aluminium pipe of 22 / 19 mm in length 6 m designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material - AW-6060 T6 alloy.

    Code: TALB-T6-22
    Dismantling pliers 22 mm
    193 Kč –2 %
    Dismantling pliers 22 mm
    Stock (1 pcs)
    155 Kč excl. VAT
    188 Kč

    Pliers for dismantling Air Push pipe couplings with pipe diameter 22 mm.

    Code: DT-22
    Dismantling sleeve 22 mm
    40 Kč –2 %
    Dismantling sleeve 22 mm
    Stock (4 pcs)
    32 Kč excl. VAT
    39 Kč

    Removal sleeve for air distribution 22 mm. A simple sleeve that makes it easy to disassemble the air ducts. No special tools are required for the installation of the air...

    Code: DC-22
    Show all related products Previous product Next product

    Product detailed description

    Socket coupling for compressed air lines 15 mm - 1/2" - SQ-3815

    • socket couplings for extremely fast pipe assembly

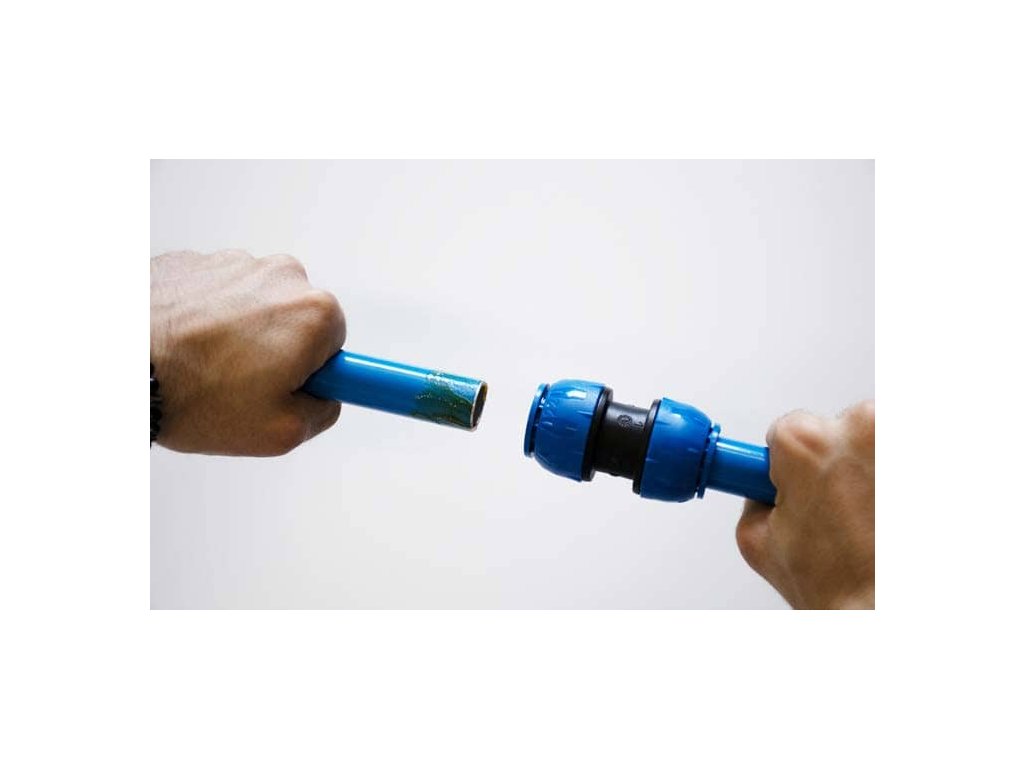

    • the joint is completed by simply pushing the pipe into the coupling

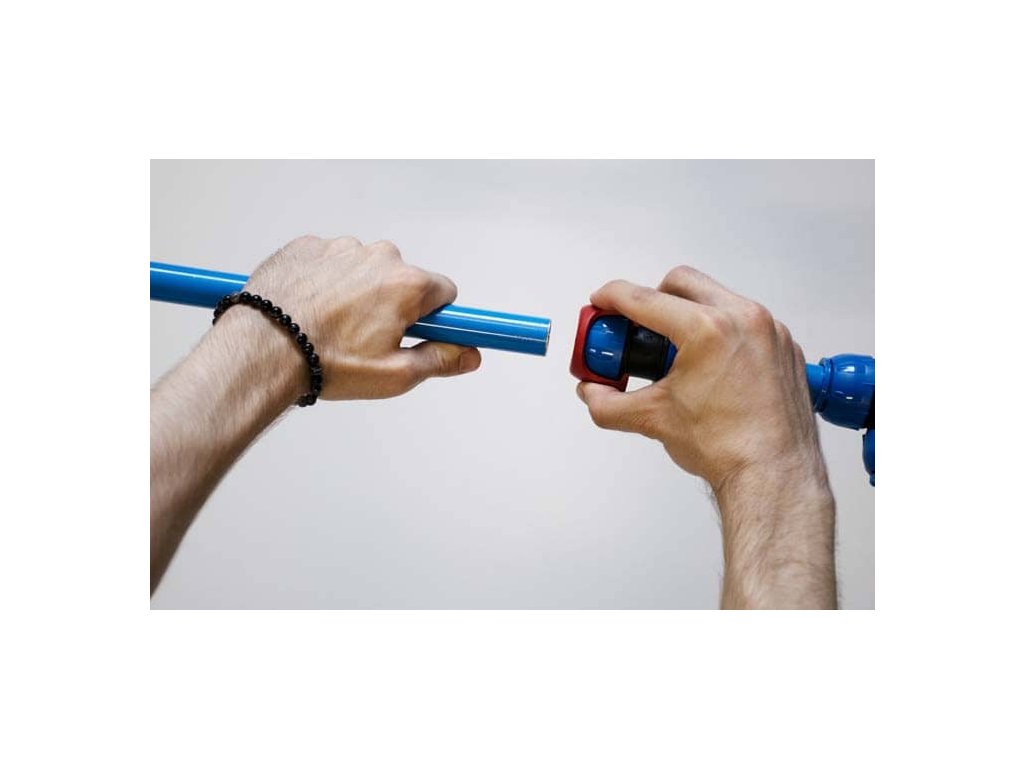

    • easy disassembly of the joint using a disassembly jig
    • made of nylon PA6, cutting ring made of stainless steel AISI 301, o-ring made of NBR
    • working pressure -0,8 to 12,5 bar, working temperature -20/+70 °C

    Additional parameters

    Category: Spojky potrubních rozvodů stlačeného vzduchu SQ
    Pressure: 12.5 bar
    Working temperature: -30 / 70 °C
    Tube: 22 mm
    Thread: G 1/2"
    Conduit: 22 mm
    Pressure: 12.5 bar
    Working temperature: -30 / 70 °C
    SW: 22
    Tube: 15 mm
    Thread: G 3/8"
    Conduit: 15 mm

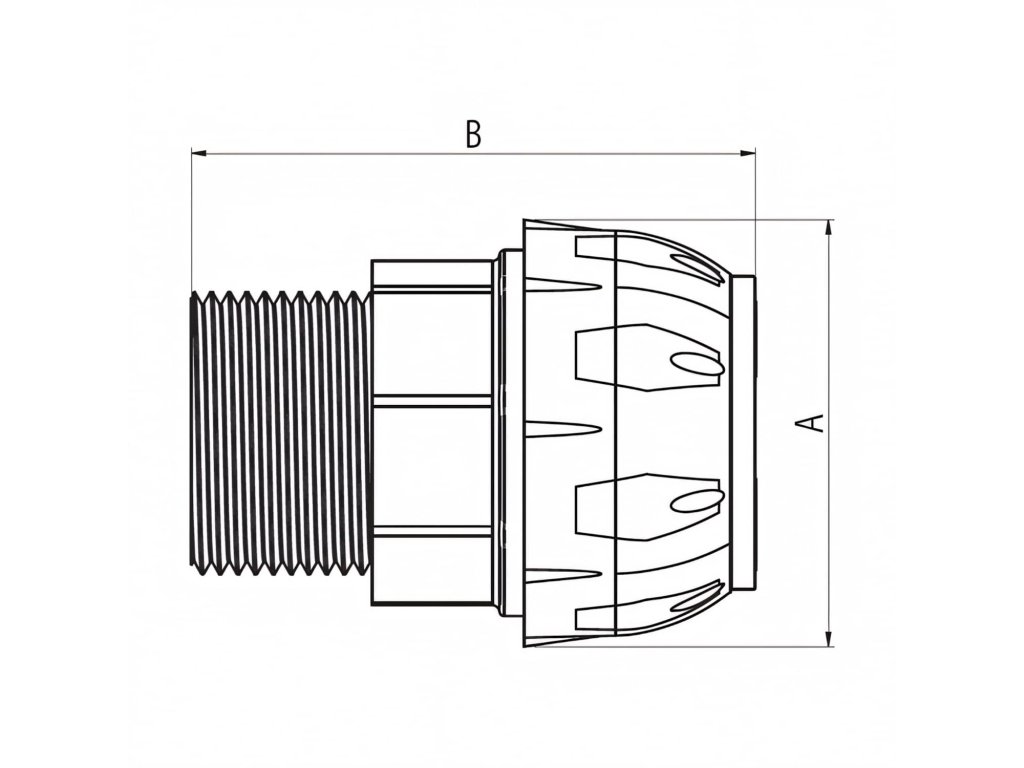

    Dimension A: 30.5 mm
    Dimension B: 46 mm
