Pilot boxes C20 T1-5
Code: C20-T1-5-230VAC C20-T1-5-24VDC Choose variant
Product detailed description

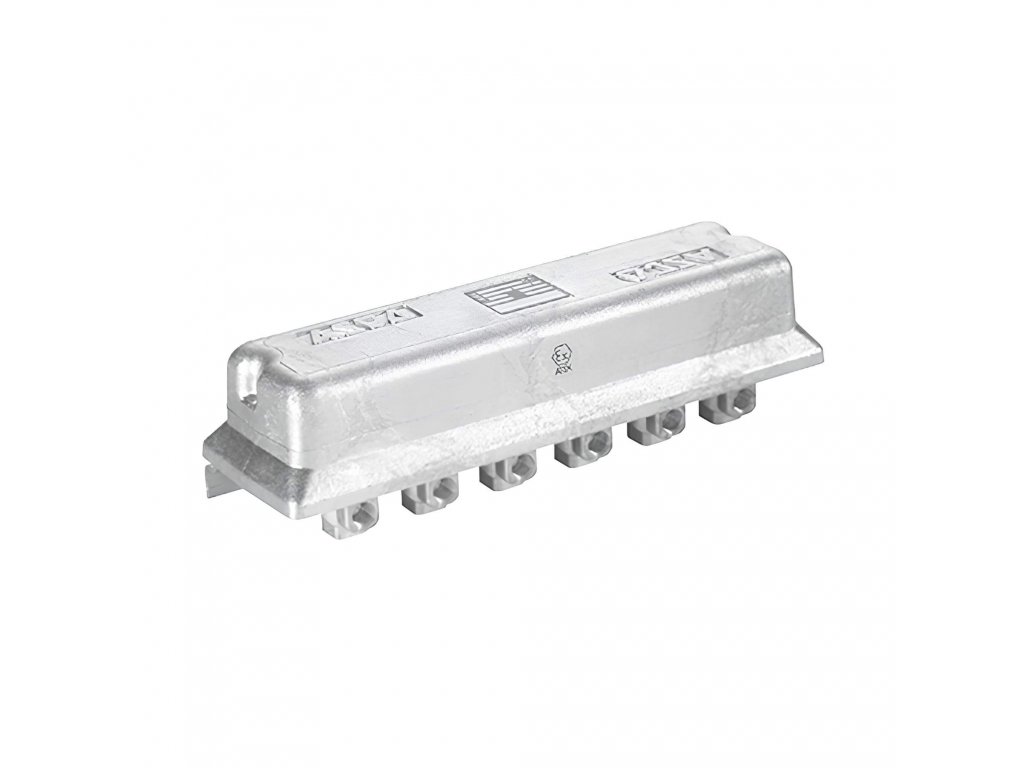

Pilot box with integrated pilot valves C20 T1-5
- 2/2 NC function
- 5 valves
- with one heating element
- connection thread G1/4"
- clearance DN 5.6
- flow rate Kv 11,8 l/min
- minimum pressure 0 bar
- minimum temperature -15°C
- material aluminum
Additional parameters
| Category: | C20 pilot boxes with integrated pilot valves |
|---|---|
| Pressure: | 7 bar |
| Coil: | 24 V AC, 24 V DC, 115V AC, 230 V AC |
| Functions: | 2/2 NC |
| Material: | Steel |
| Medium: | Air |
| Flow: | 11.8 l/min |
| Brightness DN: | 5,6 |
| Seals: | NBR |
| Thread: | G 1/4" |
| Management: | Directly controlled |
