Miniature ejector AZH-05 (-88 kPa) push-in coupling 6 mm
Code: AZH05BS-06Product detailed description
Ejector AZH05BS-06
- designed to create a vacuum in small isolated vacuum systems
- connection via integrated socket couplings
- design with integrated silencer
- vacuum level 88 -kPa
Additional parameters
Category: | Ejectors type AZH with integrated exhaust |
---|---|
Max. vacuum: | -88 kPa |
Nozzle diameter: | 0.5 mm |

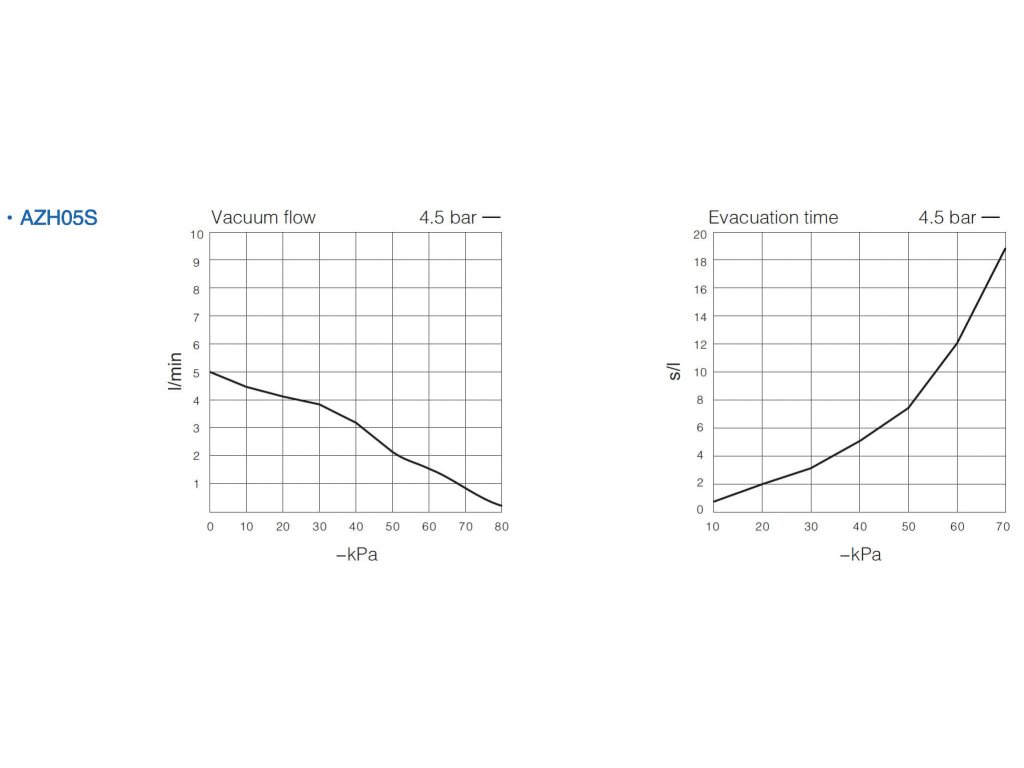

Vacuum flow: | 5 l/min |
Exhaust connection: | integrated silencer |
Vacuum connection: | 6 mm |
Air connection: | 6 mm |
Spotřeba vzduch: | 13.5 l/min |
Air pressure: | 4.5 bar |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
![]() |
Airbest develops and innovatesThe main production item of the Chinese company Airbest is components and products from the field of vacuum technology. This company combines technological research and subsequent development of components, mainly applied in the automation industry and industrial robotics. Within the production process, Airbest tries to pay particular attention to customer requirements, while not forgetting the most modern technological processes, within which it prioritizes safety, efficiency and environmental friendliness. The company was founded in 2006 and is gaining more and more popularity on the market, as evidenced by several dozen honorary certificatesthat Airbest is proud of on its official website. |
German quality and Chinese economyThe biggest advantage of products from the company Airbest is their high compatibility and usability as replacement parts for products from other brands, such as PIAB, SMC, PARKER, SCHMALZ and other manufacturers of vacuum technology. At the same time, the components do not lose their quality, mainly thanks to cooperation with the German manufacturer of linear drives MEDAN GmbH. Combined with China's low-cost manufacturing capability, these are products with a very affordable price tag. If required, a detailed catalogue with drawings and data is available. |
![]() |
The company's program Airbest consists of the following basic product groups:
- ejectors and vacuum pumps
- vacuum filtration equipment
- suction cups
- screw fitting for suction cups
- vacuum valves and vacuum switches
