Side manometer 0/160 bar - 100 mm - M20*1.5
Code: MS07-20
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense
Related products
Product detailed description

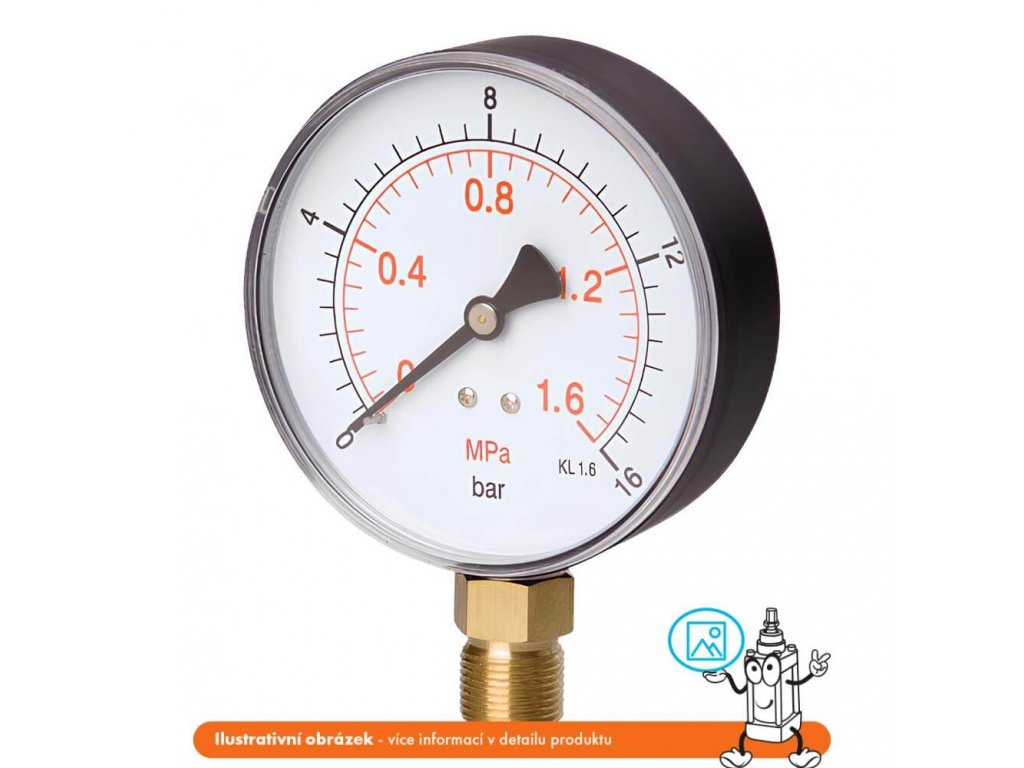

Basic plastic manometer MS07-20
- Materials used : plastic body, copper alloy measuring element and pointer, acrylic windscreen
- Basic design of pressure gauges with side connection, designed for pressure measurement of non-aggressive media with lower requirements for mechanical resistance of the instrument
- Manometers with diameter 100 mm in plastic with thread M20*1,5
- Accuracy class 1.6% with temperature range -40/+60
Additional parameters
| Category: | Plastic manometers MS100M |
|---|---|
| Version: | Plastic manometers |
| Connecting: | party |
| Windscreen: | Acrylic |
| Material: | Plastic |
| Medium: | Air, Water |
| Measuring member: | Brass |
| Average: | 100 mm |
| Scope: | 0 to 160 bar |
| Temperature: | -40/+60°C |
| Accuracy class: | 1,6 % |
| Thread: | M20 x 1.5 |
| Glycerin damping: | No |
