Cast iron piston compressor WK550-4-0/100P příkon 3 kW, sací výkon 530 l/min, tlak 10 bar, vzdušník 200 l, napětí 400/50 V/Hz
Code: WK550-4-0/100P
Related products
Product detailed description
Walter WK550-4,0/100P - Professional compressor for workshops and industrial plants
The Walter WK550-4.0/100P is a powerful reciprocating compressor with a 100 litre air tank that provides a large supply of compressed air for stable and efficient operation. This model is ideal for garages, workshops and industrial applications where continuous air supply is required without frequent engine switching.
🔧 Technical specifications
- Power: 3.0 kW (4 HP)
- Power supply: 400 V (three-phase)
- Suction power: 550 l/min
- Discharge: 440 l/min
- Maximum pressure: 10 bar
- Volume of air tank: 100 litres (horizontal)
- Number of cylinders/stages: 3/1 (three-cylinder single-stage unit)
- Noise level: ~80 dB(A)
- Weight: ~95 kg
✅ Benefits for customers
🔹 100 litre air reservoir - sufficient air supply for smooth operation.
🔹 Cast iron three-cylinder aggregate - robust construction for long service life.
🔹 Low speed (~1200 rpm) - quieter running, lower wear and higher reliability.
🔹 Three-phase power supply (400 V) - stable performance even under long-term load.
🔹 Mobile design - wheels and handle allow easy handling.
🚀 Modernization and innovation
The new generation of the WK 550 piston unit delivers greater efficiency, reliability and longer life thanks to the following innovations:
✅ More precise machining of parts - lower oil consumption, better piston tightness.
✅ Improved suction filter with metal insert - higher filtration efficiency, longer service intervals.
✅ Reinforced piston rings and valves - more reliable performance in long-term operation.
✅ Steel filter cover - better protection against mechanical damage and higher heat resistance.
🏭 Ideal use
The Walter WK550-4.0/100P is designed for applications where a stable air supply and long duty cycle without frequent switching are required.
✔ Garages and tire shops - ideal for tire tightening, tire inflation and paint jobs.
✔ Craft workshops and industrial plants - stable air supply for various working tasks.
✔ Painting and sandblasting - 100 litre air tank ensures continuous pressure without frequent pressurisation.
✔ Construction and assembly applications - efficient operation in construction and assembly work.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 2 years |
| EAN: | 5905122000103 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 550 l/min |
| Displacement: | 440 l/min |
| Pressure vessel volume: | 100 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN7.2, Ball valve 1/2" |
| Motor power: | 3.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,202 rpm |
| Number of cylinders: | 3 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 80dB(A) |
| Dimensions: | 1460 x 640 x 1150 mm |
| Weight: | 115 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |

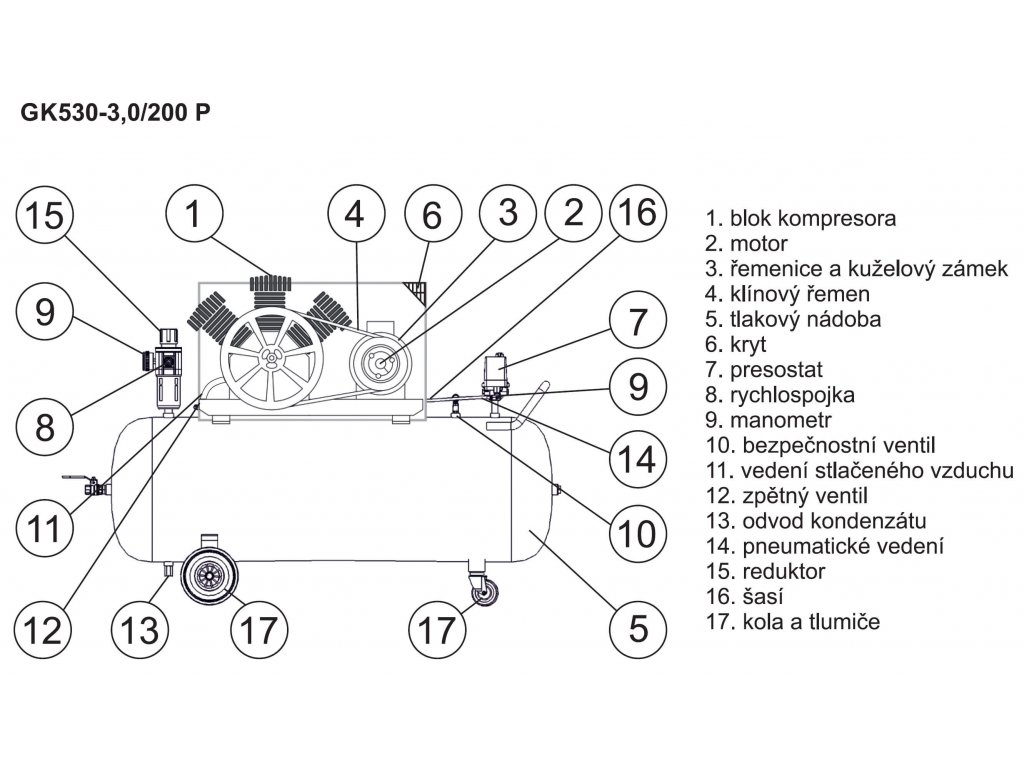

Demonstrace výkonu litinového pístového kompresoru GK530-30-200 🌟🔩
