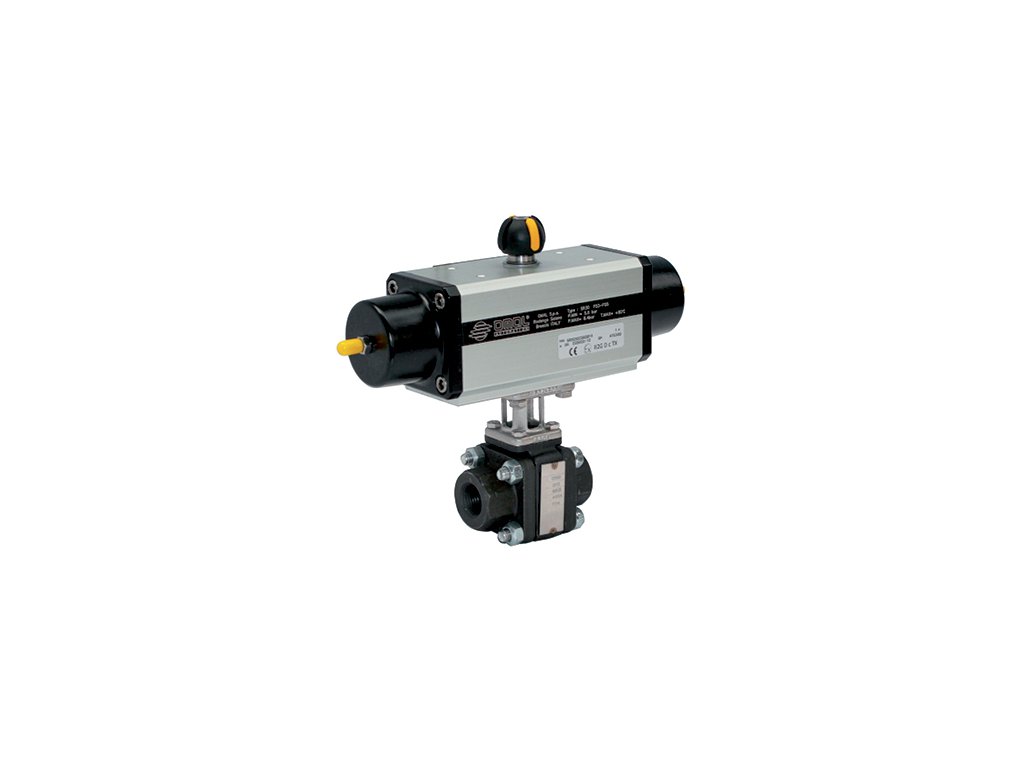

Ball valve K809 with single-acting drive - DN8
Code: K809W-008SR
Product detailed description
Ball valve K809W-008SR
- carbon steel ball valve in single acting SR design
- pTFE+CG seals for temperatures up to 250°C
- actuator operating pressure of at least 5.5 bar
- connection with welds
- for sealing of pipelines with moderately aggressive media and high pressure
Additional parameters
| Category: | Ball valves K809 with pneumatic actuator |
|---|---|
| Pressure: | 140 bar |
| Connecting: | Boiled water |
| Material: | Carbon steel |
| Medium: | Air, Water, Slightly aggressive media |
| Standard: | EN 10204-3.1, ISO 5211 |
| Brightness DN: | 8 |
| Seals: | PTFE, CG |
| Drive type: | Single-acting pneumatic actuator |
| Controls: | Pneumatic drive |
| Design of fittings: | Direct, Automated, Three-part |
