Compressed air treatment unit metal up to 18 bar - 1/4"
Code: WE14Related products
Product detailed description

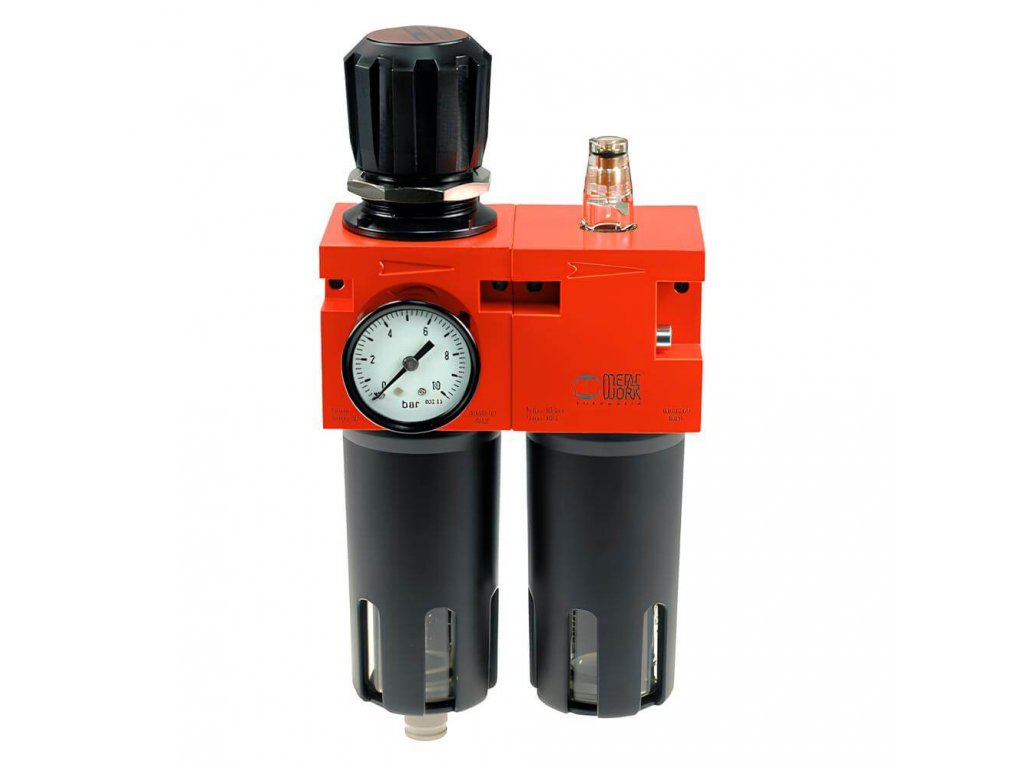

Compressed air treatment unit up to 18 bar - WE14
- Pressure regulators : high stability of output pressure, choice of mounting, equipped with locking
- FIltry : separation of dirt and condensate by centrifugal acceleration, semi-automatic discharge
- Oilers : for continuous oil supply with the possibility of regulation
- Controllers with filter : compact design - saves space and costs
- Treatment units : comprehensive treatment in one unit, all the advantages of separate parts
- Applications especially in industry, laboratory, measuring and control technology
- Manometer and other accessories not included - order separately
Additional parameters
| Category: | Compressed air treatment units up to 18 bar |
|---|---|
| Version: | Complete unit |
| Pressure: | 18 bar |
| Dimensions: | 190 x 84 mm |
| Filtering ability: | 20 um |
| Filter insert: | Replacement insert 20 um (VFK120) |
| Medium: | Compressed air |
| Vessel volume: | filter - 10, oil - 50 cc |
| Condensate discharge: | Semi-automatic |
| Working temperature: | -10 / 50 °C |
| Flow: | 800 l/min |
| Regulatory range: | 0 - 12 bar |
| Thread: | G 1/4" |
| Thread for manometer: | 1/8" |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
The company employs more than 700 peopleThe company Metal Work has been engaged in the production of devices for treating compressed air and fittings since 1967, when it first started its operations. Since then, the Italian manufacturer has evolved over several decades to finally become one of the leading tyre manufacturers. Today, it employs over 350 people at its plant, with another 4 hundred working in its Italian and foreign offices. Expert and competent advice and availability of services is ensured by our extensive network of 46 branches in Italy and abroad, with which we cooperate. Currently, you can find the brand Metal Work on the following products: actuators, valves, adjustment units, fittings and accessories and pneumatic actuator KIT. |
 |
 |
The certificate guarantees quality assurance
Over the years, the entire production process has increased in quality to such an extent that the brand has become synonymous with certainty and quality in its field. In advance, the development department ensures that the most advanced technologies that the market will require in the future are always taken care of with confidence. The quality of the products themselves was certified by the German DEKRA (TGA) when their products were awarded ISO 9001 certification in 1992. Another certificate, this time in the environmental field, was obtained by the company in accordance with ISO 14001 in 2001.
