Threaded cylinders MCN 6mm

Code: 6/5MCN 6/10MCN 6/15MCN Choose variant
1 120 Kč 1 155 Kč 1 176 Kč from 1 120 Kč –5 % –4 % –4 % up to –5 %
Threaded cylinders MCN 6mm
1 120 Kč 1 155 Kč 1 176 Kč from 1 120 Kč –5 % –4 % –4 % up to –5 % 1 064 Kč / pcs 1 098 Kč / pcs 1 118 Kč / pcs from 1 064 Kč / pcs 879 Kč excl. VAT 907 Kč excl. VAT 924 Kč excl. VAT from 879 Kč excl. VAT
up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.12.2024 11.12.2024 11.12.2024 Choose variant

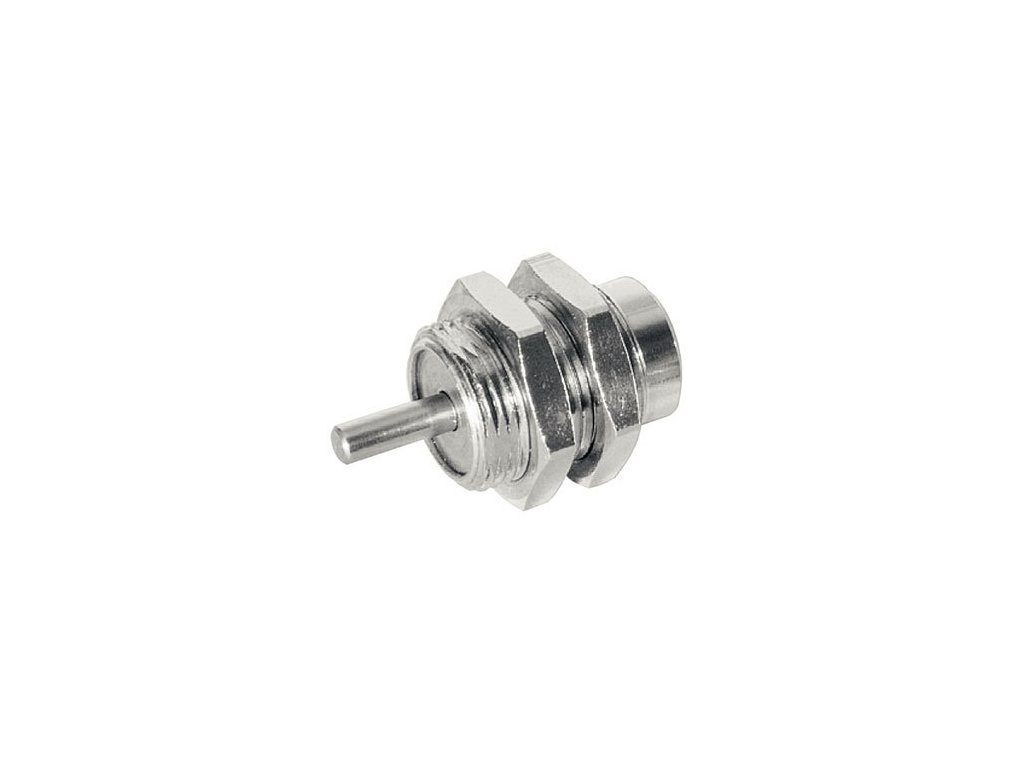

MCN threaded cylinders 6 mm diameter with threadless piston rod. Without magnet and without damping in the end positions.

Detailed information

Product detailed description

Threaded cylinders MCN 6 mm

  • diameter 6 mm
  • strokes 5, 10, 15 mm
  • connection using M5 thread
  • pressure 2 - 7 bar
  • made of brass and stainless steel

Additional parameters

Category: Threaded cylinders MC
Version: Single acting cylinders
Pressure: 7 bar
Connecting: M5
Magnet: without magnet
Piston rod material: Stainless steel AISI303
Profile material: Brass
Average: 6 mm
Temperature: -20/+80°C
Seals: PU
Cylinder thrust: 14 N
Cylinder type: Threaded
Stroke selection: 5, 10, 15 mm
Thread in the body: M10 x 1
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
