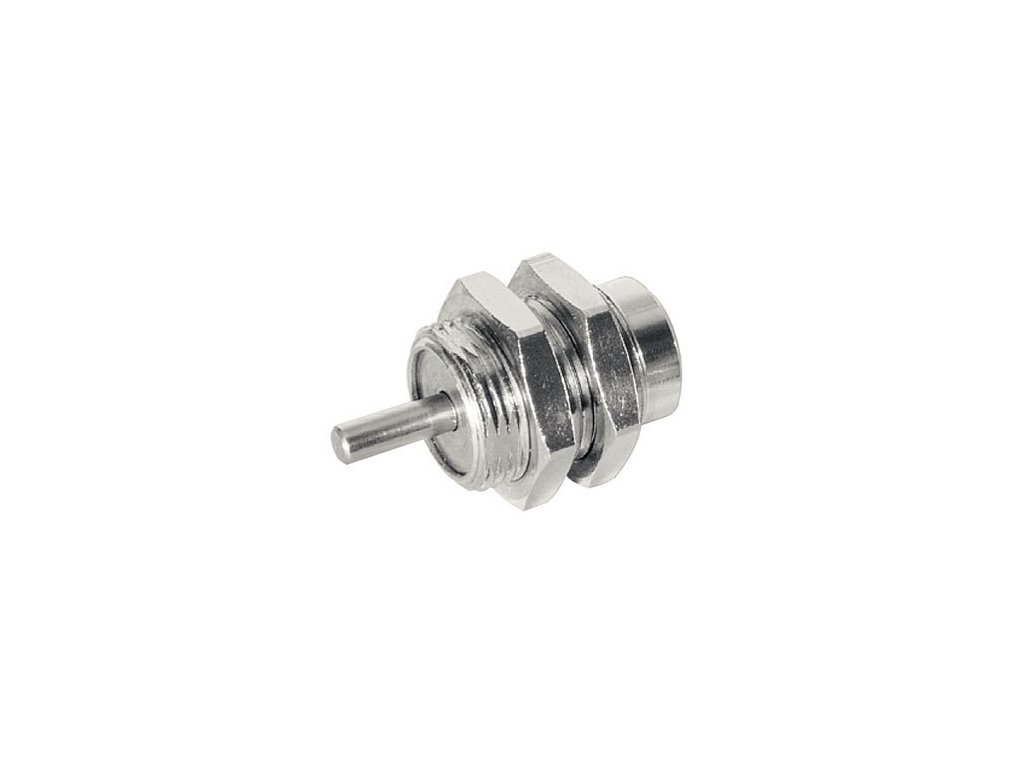

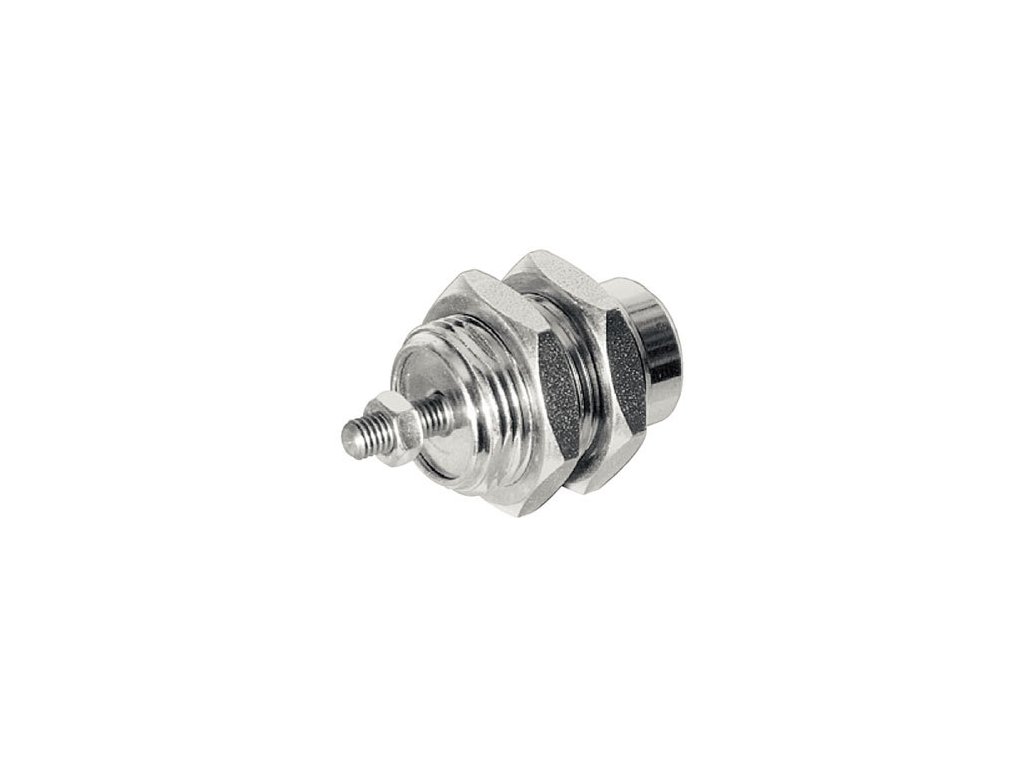

Threaded cylinders MCF 16mm

Code: 16/5MCF 16/10MCF 16/15MCF Choose variant
1 325 Kč 1 343 Kč 1 359 Kč from 1 325 Kč –4 % –4 % –5 % up to –5 %
Threaded cylinders MCF 16mm
1 325 Kč 1 343 Kč 1 359 Kč from 1 325 Kč –4 % –4 % –5 % up to –5 % 1 259 Kč / pcs 1 276 Kč / pcs 1 291 Kč / pcs from 1 259 Kč / pcs 1 040 Kč excl. VAT 1 055 Kč excl. VAT 1 067 Kč excl. VAT from 1 040 Kč excl. VAT
up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 18.10.2024 18.10.2024 Choose variant
MCF threaded cylinders 16 mm diameter with external thread on piston rod. Without magnet and without damping in the end positions.

Detailed information

Product detailed description

MCF threaded cylinders 16 mm

  • diameter 16 mm
  • strokes 5, 10, 15 mm
  • connection using M5 thread
  • pressure 2 - 7 bar
  • made of brass and stainless steel

Additional parameters

Category: Threaded cylinders MC
Version: Single acting cylinders
Pressure: 7 Bar
Connecting: M5
Magnet: without magnet
Piston rod material: Stainless steel AISI303
Profile material: Brass
Average: 16 mm
Temperature: -20/+80°C
Seals: PU
Cylinder thrust: 109 N
Cylinder type: Threaded
Stroke selection: 5, 10, 15 mm
Connecting rod thread: M5
Thread in the body: M22 x 1.5
Minimální tlak: 2 bar
