Threaded cylinders MCF 10mm

Code: 10/5MCF 10/10MCF 10/15MCF Choose variant
1 176 Kč 1 209 Kč 1 240 Kč from 1 176 Kč –4 % –4 % –5 % up to –5 %
Threaded cylinders MCF 10mm
1 176 Kč 1 209 Kč 1 240 Kč from 1 176 Kč –4 % –4 % –5 % up to –5 % 1 118 Kč / pcs 1 149 Kč / pcs 1 178 Kč / pcs from 1 118 Kč / pcs 924 Kč excl. VAT 950 Kč excl. VAT 974 Kč excl. VAT from 924 Kč excl. VAT
Stock (1 pcs) up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
30.09.2024 18.10.2024 18.10.2024 Choose variant

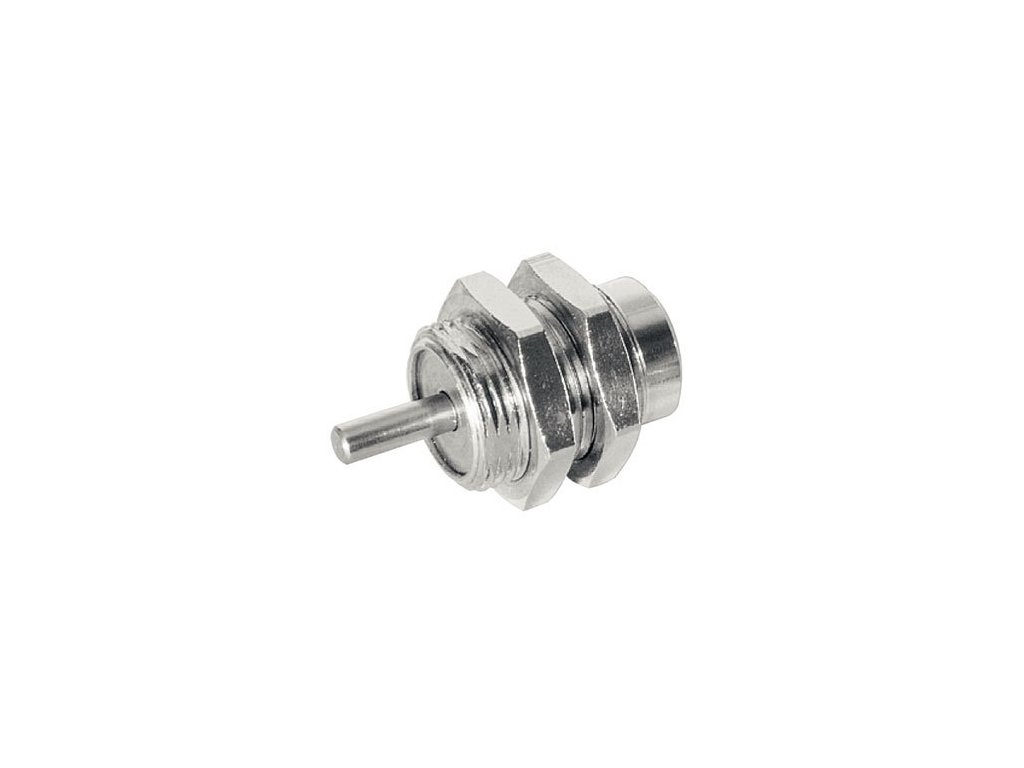

MCF threaded cylinders 10 mm diameter with external thread on piston rod. Without magnet and without damping in the end positions.

Detailed information

Product detailed description

MCF 10 mm threaded cylinders

  • diameter 10 mm
  • strokes 5, 10, 15 mm
  • connection using M5 thread
  • pressure 2 - 7 bar
  • made of brass and stainless steel

Additional parameters

Category: Threaded cylinders MC
Version: Single acting cylinders
Pressure: 7 Bar
Connecting: M5
Magnet: without magnet
Piston rod material: Stainless steel AISI303
Profile material: Brass
Average: 10 mm
Temperature: -20/+80°C
Seals: PU
Cylinder thrust: 42 N
Cylinder type: Threaded
Stroke selection: 5, 10, 15 mm
Connecting rod thread: M4
Thread in the body: M15 x 1.5
Minimální tlak: 2 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
