    External plug 10

    Code: PPF-10
    Tip
    Not rated
    41 Kč –12 %
    External plug 10
    41 Kč –12 % 36 Kč / pcs 30 Kč excl. VAT
    Stock (303 pcs)
    Delivery to:
    22.11.2024

    Socket coupling as plug for quick and easy mounting on 10 mm plastic tubing. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

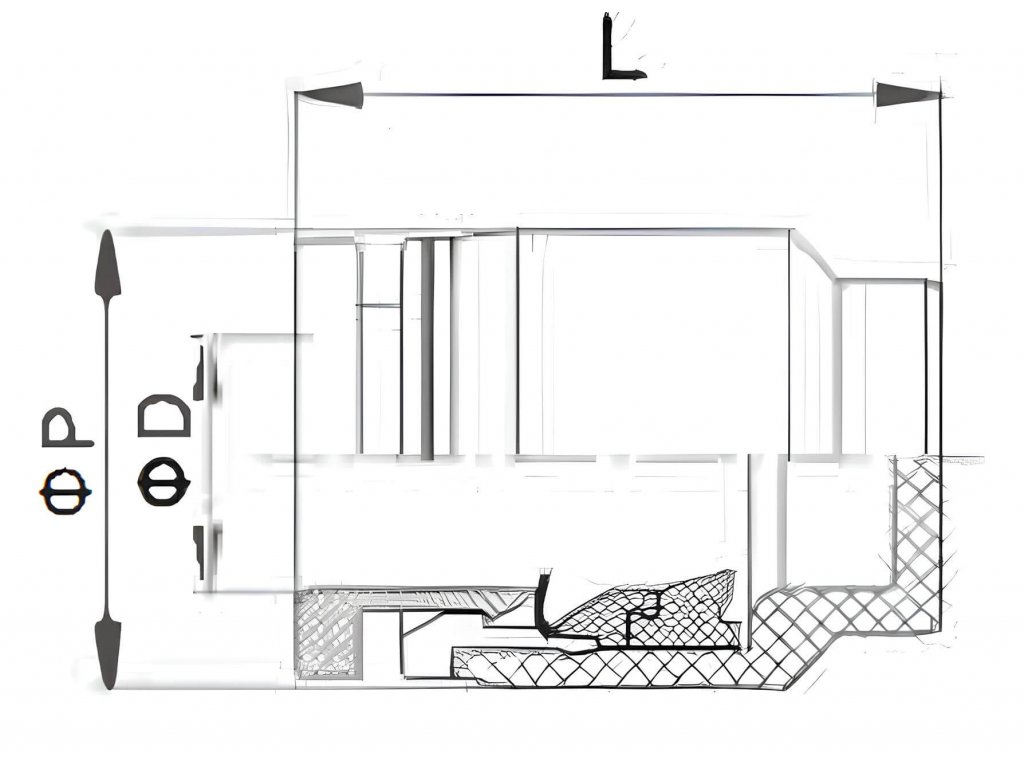

    Outer socket for plastic hoses 10 mm

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: External plastic plug-in plugs
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Average: 18 mm
    Connection system: Plug-in system
    Sealing ring made of elastomer and brass DR-12EL
    40 Kč –5 %
    Sealing ring made of elastomer and brass DR-12EL
    Stock (20 pcs)
    31 Kč excl. VAT
    38 Kč

    Designed for G 1/2" thread. The inner diameter is 20.8 mm and the outer diameter is 26.3 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12EL
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    157 Kč –2 %
    Dutchman fitting with internal threads R1"
    Stock (7 pcs)
    126 Kč excl. VAT
    153 Kč

    Holendr cast iron fitting with internal threads R 1" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-10
    Sealing ring made of Teflon PTFE DR-34TE
    20 Kč –5 %
    Sealing ring made of Teflon PTFE DR-34TE
    up to 14 days
    16 Kč excl. VAT
    19 Kč

    Designed for G 3/4" thread. The inner diameter is 26.5 mm and the outer diameter is 33.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-34TE
    Copper sealing ring DR-54CU
    40 Kč –5 %
    Copper sealing ring DR-54CU
    up to 14 days
    31 Kč excl. VAT
    38 Kč

    Designed for G 1 1/4" thread. The inner diameter is 42 mm and the outer diameter is 49 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-54CU
    Copper sealing ring DR-15CU
    51 Kč –5 %
    Copper sealing ring DR-15CU
    Stock (15 pcs)
    40 Kč excl. VAT
    48 Kč

    Designed for G 1 1/2" thread. The inner diameter is 48 mm and the outer diameter is 55 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-15CU
    Sealing ring made of Teflon PTFE DR-14TE
    Sealing ring made of Teflon PTFE DR-14TE
    Stock (50 pcs)
    6 Kč excl. VAT
    7 Kč

    Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14TE
    Sealing ring made of elastomer and brass DR-18EL
    28 Kč –3 %
    Sealing ring made of elastomer and brass DR-18EL
    Stock (50 pcs)
    22 Kč excl. VAT
    27 Kč

    Designed for G 1/8" thread. The inner diameter is 10.1 mm and the outer diameter is 14.7 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-18EL
    Sealing ring made of elastomer and brass DR-14EL
    28 Kč –7 %
    Sealing ring made of elastomer and brass DR-14EL
    Stock (30 pcs)
    21 Kč excl. VAT
    26 Kč

    Designed for G 1/4" thread. The inner diameter is 5.3 mm and the outer diameter is 8.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14EL
    Quick coupling nickel-plated mandrel 13 mm
    Tip
    323 Kč –4 %
    Quick coupling nickel-plated mandrel 13 mm
    Stock (18 pcs)
    254 Kč excl. VAT
    307 Kč

    Nickel-plated quick couplings DN7,2 with shank for hose with 13 mm inner diameter. Version in nickel-plated brass MS 58 with one-way closable valve. New mandrel contour for...

    Code: ESN13T
    Sealing ring made of Teflon PTFE DR-38TE
    13 Kč –7 %
    Sealing ring made of Teflon PTFE DR-38TE
    Stock (25 pcs)
    10 Kč excl. VAT
    12 Kč

    Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38TE
    Sealing ring from Teflon PTFE DR-10TE
    23 Kč –4 %
    Sealing ring from Teflon PTFE DR-10TE
    Stock (20 pcs)
    18 Kč excl. VAT
    22 Kč

    Designed for G 1" thread. The inner diameter is 33.5 mm and the outer diameter is 39.1 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-10TE
    Sealing ring made of Teflon PTFE DR-18TE
    Sealing ring made of Teflon PTFE DR-18TE
    Stock (20 pcs)
    5 Kč excl. VAT
    6 Kč

    Designed for G 1/8" thread. The inner diameter is 10.3 mm and the outer diameter is 13.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-18TE
    Copper sealing ring DR-20CU
    88 Kč –5 %
    Copper sealing ring DR-20CU
    up to 14 days
    69 Kč excl. VAT
    83 Kč

    Designed for G 2" thread. The inner diameter is 60 mm and the outer diameter is 68 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-20CU
    Copper sealing ring DR-12CU
    9 Kč –11 %
    Copper sealing ring DR-12CU
    Stock (3 pcs)
    7 Kč excl. VAT
    8 Kč

    Designed for G 1/2" thread. The inner diameter is 21 mm and the outer diameter is 26 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12CU
    Copper sealing ring DR-38CU
    Copper sealing ring DR-38CU
    Stock (30 pcs)
    6 Kč excl. VAT
    7 Kč

    Designed for G 3/8" thread. The inner diameter is 17 mm and the outer diameter is 22 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38CU
    Sealing ring made of Teflon PTFE DR-12TE
    13 Kč –7 %
    Sealing ring made of Teflon PTFE DR-12TE
    Stock (58 pcs)
    10 Kč excl. VAT
    12 Kč

    Designed for G 1/2" thread. The inner diameter is 21.3 mm and the outer diameter is 28.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12TE
