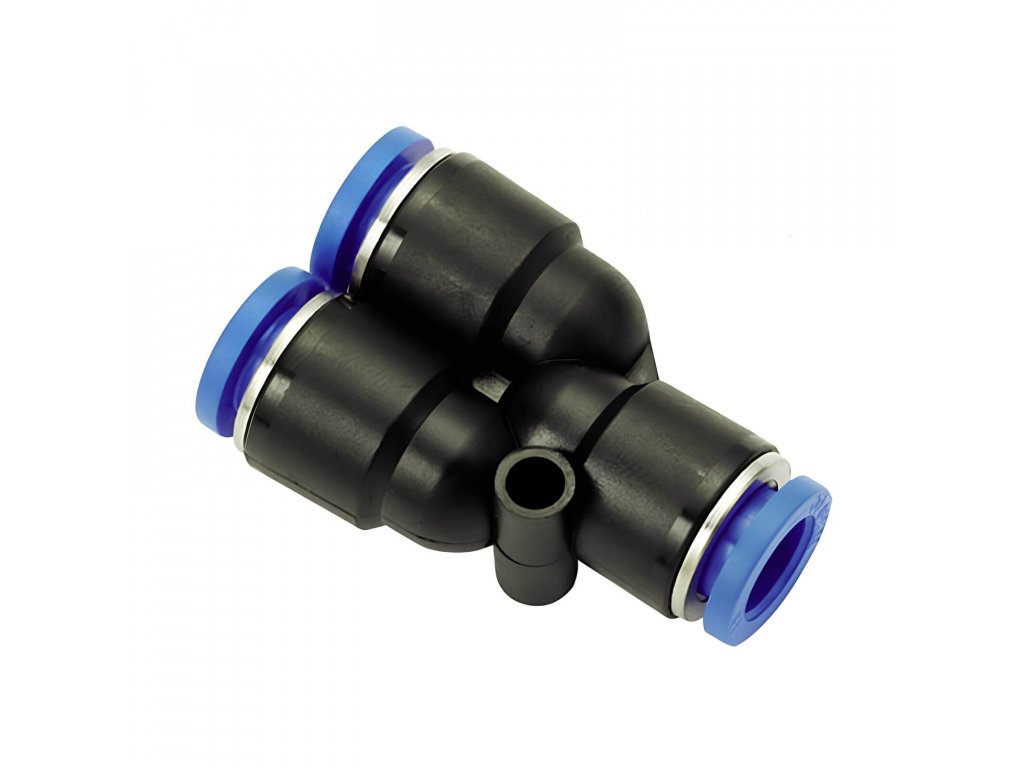

    Y-coupling reduced 4 - 8

    Code: PW-48
    Tip
    Not rated
    61 Kč –11 %
    Y-coupling reduced 4 - 8
    61 Kč –11 % 54 Kč / pcs 45 Kč excl. VAT
    Stock (619 pcs)
    Delivery to:
    22.11.2024

    Y-socket for quick fitting of 4 mm diameter plastic tubing with 8 mm reduction. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

    Detailed information

    Product detailed description

    Y-coupling for easy installation of 4 mm tubing with reduced 8 mm outlet

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Y-joint reduced
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Reducing: 8 mm
    Width: 25 mm
    Connection system: Plug-in system
