Y-connector 8 - R1/2"

Code: PWT-128

Tip

Not rated

Brand: Pneumatics & Hydraulics

209 Kč –10 %

209 Kč –10 % 188 Kč / pcs 155 Kč excl. VAT

(427 pcs)

Delivery to: 22.11.2024

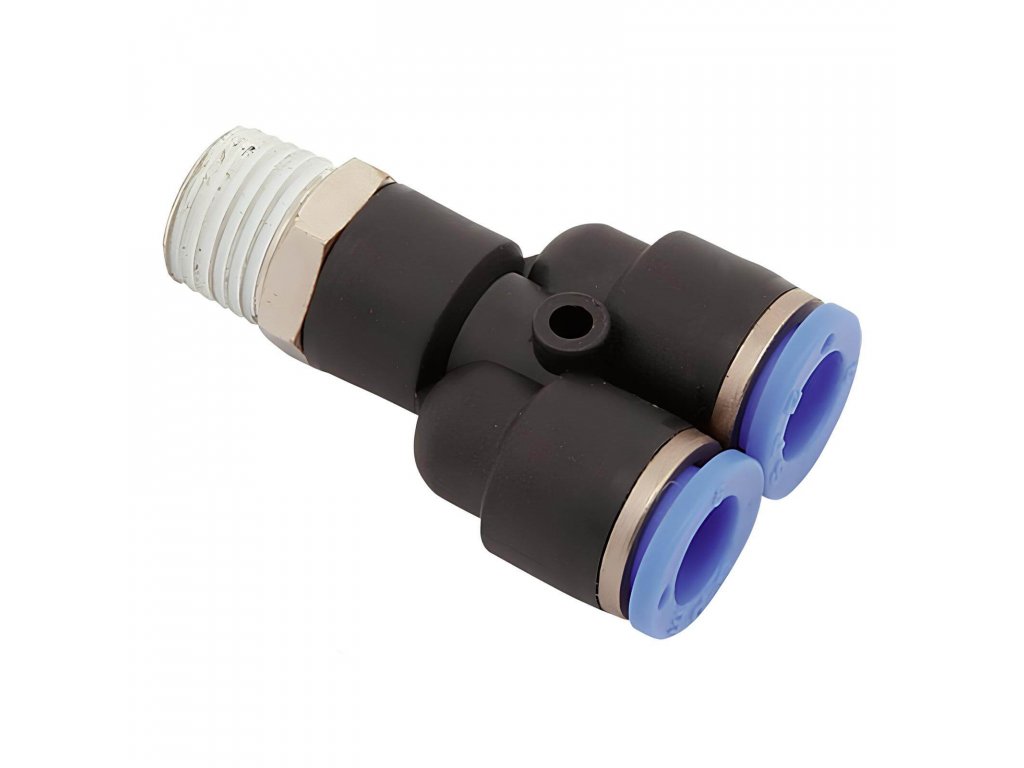

Swivel y-coupling with 1/2" male tapered thread for quick and easy installation of plastic tubing with 8 mm outer diameter. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

Detailed information

Product detailed description

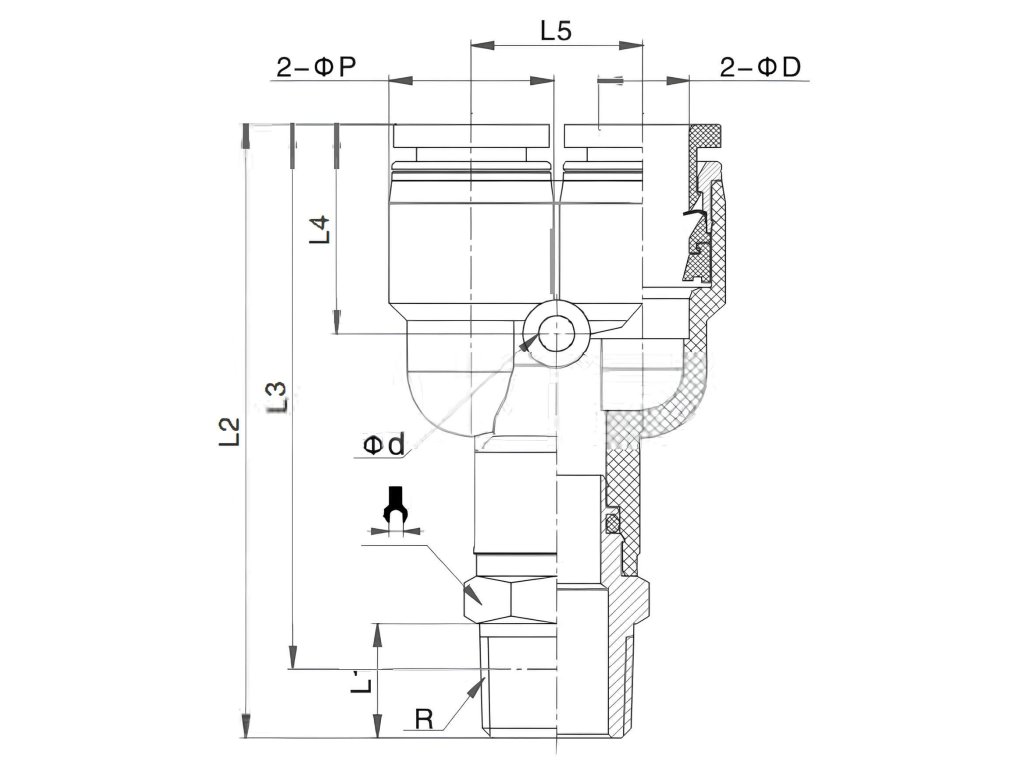

Y-fittings with external tapered thread 8 - R1/2"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	Y-coupling socket with external thread R
Pressure:	10 bars
A tube:	8 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	21
Width:	51 mm
Seals:	PTFE
Thread:	R 1/2"
Connection system:	Plug-in system
