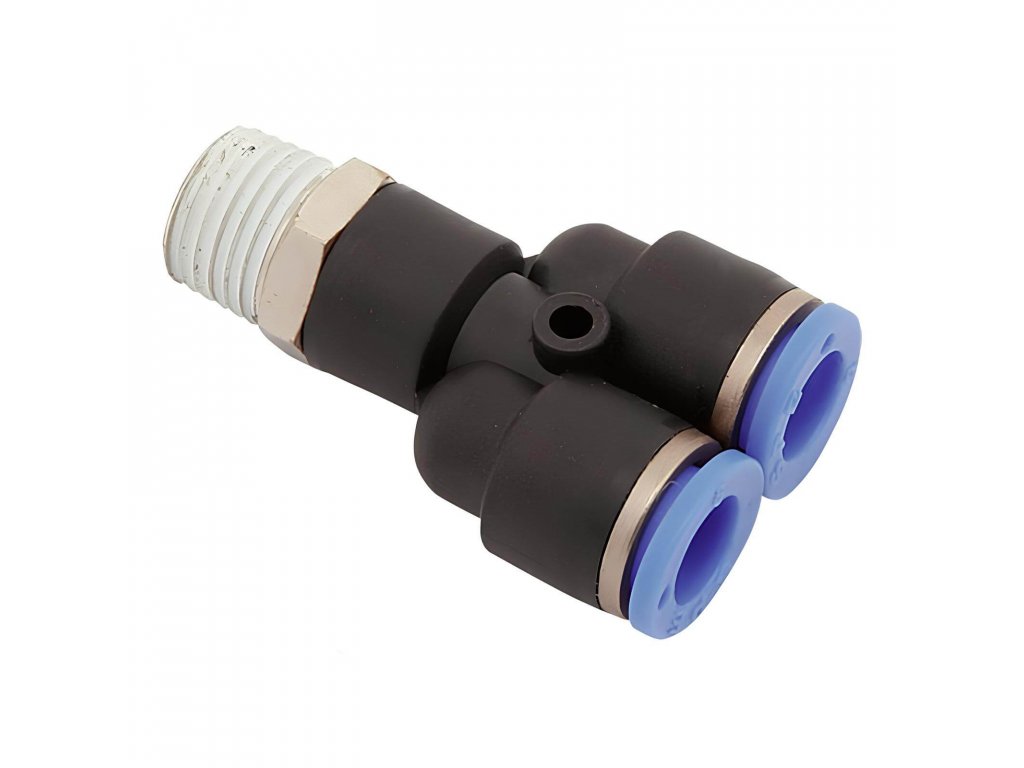

    Y-connector 4 - R1/8"

    Code: PWT-184
    Tip
    Not rated
    73 Kč –10 %
    Y-connector 4 - R1/8"
    73 Kč –10 % 65 Kč / pcs 54 Kč excl. VAT
    Stock (466 pcs)
    Delivery to:
    25.12.2024

    Swivel y-coupling with 1/8" male tapered thread for quick and easy mounting of plastic tubing with 4 mm outer diameter. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

    Detailed information

    Product detailed description

    Y-fittings with external tapered thread 4 - R1/8"
    in plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Y-coupling socket with external thread R
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Thread design: Kuželový R
    SW (key): 10
    Width: 21 mm
    Seals: PTFE
    Thread: R 1/8"
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-18TE
