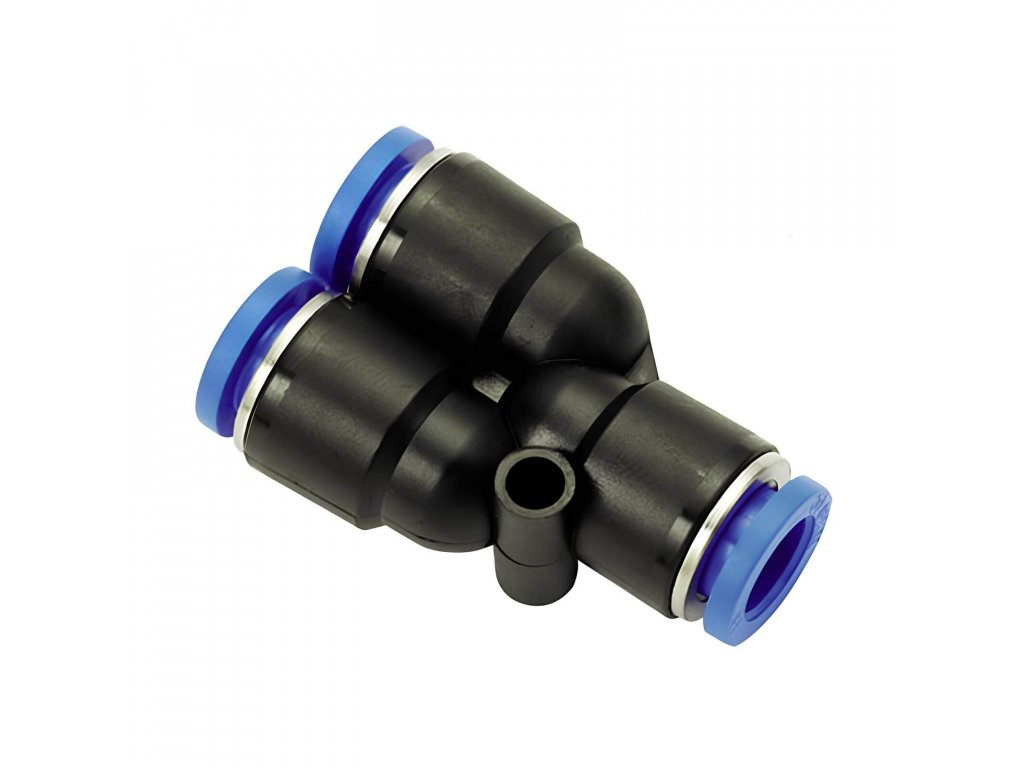

    Y-connector 4

    Code: PY-4
    Tip
    Not rated
    45 Kč –11 %
    Y-connector 4
    45 Kč –11 % 40 Kč / pcs 33 Kč excl. VAT
    Stock (159 pcs)
    Delivery to:
    20.11.2024

    Socket y-coupling for easy mounting of plastic tubing with a diameter of 4 mm. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology. Operating temperature range -10/+60 °C and pressure 10 bar.

    Detailed information

    Product detailed description

    Y-coupling in plastic for easy installation of 4 mm hose

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Plastic Y-connectors
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Width: 21 mm
    Connection system: Plug-in system
