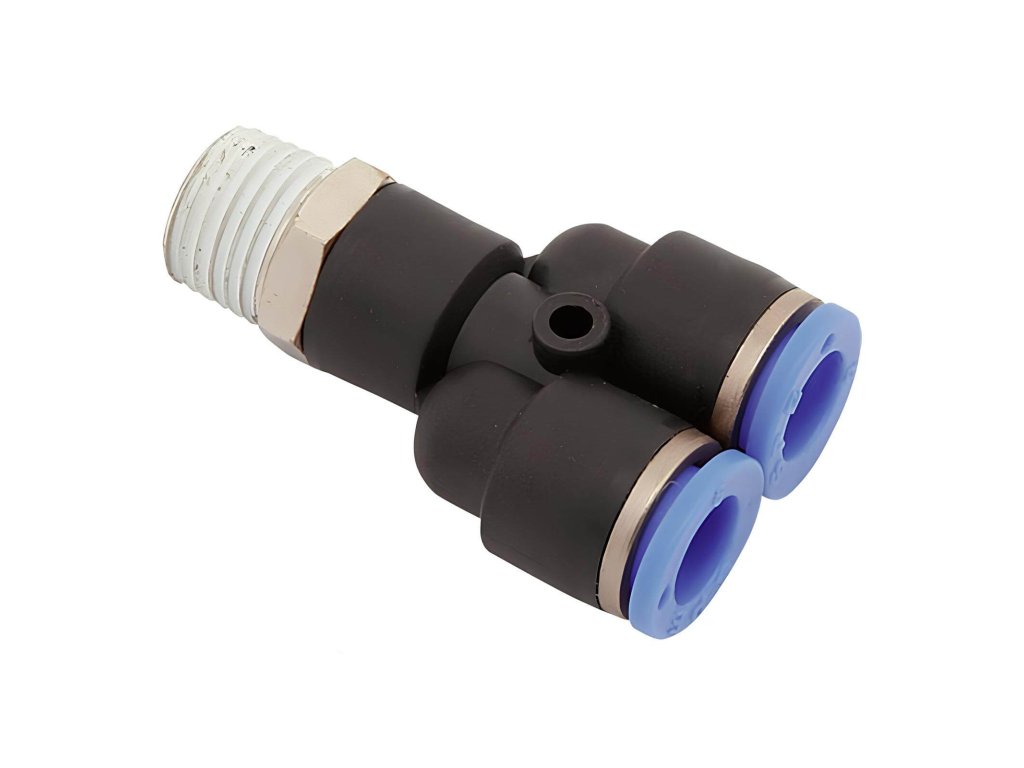

Y-coupling 12 - R3/8"

Code: PWT-3812

Tip

Not rated

Brand: Pneumatics & Hydraulics

175 Kč –10 %

175 Kč –10 % 157 Kč / pcs 130 Kč excl. VAT

(73 pcs)

Delivery to: 25.12.2024

Swivel y-coupling with 3/8" male tapered thread for quick and easy installation of plastic hoses with 12 mm outer diameter. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology. Maximum working temperature in the range -10/+60 °C and pressure 10 bar.

Detailed information

Product detailed description

Y-fittings with external tapered thread 12 - R3/8"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used: nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Additional parameters

Category:	Y-coupling socket with external thread R
Pressure:	10 bars
A tube:	12 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	19
Width:	42 mm
Seals:	PTFE
Thread:	R 3/8"
Connection system:	Plug-in system
