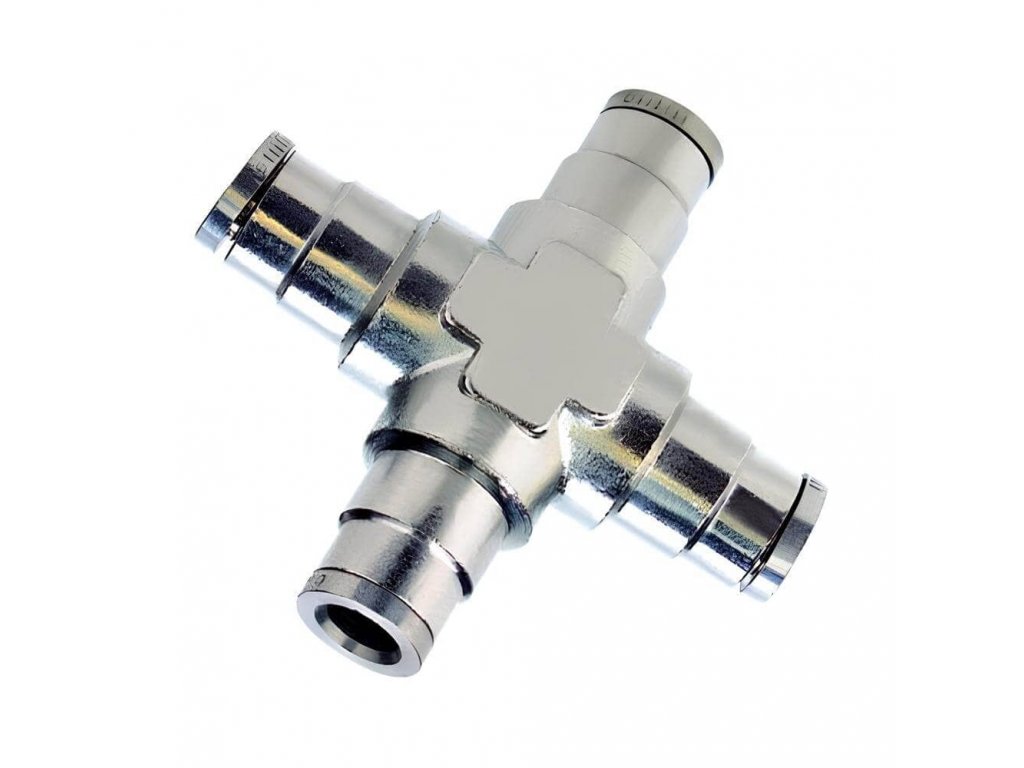

    10 mm push-in X-coupling

    Code: MPZA-10
    Not rated
    303 Kč –4 %
    10 mm push-in X-coupling
    303 Kč –4 % 288 Kč / pcs 238 Kč excl. VAT
    Stock (99 pcs)
    Delivery to:
    25.12.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

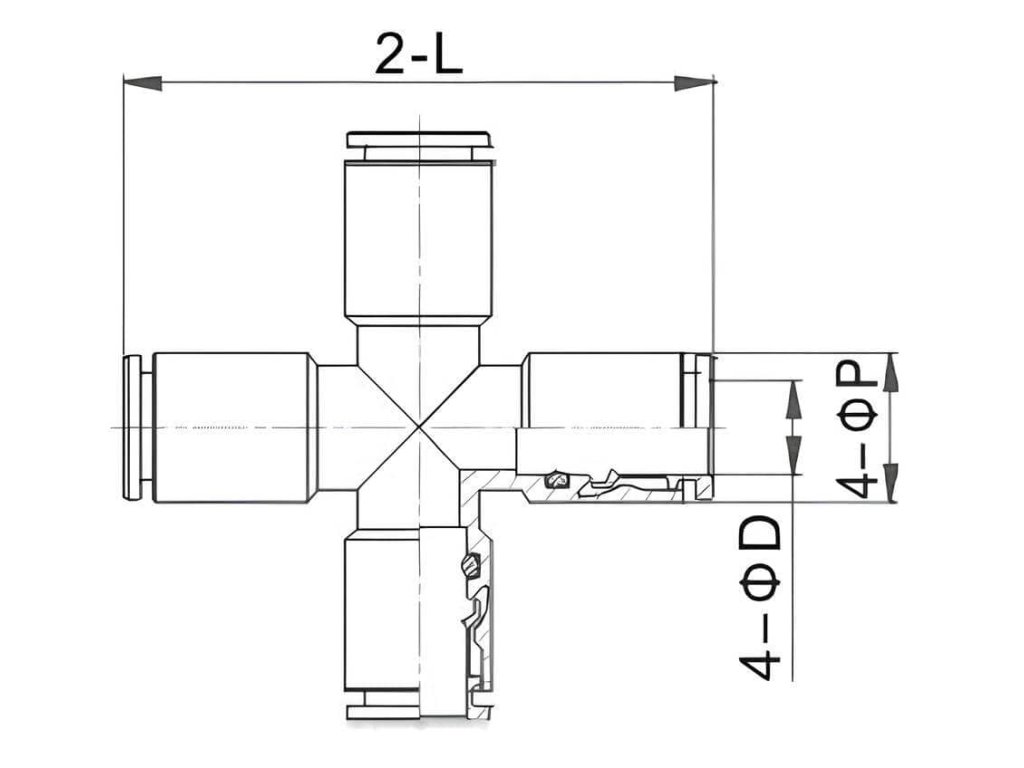

    X-shaped socket coupling 10 mm - metal socket version

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: Brass push-in X-couplings
    Pressure: 10 bars
    A tube: 10 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Connection system: Plug-in system
