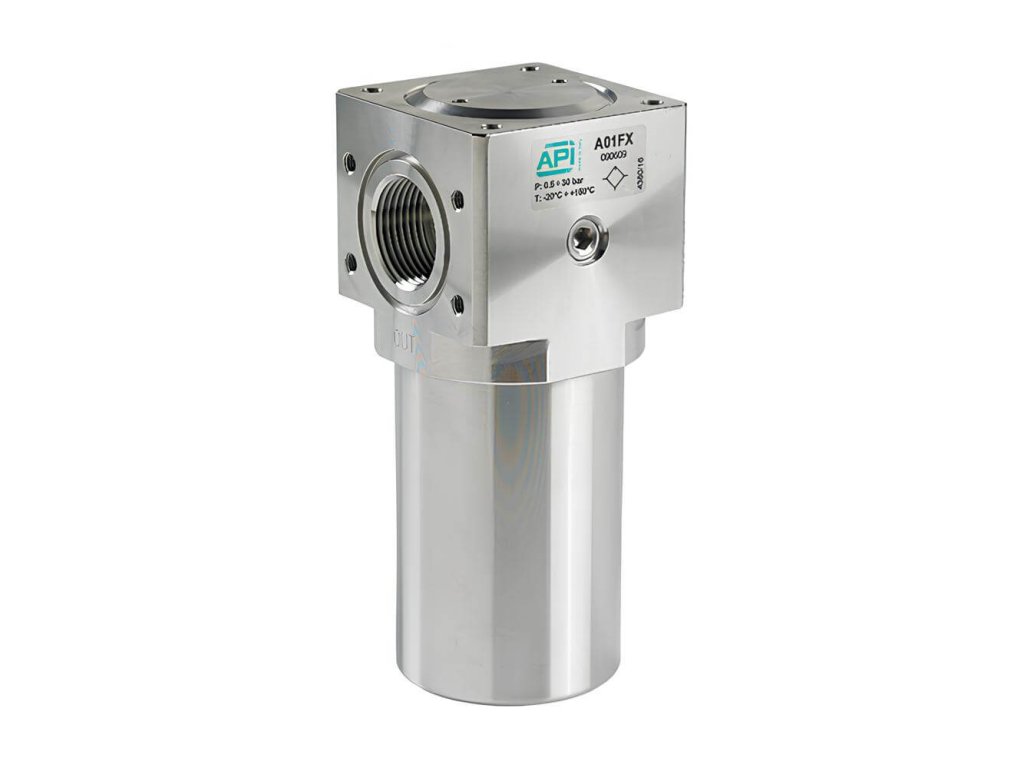

Air filter AFX10
Code: AFX10Product detailed description
Stainless air filter AFX10
- series of AISI316 stainless steel treatment units designed primarily for industrial applications in sectors such as food, chemical and petrochemical industries and laboratory environments
- light weight and compact size to save space, with excellent durability for outdoor environments
- included in delivery:
- regulators including a stainless steel manometer
- semi-automatically redundant filters with a filtration capacity of 5 μm
- stainless steel fixing angles on all devices
- operating temperature -20 °C to +150 °C; for oilers we recommend ISO VG 32 oil
Additional parameters
Category: | A1X stainless steel compressed air treatment units |
---|---|
Version: | Filter |
Pressure: | 60 bar |
Dimensions: | 75 x 75 x 222 mm |
Filtering ability: | 5 um |
Material: | AISI316 |
Medium: | Aggressive |
Replacement filter cartridge: | Insert 5 um (A2V5-10) |
Vessel volume: | 200 cc |
Condensate discharge: | Semi-automatic |
Working temperature: | -20 / 150 °C |
Flow: | 9,600 l/min |
Included in delivery: | mounting bracket |
Thread: | G 1" |
