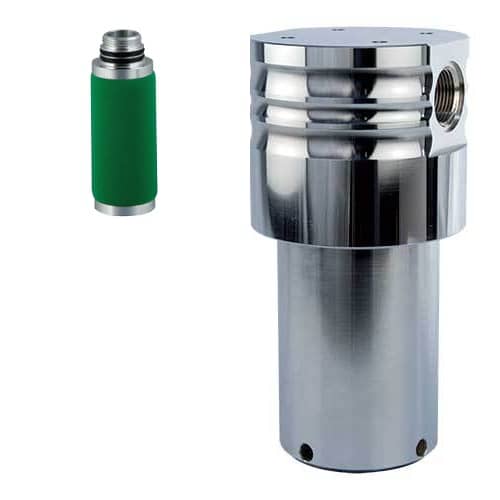

Air filters CHP4M

with working pressure up to 400 bar

microfilters for effective removal of solid impurities, odours, hydrocarbons, oil, water and vapours from compressed air
body made of carbon steel, threaded connection with internal pipe threads
operating temperature range +1.5 to +65 °C, maximum working pressure 400 bar
filter cartridge replacement intervals - 1 x per year or when the pressure gradient reaches 350 mbar; from grade A every 6 months
scope of delivery - filter body and filter cartridge, condensate drainage must be ordered separately

Compressed air pre-filter CHP4M, filtration capacity up to 0,1 um
Order No	Connection "	Pressure bar	Flow		Thread containers	Dimensions mm			Weight kg	Filtration liner
Order No	Connection "	Pressure bar	l/min	m³/h	Thread containers	and	b	c	Weight kg	Filtration liner
CHP4M-003	1/4"	400	667	40	1/2"	165	84	70	4,6	CHP4M-003V
CHP4M-005	3/8"	400	1 167	70	1/2"	165	84	70	4,6	CHP4M-005V
CHP4M-007	1/2"	400	2 167	130	1/2"	210	105	85	8,7	CHP4M-007V
CHP4M-010	3/4"	400	3 250	195	1/2"	210	105	85	9,3	CHP4M-010V
CHP4M-018	1"	400	4 583	275	1/2"	253	119	100	14,8	CHP4M-018V
CHP4M-030	1 1/4"	400	6 333	380	1/2"	253	119	100	16,0	CHP4M-030V
CHP4M-047	1 1/2"	400	8 250	495	1/2"	329	146	130	26,5	CHP4M-047V
CHP4M-094	2"	400	11 917	715	1/2"	415	182	150	49,0	CHP4M-094V
Reference flow conditions: temperature +20°C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us!
