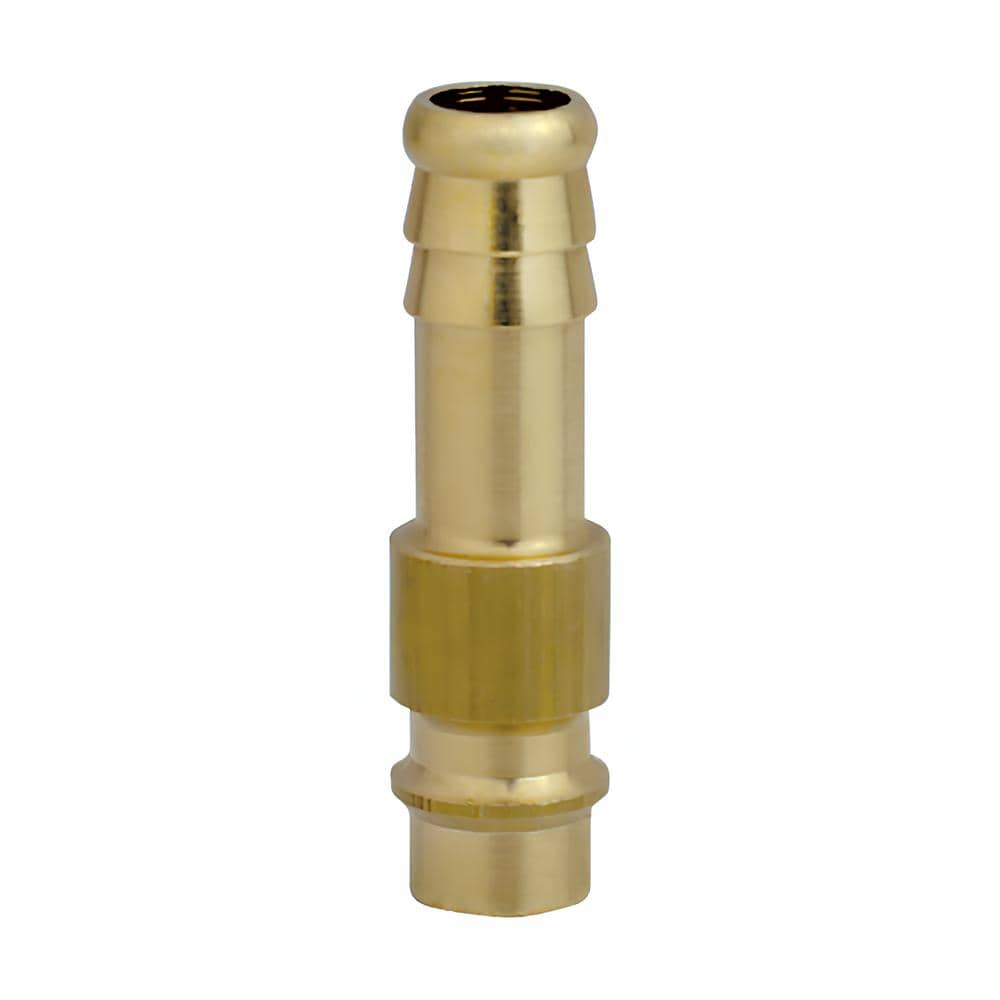

    ESX nipples with hose barb

    Vsuvka do rychlospojky ESX DN7,2 s trnem pro hadici
    • cost-effective quick coupler series in a single-sided, closable design
    • connecting parts, locking ring, valve body, valve: brass MS 58
    • springs, spacer ring, ball: stainless steel
    • seal: perbunan
    • nipples: brass MS 58
    • designed for compressed air in industry and crafts

    Nipples for quick coupling ESX with shank for hose DN 7,2
    Order
    number    		 Hose barb
    mm    		 Length
    mm    		 Mandrel length
    mm    		 Clutch length
    mm    		 Material
    ESX6S 6 mm 44 24 20 brass MS 58
    ESX8S 8 mm 44 24 20 brass MS 58
    ESX9S 9 mm 44 24 20 brass MS 58
    ESX10S 10 mm 44 24 20 brass MS 58
    ESX13S 13 mm 44 24 20 brass MS 58
