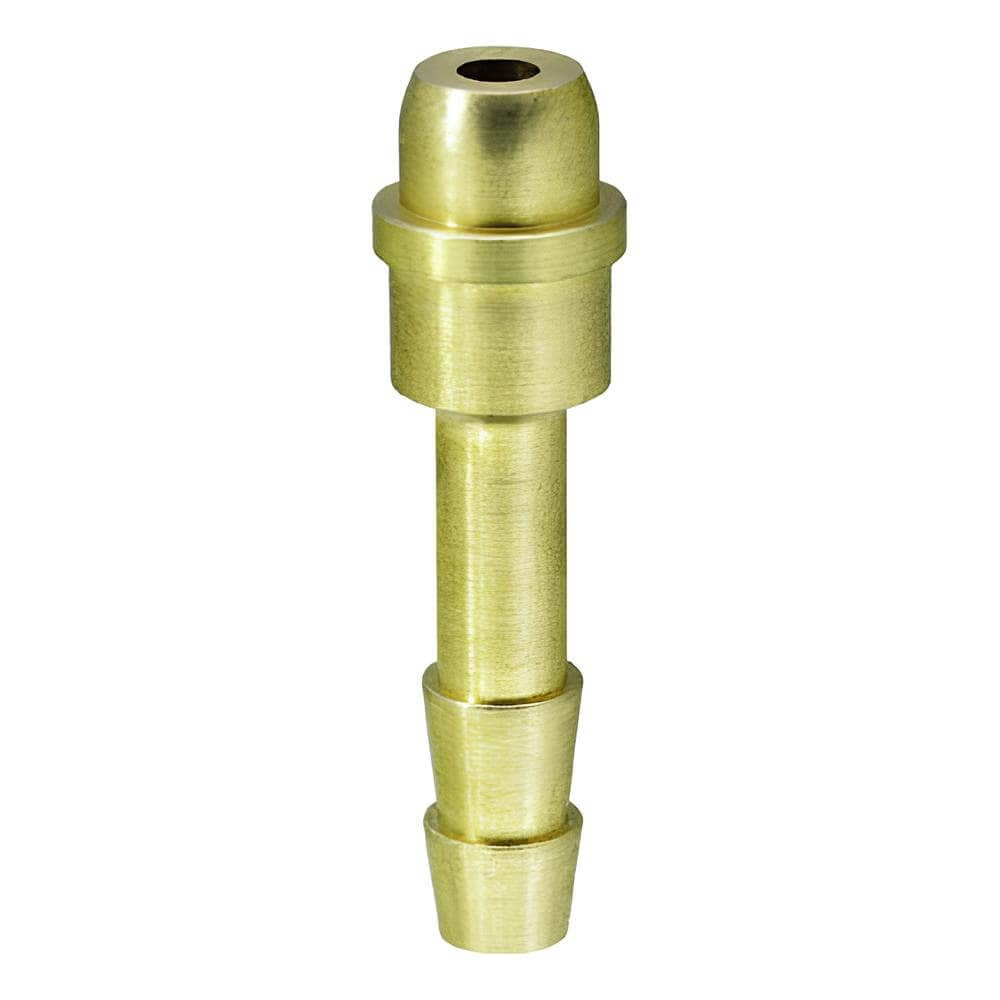

Nipples for coupling nuts with external taper
|
Nipples for coupling nuts with external cone |
||||||
Ordering number |
Hose barb mm |
For a matrix " |
Luminosity DN |
Length mm |
Mandrel length mm |
Weight g |
ST186M | 6 mm | U18M | 4 | 40 | 34 | 7 |
ST146M | 6 mm | U14M | 4 | 42 | 34 | 12 |
ST149M | 9 mm | U14M | 5,5 | 42 | 34 | 14 |
ST386M | 6 mm | U38M | 4 | 47 | 38 | 23 |
ST389M | 9 mm | U38M | 6,5 | 47 | 38 | 23 |
ST3811M | 11 mm | U38M | 7 | 47 | 38 | 30 |
ST126M | 6 mm | U12M | 4 | 47 | 38 | 32 |
ST129M | 9 mm | U12M | 6,5 | 47 | 38 | 33 |
ST1213M | 13 mm | U12M | 9 | 47 | 38 | 34 |
Bestsellers
Nipples for coupling nuts with outer taper 9mm for nut U38M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for...
Nipples for coupling nuts with outer taper 6 mm for nut U14M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed...
Nipples for coupling nuts with outer taper 9mm for nut U14M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for...
Nipples for coupling nuts with outer taper 6 mm for nut U18M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed...
Nipples for coupling nuts with outer taper 13 mm for nut U12M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed...
Nipples for coupling nuts with outer taper 6 mm for nut U38M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed...
Nipples for coupling nuts with outer taper 6 mm for nut U12M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed...
Nipples for coupling nuts with outer taper 9mm for nut U12M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed for...
Nipples for coupling nuts with outer taper 11mm for nut U38M. Made of pure brass MS 58, designed for the production of fittings. Supplied with external pipe threads. Designed...
