Nipple closing ESN-SAB mandrel for hose 10 mm
Code: ESN10SAB
Related products
Product detailed description
Nickel-plated quick coupling nipple, reversible with hose barb - ESN10SAB
- universal quick couplings in reversible design
- materials used:
- body, locking ring, valve body, valve, connecting parts: nickel-plated brass MS 58
- seal: NBR
- springs, spacer ring, quick coupling pin : Stainless steel 1.4310
- nipple: nickel-plated brass MS 58
- designed especially for universal applications for fluids in mechanical engineering, measuring, control and regulation technology
Additional parameters
| Category: | ESN-SAB Hose Nipples - double-sided |
|---|---|
| Pressure: | 35 bar |
| DN: | 7,2 |
| Material: | Nickel plated brass |
| Medium: | Various |
| Temperature: | -20/+100°C |
| Thorn on the hose: | 10 mm |

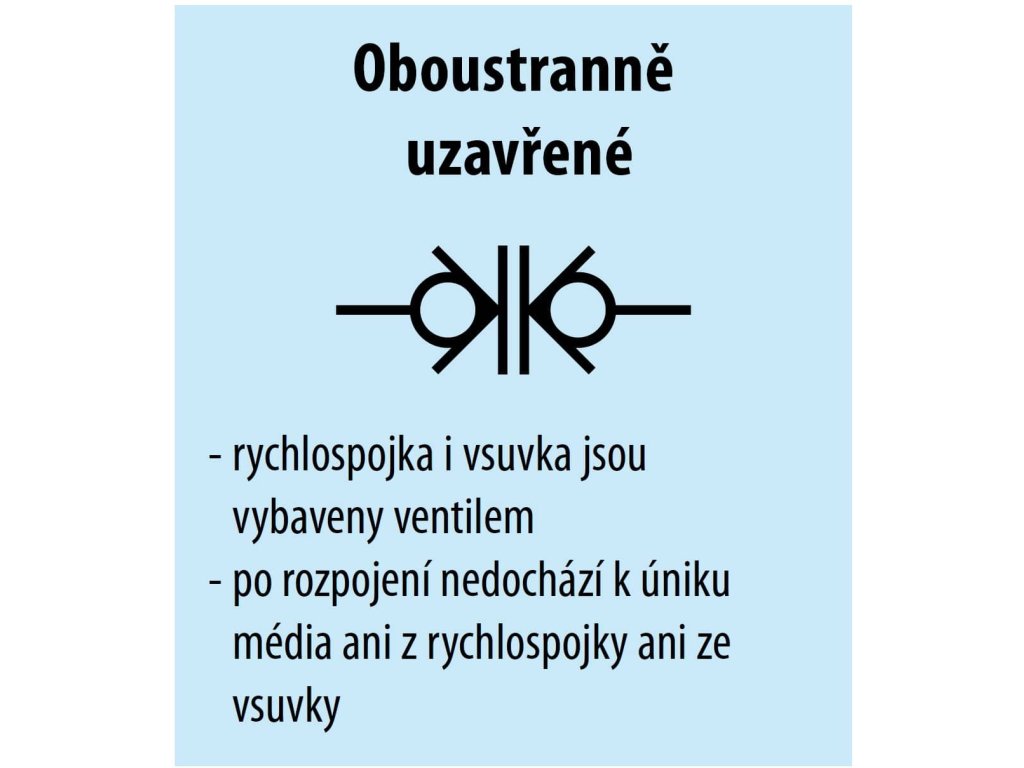

| Closure: | Closed on both sides |
| Safety ring: | No |
| Clutch profile: | EC (DN7.2) |
| Male / female: | Pacifier |
| Connection system: | Quick couplings |
