Nipple with internal thread G1/4"

Nipple with internal thread G1/4"
84 Kč –4 %
84 Kč –4 % 80 Kč / pcs 66 Kč excl. VAT 800 Kč / 10 pcs
up to 14 days
Set up a watchdog
We deliver to:
24.04.2025
Delivery offer

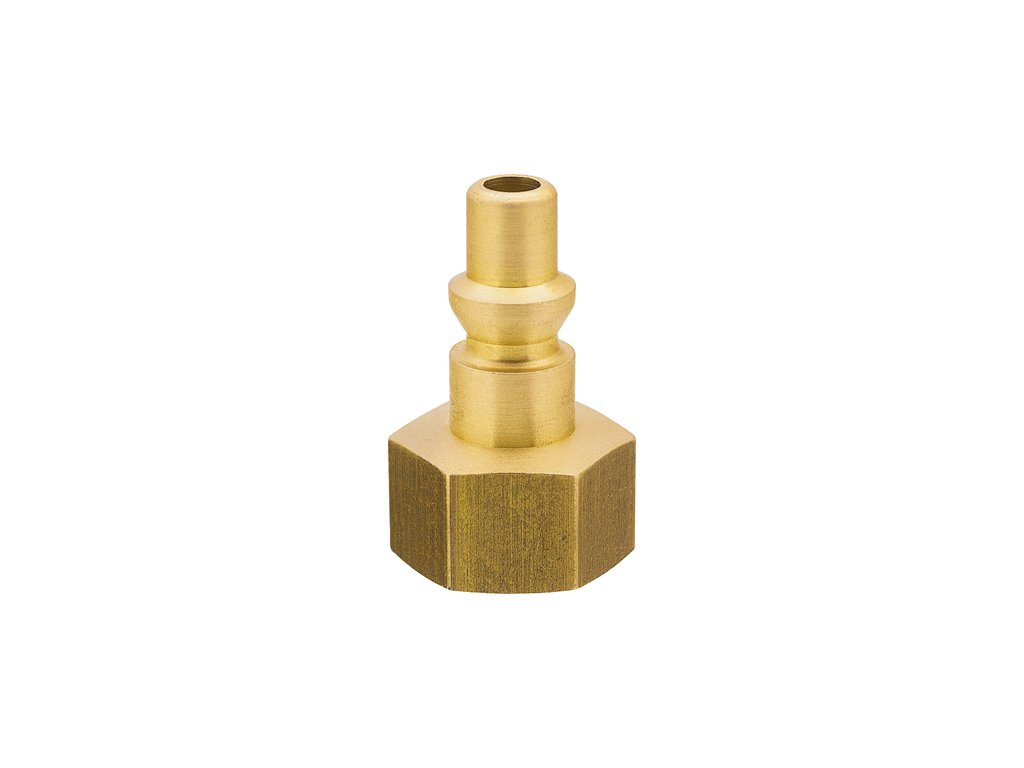

Nipple ESO with female thread G1/4" with profile for Switzerland and Benelux countries. The special shape of the mandrel allows better fitting and seating of the hoses. Interchangeable with ARO 210 and ORION 44510. Designed for compressed air supply in industry, crafts.

Detailed information

Code: ESO14NI
Brand: Lüdecke
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Female threaded socket ESO14NI

  • special contour of the mandrel for better fitting of the hose and easier assembly
  • made of brass MS 58 and stainless steel, perbunan gasket
  • interchangeable with ARO 210 and ORION 44510
  • designed for compressed air in industry, crafts, etc
Product is included in the following categories: Fasteners Quick couplings and nipples ESO quick couplings Nipples

Technical parameters

Category: ESO threaded nipples
Pressure: 35 bar (35 atm, 508 PSI, 3,5 MPa)
Clutch length: 22 mm
DN: 5,5
Material: Brass, Stainless steel
Medium: Air
Temperature: -20/+100°C
Closure: One-sided closed
Thread: G 1/4"
Safety ring: No
Clutch profile: ESO (DN5.5)
Male / female: Pacifier
Connection system: Quick couplings
