Closing nipple ES-AAB external thread G3/8"
Code: ES38NAAB
Related products
Product detailed description

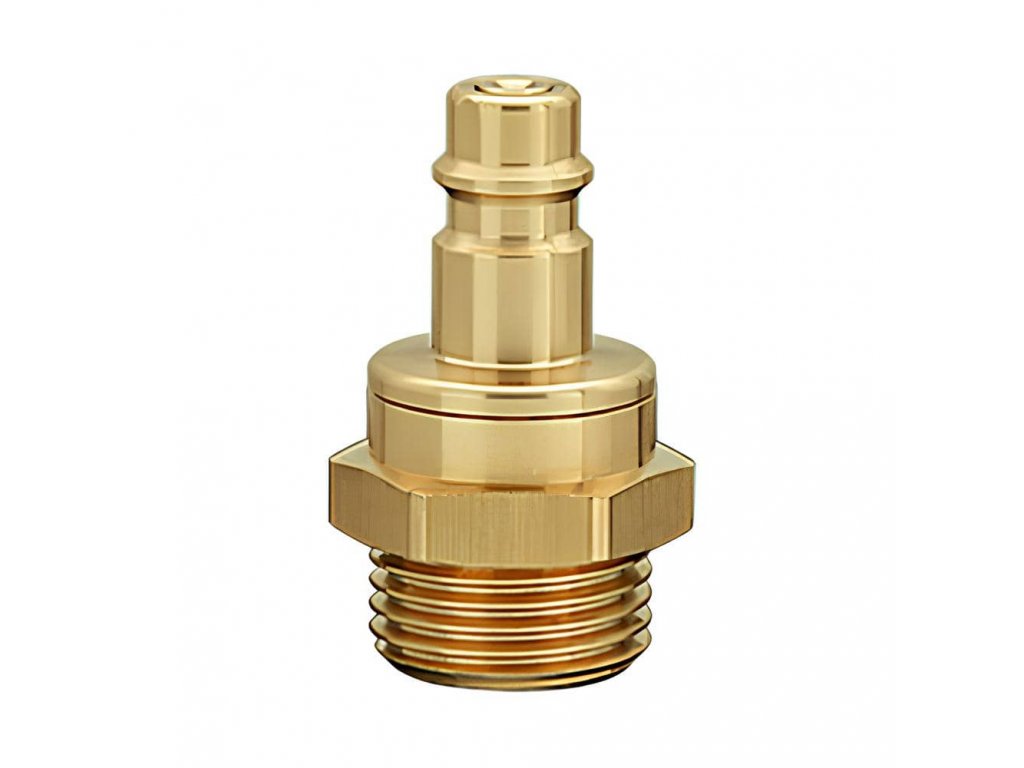

Nipple for quick coupling reversible male thread G - ES38NAAB
- universal quick couplings in reversible design
- materials used:
- body, locking ring, valve body, valve, connecting parts: brass MS 58
- seal: NBR
- springs, spacer ring, quick coupling pin : Stainless steel 1.4310
- nipple: brass MS 58
- designed especially for universal applications for fluids in mechanical engineering, measuring, control and regulation technology
Additional parameters
| Category: | Nipples ES-NAAB male thread G - double-sided |
|---|---|
| Pressure: | 35 bar |
| DN: | 7,2 |
| Material: | Brass |
| Medium: | Various |
| Temperature: | -20/+100°C |

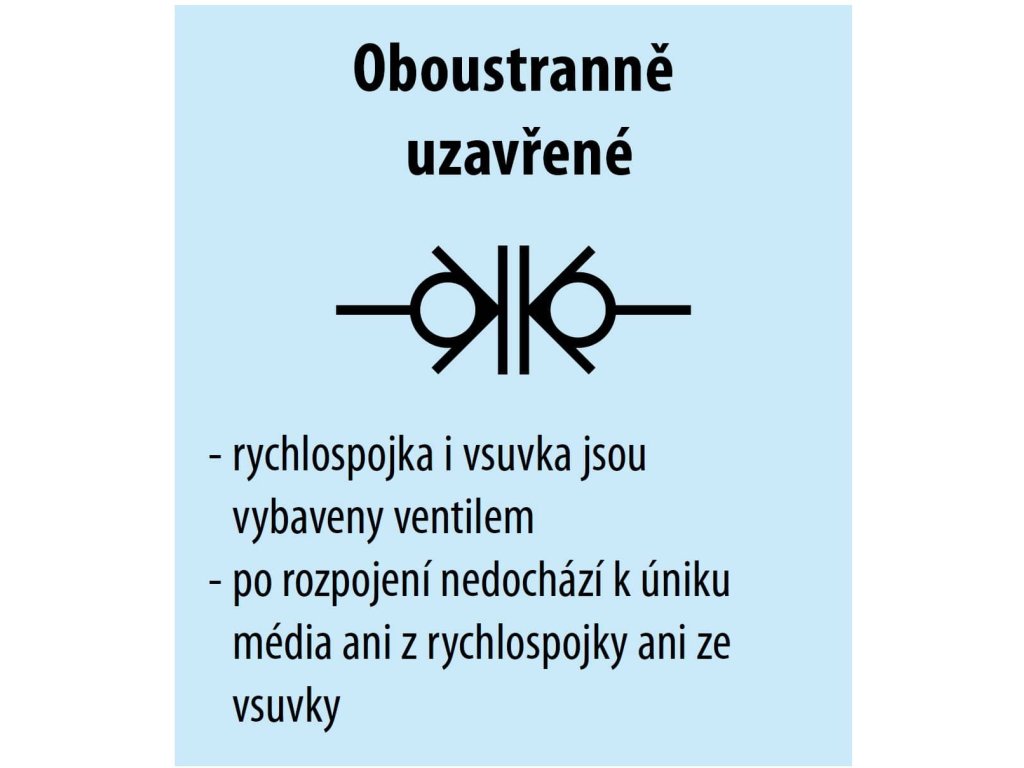

| Closure: | Closed on both sides |
| Thread: | G 3/8" |
| Safety ring: | No |
| Clutch profile: | EC (DN7.2) |
| Male / female: | Pacifier |
| Connection system: | Quick couplings |
