Vertical compressor A39-2,2-150VT příkon 2,2 kW, sací výkon 393 l/min, tlak 10 bar, vzdušník 150 l, napětí 400/50 V/Hz
Code: A39-2-2-150VTRelated products
Product detailed description

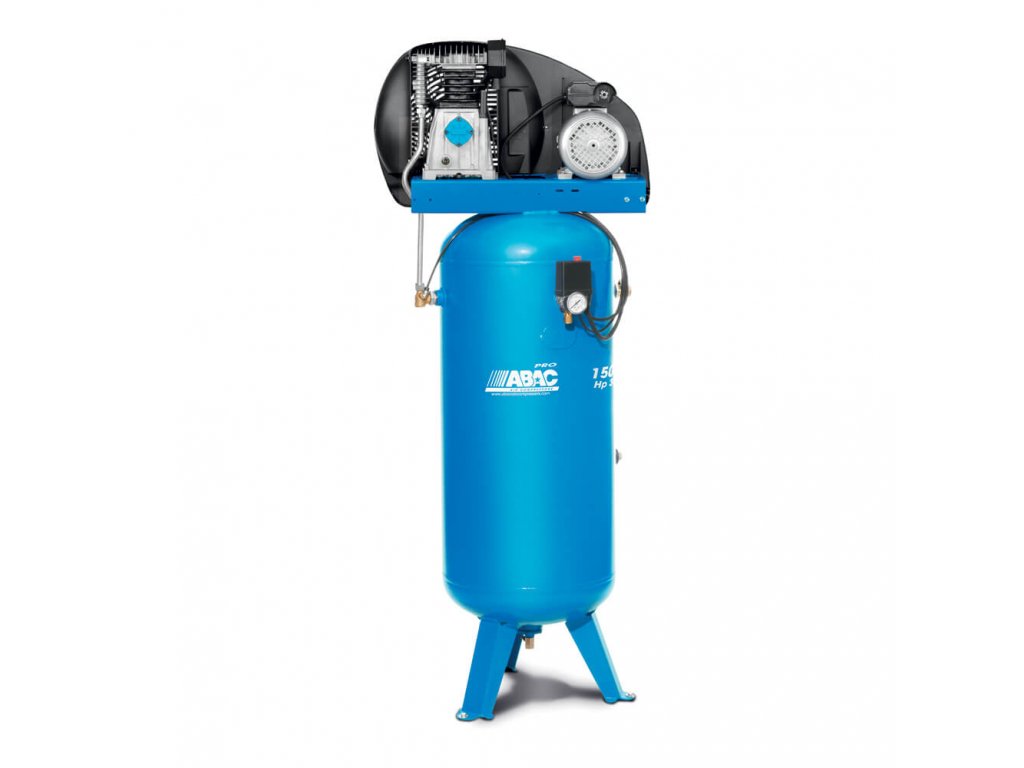

Reciprocating compressor on standing air tank - A39-2,2-150VM
The Pro Line stationary workshop compressor with standing air chamber is designed especially for space-saving applications. Thanks to the unique belt gear housing with aerodynamically shaped grooves, the outlet air temperature is reduced by up to +35°C, ensuring an extreme increase in compressor life. The compressor has the following standard equipment:
- oil reservoir equipped with oil gauge for easy reading of oil level
- automatic operation control by pressure switch
- electric motor equipped with temperature protection
- air outlet via ball valve
- pressure gauge for reading the pressure in the air tank
- 150 litre vertical air duct with ball valve for convenient condensate drainage
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | Piston vertical compressors ABAC |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 393 l/min |
| Displacement: | 283 l/min |
| Pressure vessel volume: | 150 L |
| Design of pressure vessel: | Standing |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 degree |
| Lubrication: | Oily |
| Noise: | 93 dB - Lwa, 73 dB - Lwp(4m) |
| Dimensions: | 850 x 970 x 1 950 mm |
| Weight: | 160 kg |
| Accessories: | Pressure regulator, Wheels, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
