Vacuum filter ABF G3/4"

Code: ABF-20
Tip
Brand: Airbest
2 013 Kč –5 %

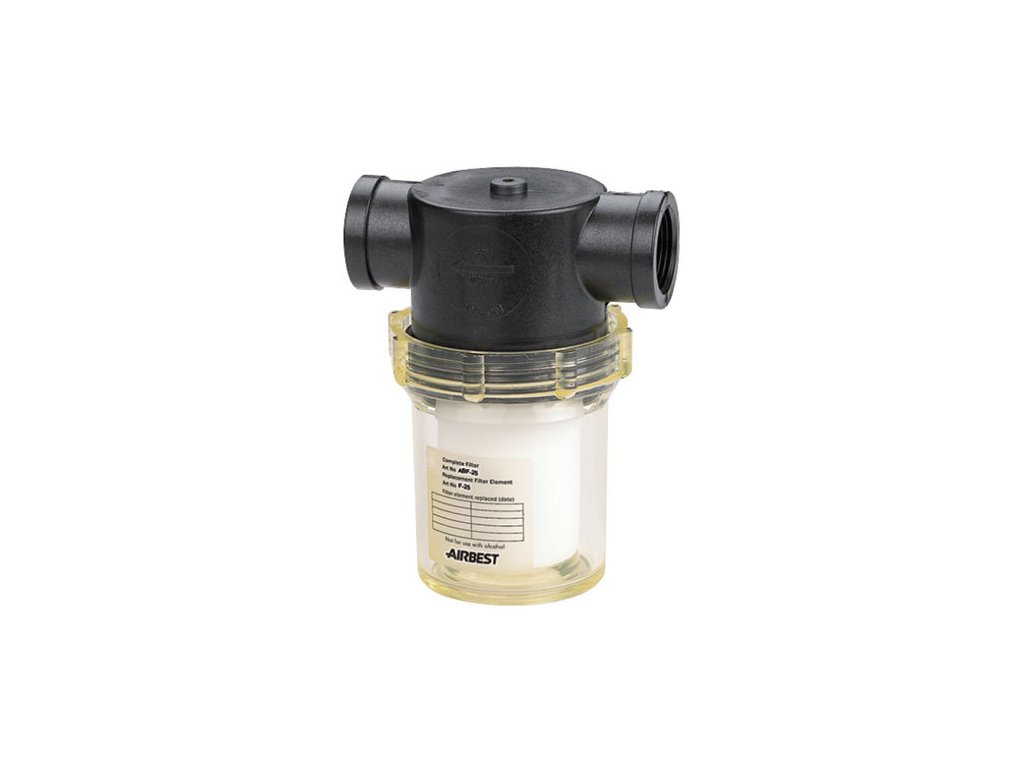

Vacuum filter ABF G3/4"
2 013 Kč –5 % 1 912 Kč / pcs 1 580 Kč excl. VAT
Stock (10 pcs)
Delivery to:
20.11.2024

ABF vacuum filter with G3/4" thread for protection of ejectors and vacuum pumps, removes dust and solid impurities from the vacuum. Filtration capacity 10 µm, working pressure -100 to 0 kPa and temperature -20 to +80°C. Interchangeable insert, threaded connection with internal threads.

Detailed information

Product detailed description

Vacuum filter ABF-20

  • primarily used to remove dust and solid impurities from the vacuum and to protect ejectors and vacuum pumps
  • threaded connection with internal threads
  • working pressure -100 to 0 kPa, working temperature -20 to +80°C
  • filtration capacity 10 µm
  • replaceable filter insert

Additional parameters

Category: ABF vacuum filters
Connecting: G3/4"
Dimensions: 91mmx139mm
Filtering ability: 10 µm
Container volume: 205 cc
Flow: 900 l/min
Tlak: -100 až 0 kPa

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
