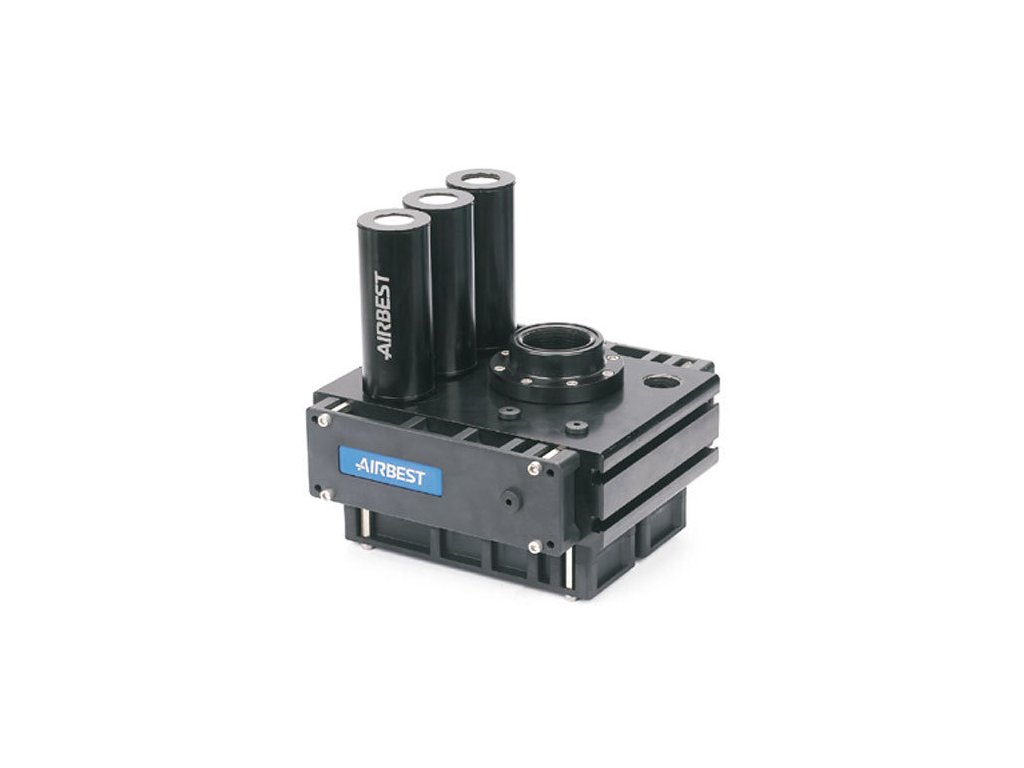

Vacuum pump AH 240 with check valve

Code: AH240M-NA
111 537 Kč –5 %
Vacuum pump AH 240 with check valve
111 537 Kč –5 % 105 960 Kč / pcs 87 570 Kč excl. VAT
up to 14 days
Delivery to:
13.01.2025
AM vacuum pump with non-return valve providing very deep vacuum. Designed to provide high vacuum production, for working with porous materials and large-scale vacuum systems. Maximum vacuum 100,5 -kPa, maximum vacuum flow 1050 l/min. Made of aluminium, NBR sealing. Supplied complete with vacuum gauge, pressure gauge, silencer and fixing angles.

Detailed information

Product detailed description

Vacuum pump AH240M-NA

  • vacuum pumps designed to produce large amounts of vacuum
  • variant AH - for very deep vacuum
  • operating temperature -20/+80°C, noise level 55-68 dB
  • supplied with vacuum gauge, pressure gauge, silencer and fixing angles

Additional parameters

Category: Vacuum pumps AL - AM - AH
Max. vacuum: -100.5 kPa
Vacuum flow: 1050 l/min
Exhaust connection: 2 x 1"
Vacuum connection: 1 1/2"
Air connection: 3/4"
Spotřeba vzduch: 960 l/min

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:
airbest-provozovna

Airbest Develops and Innovates

The main production item of the Chinese company Airbest consists of components and products in the field of vacuum technology. This enterprise combines technological research and subsequent development of components, applied mainly in the automation industry and industrial robotics. In its production process, Airbest strives to focus primarily on customer requirements while not forgetting the most modern technological procedures, prioritizing safety, efficiency, and environmental friendliness. The company was established in 2006 and is gaining increasing recognition in the market, as evidenced by several honorary certificates displayed on Airbest's official website.

German Quality and Chinese Affordability

The greatest advantage of Airbest products is their high compatibility and usability as replacement parts for products of other brands, such as PIAB, SMC, PARKER, SCHMALZ, and other vacuum technology manufacturers. The components maintain their quality, largely due to the collaboration with the German manufacturer of linear drives, MEDAN GmbH. Combined with China's ability for low-cost production, these products come with a very reasonable price tag. A detailed catalog with drawings and data is available if needed.

Airbest - továrna

The Airbest company program consists of these basic product groups:

  • ejectors and vacuum pumps
  • vacuum filtration devices
  • suction cups
  • fittings for suction cups
  • vacuum valves and vacuum switches
