    Shut-off valve with ventilation 6 - 8

    Code: HVFF-6-8
    Not rated
    206 Kč –9 %
    Shut-off valve with ventilation 6 - 8
    206 Kč –9 % 186 Kč / pcs 154 Kč excl. VAT
    Stock (99 pcs)
    Delivery to:
    25.12.2024

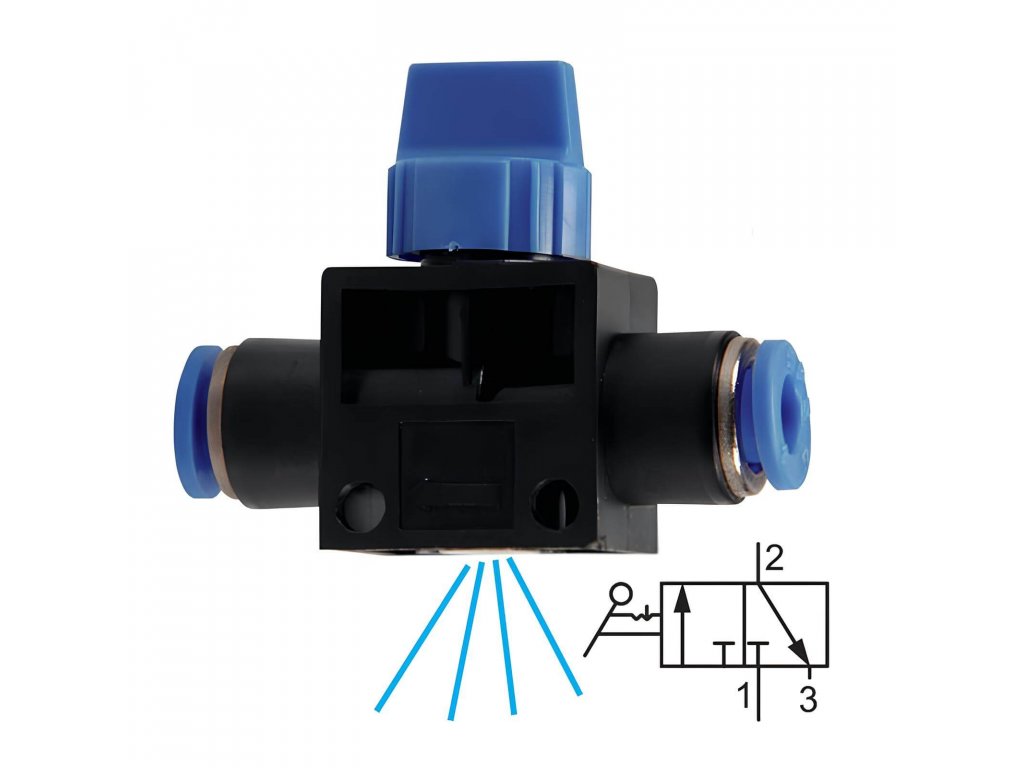

    Shut-off valve with post-closure vent for quick installation of 6 and 8 mm plastic tubing. Designed especially for measuring and control technology, automation and pneumatic compressed air distribution in industry and engineering.

    Detailed information

    Product detailed description

    Compressed air shut-off valve with vent 6 - 8 mm
    plastic design

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Shut-off socket plastic valve with vent
    Pressure: 10 bars
    A tube: 8 mm
    Tube 2: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Width: 45 mm
    Connection system: Plug-in system
